BOSCH LR1 Red-Beam Rotary Laser Receiver Instruction Manual

Product Overview

The Bosch LR1 laser receiver is designed to enhance the detection range of rotary lasers, extending it up to 650 feet. It provides precise measurements with an accuracy of +/-1 mm (fine) or +/-3 mm (coarse). The unit features a dual-sided LCD display for convenient viewing from various angles and a selectable audio signal to indicate on-grade position. Integrated heavy-duty magnets allow for secure attachment to metal surfaces, facilitating use at greater distances. This receiver is compatible with Bosch GRL 300 HVG Rotary Lasers.

What's in the Box

Upon opening the package, you will find the following components:

• Bosch LR1 Laser Receiver
• Mounting Bracket
• 9V Battery (1 included)
• Belt Pouch
• User Manual (this document)

Image: The Bosch LR1 laser receiver, its mounting bracket, and the included 9V battery, laid out on a metal surface.

Setup

Battery Installation

The Bosch LR1 receiver operates on a 9V battery, which is included. To install the battery:

1. Locate the battery compartment on the rear of the LR1 receiver.
2. Open the battery compartment cover.
3. Insert the 9V battery, ensuring correct polarity (+ and - terminals).
4. Close the battery compartment cover securely.

Image: Close-up of the back of the Bosch LR1 receiver, highlighting the battery compartment and product labels.

Attaching the Mounting Bracket

The included mounting bracket allows for secure attachment of the LR1 receiver to grade rods or other suitable surfaces.

1. Align the receiver with the mounting bracket. The receiver has a slot on its side designed to slide into the bracket.
2. Slide the receiver firmly into the bracket until it clicks into place.
3. Use the knob on the mounting bracket to tighten it onto a grade rod or other desired surface.

Image: The Bosch LR1 laser receiver shown with its mounting bracket attached, ready for use on a grade rod.

Operating Instructions

Powering On/Off

Press the red power button on the front of the LR1 receiver to turn the unit on or off.

Image: The front of the Bosch LR1 laser receiver, displaying the LCD screen, control buttons, and detection window.

Laser Detection and Accuracy Modes

The LR1 receiver is designed to detect red-beam rotary lasers. When a laser beam hits the detection area, the dual-sided LCD display will show arrows indicating whether the receiver needs to move up or down to reach the on-grade position. Once on-grade, a solid line will appear on the display.

You can adjust the accuracy setting between a fine accuracy of 1/8 inch and a coarse accuracy of 1/32 inch using the dedicated button on the receiver. This allows for flexibility depending on the precision required for your task.

Image: A person using the Bosch LR1 receiver attached to a grade rod to check the level of a wooden fence post in an outdoor setting.

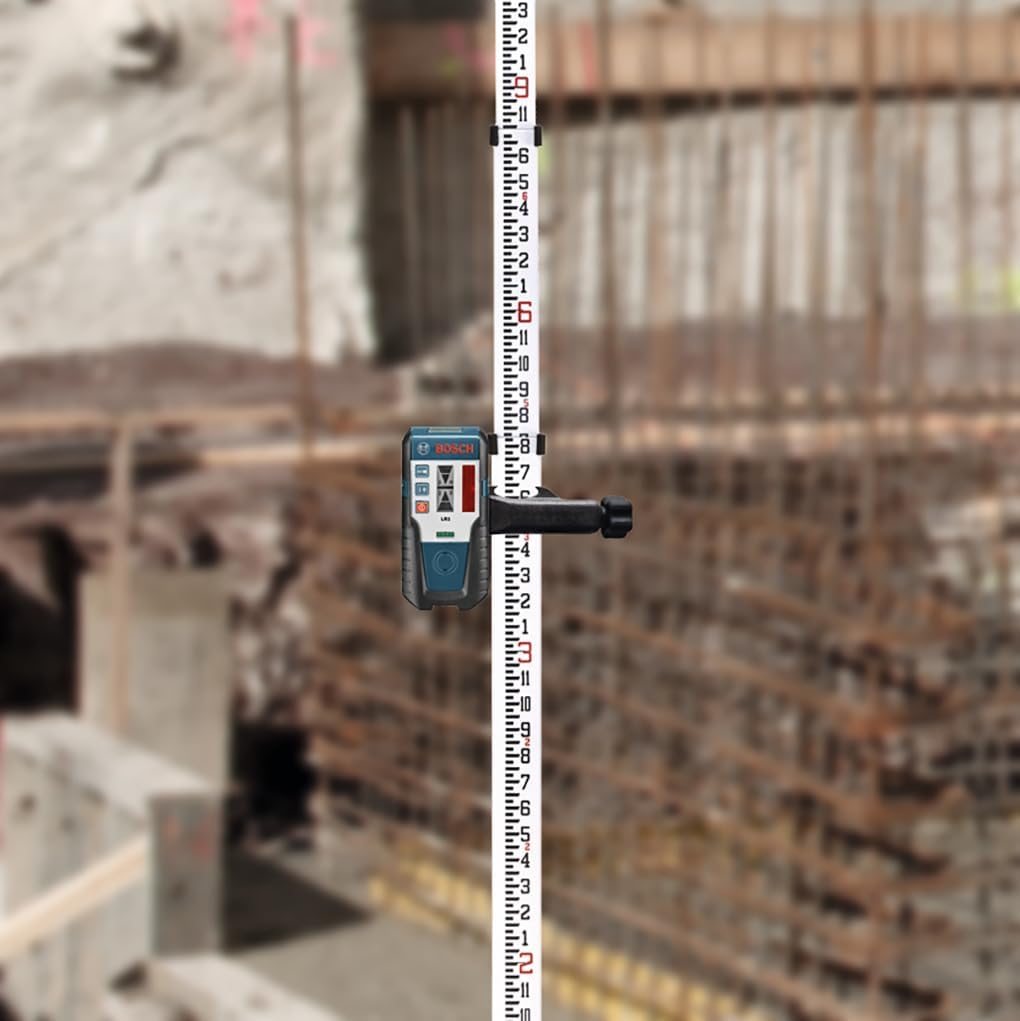

Image: A close-up view of the Bosch LR1 receiver mounted on a grade rod, with its digital display indicating the laser's position.

Audio Signal

The LR1 receiver provides an audible signal to assist in finding the on-grade position. The beeping pattern changes as you approach the laser beam, becoming a steady tone when the receiver is perfectly on-grade. You can toggle the audio signal on or off using the speaker button on the receiver.

Image: A Bosch LR1 receiver being used with a rotary laser level on a construction site, demonstrating its application in large-scale leveling tasks.

Image: Two construction workers utilizing a Bosch rotary laser and the LR1 receiver to ensure precise leveling during a concrete foundation pour.

Maintenance

To ensure the longevity and optimal performance of your Bosch LR1 laser receiver, follow these maintenance guidelines:

• Cleaning: Regularly wipe the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep the detection window clean and free of dust or debris.
• Storage: Store the receiver in its belt pouch or a protective case when not in use. Avoid storing it in extreme temperatures or high humidity.
• Battery Care: Remove the 9V battery if the unit will not be used for an extended period to prevent battery leakage and potential damage to the electronics.
• Inspection: Periodically inspect the unit for any signs of damage, such as cracks in the casing or loose components.

Troubleshooting

If you encounter issues with your Bosch LR1 receiver, consider the following common troubleshooting steps:

• No Power:
  • Check if the 9V battery is correctly installed with proper polarity.
  • Replace the battery with a fresh one if it is depleted.
• No Laser Detection:
  • Ensure the rotary laser is powered on and emitting a beam.
  • Verify that the laser is a red-beam rotary laser compatible with the LR1.
  • Check that the receiver's detection window is clean and unobstructed.
  • Ensure the receiver is within the operating range (up to 650 ft) of the laser.
  • Confirm the laser is in pulsing mode if required by the receiver.
• Inaccurate Readings:
  • Ensure the receiver is held steady and perpendicular to the laser beam.
  • Check the accuracy setting (1/8" or 1/32") and adjust as needed for your task.
• No Audio Signal:
  • Press the speaker button to ensure the audio signal is enabled.

For persistent issues, refer to the detailed user manual (PDF) or contact Bosch customer support.

Specifications

Warranty and Support

Warranty Information

Bosch measuring and layout tools, including the LR1 receiver, are covered by a one-year limited warranty. An additional year of coverage is available when you register your tool within eight weeks of purchase. For complete details regarding the warranty, please visit the official Bosch website or contact customer support.

Image: Graphic illustrating Bosch's 1-year limited warranty with an additional 1 year upon product registration.

Customer Support

For technical assistance, product inquiries, or warranty claims, please contact Bosch customer support:

• Phone: 1-877-BOSCH99
• Online User Manual: Download PDF Manual
