1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Caleffi 520440 Adjustable Thermostatic Mixing Valve. The 520 series mixing valves are designed for use in systems that produce hot water for sanitary purposes, typically with a water heater. Their primary function is to maintain a preset temperature for the mixed water supplied to the user, ensuring stability despite variations in the temperature of the stored hot water.
Please read these instructions carefully before installation and use to ensure safe and efficient operation of the device.
2. Product Overview
Key Features
- Adjustable thermostatic mixing valve
- Brass body construction
- Chrome plated finish
- Maximum operating pressure: 10 bar
- Maximum inlet temperature: 90 °C
Internal Mechanism

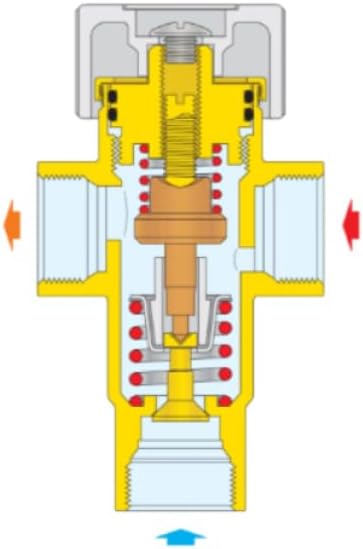

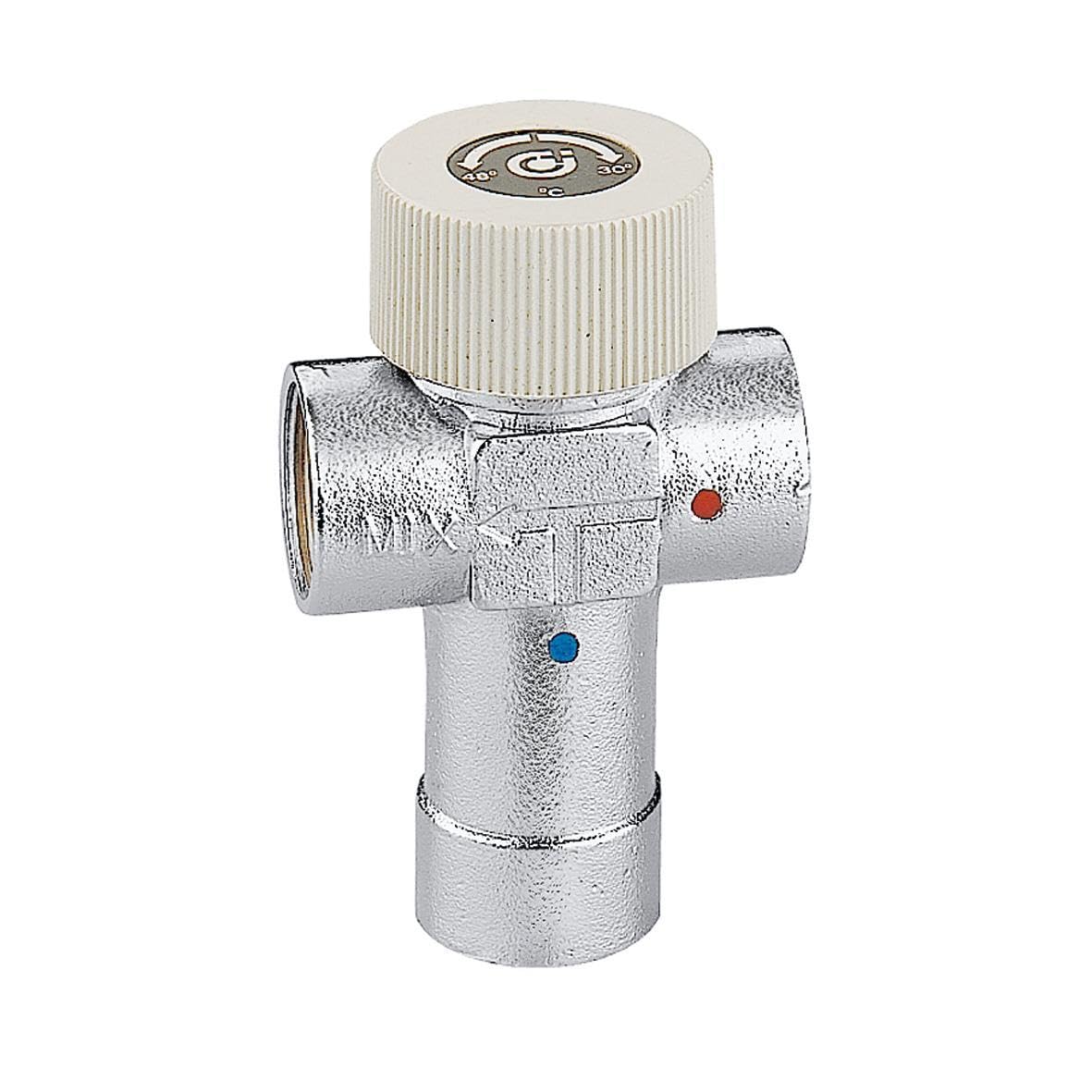

Figure 1: Internal diagram of the Caleffi 520440 thermostatic mixing valve. The blue arrow indicates cold water inlet, the red arrow indicates hot water inlet, and the orange arrow indicates mixed water outlet. The internal components include a thermostatic element that adjusts the mixing ratio to maintain a constant outlet temperature.
3. Setup and Installation
Installation of the Caleffi 520440 thermostatic mixing valve should be performed by a qualified professional in accordance with local plumbing codes and regulations. Ensure the main water supply is turned off before beginning installation.
Connection Points
- Identify the hot water inlet, cold water inlet, and mixed water outlet ports on the valve. Refer to Figure 1 for visual guidance on flow direction.
- The valve features 1/2 inch connections (FNPT or MNPT type). Ensure compatible fittings are used.
Mounting
Mount the valve in an accessible location to allow for future adjustments and maintenance. Ensure the valve is securely fastened and properly aligned with the plumbing lines.
Dimensions
Figure 2: Dimensional drawing of the Caleffi 520440 thermostatic mixing valve. The table below the diagram provides specific measurements for different codes (520, 5205, 5206) including connection size (A), width (B), height (C), and depth (D), along with weight.
Refer to Figure 2 and the specifications table for detailed dimensions to ensure proper fit and clearance during installation.
4. Operating Instructions
The Caleffi 520440 thermostatic mixing valve automatically blends hot and cold water to deliver water at a constant, desired temperature, typically within a range of 40-60 °C.
Temperature Adjustment
The valve is adjustable to set the desired mixed water temperature. To adjust the temperature, locate the adjustment mechanism, usually a screw or knob on the top of the valve (as indicated in Figure 1). Turn the adjustment mechanism slowly and test the water temperature at a nearby tap until the desired temperature is achieved. Always exercise caution when adjusting hot water temperatures to prevent scalding.
Once set, the valve will maintain this temperature, compensating for fluctuations in the incoming hot and cold water supplies.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your thermostatic mixing valve. It is recommended to have the valve inspected periodically by a qualified plumber.
Routine Checks
- Visually inspect the valve and connections for any signs of leaks or corrosion.
- Periodically verify the mixed water temperature to ensure it remains consistent with the set point.
Cleaning
In areas with hard water, mineral deposits may accumulate over time, potentially affecting valve performance. If temperature fluctuations or reduced flow are observed, professional cleaning or descaling of the internal components may be necessary. This should only be performed by a qualified technician.
6. Troubleshooting
This section addresses common issues you might encounter with your thermostatic mixing valve.
| Problem | Possible Cause | Solution |
|---|---|---|
| Inconsistent mixed water temperature | Fluctuations in hot/cold supply pressure; mineral buildup; faulty thermostatic element. | Check supply pressures. Clean or descale valve (professional service recommended). Replace valve if element is faulty. |
| No hot water from mixed outlet | No hot water supply; valve stuck in cold position. | Verify hot water supply to the valve. Inspect/service valve for blockages or malfunction. |
| Reduced water flow | Blockage in pipes or valve; low supply pressure. | Check water supply pressure. Inspect for blockages in plumbing or valve. Professional cleaning may be required. |
If problems persist after attempting these solutions, contact a qualified plumber or Caleffi customer support for assistance.
7. Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Caleffi |
| Model Number | 520440 |
| Product Dimensions (L x W x H) | 9.6 x 4.5 x 5.6 cm |
| Weight | 3 kg (6.61 lbs) |
| Material | Brass |
| Exterior Finish | Brass (Chrome plated) |
| Quantity of Items | 1 |
| Maximum Operating Pressure | 10 bar |
| Maximum Inlet Temperature | 90 °C |
| Adjustable Temperature Range | 40-60 °C |
| Number of Ports | 3 |
| Inlet Connection Size | 1/2 inch (4.5 cm) |
| Inlet Connection Type | FNPT or MNPT |
| Outlet Connection Type | FNPT or MNPT |
| Certification | NF EN 13201 |
| Batteries Required | No |
| Availability of Spare Parts | Information unavailable |
8. Warranty and Support
Specific warranty information for the Caleffi 520440 Thermostatic Mixing Valve is not provided in the product data. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact Caleffi directly.
Customer Support
For technical assistance, troubleshooting beyond this manual, or inquiries about spare parts, please contact Caleffi customer support or your authorized dealer. Ensure you have your product model number (520440) available when seeking support.
