1. Introduction
Welcome to the world of authentic Italian coffee with your new De'Longhi Magnifica S ECAM21.117.SB Bean To Cup Coffee Machine. This fully automatic machine is designed to bring the barista experience into your home, offering a compact design, intuitive control panel, and the ability to prepare a variety of coffee beverages, from rich espresso to creamy cappuccino. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.
Image: Front view of the De'Longhi Magnifica S ECAM21.117.SB coffee machine, showcasing its silver and black design with the control panel and steam wand.
2. Safety Instructions
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your mains voltage.
- Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep the appliance and its cord out of reach of children.
- Always unplug the appliance from the mains supply before cleaning and when not in use.
- Use only original spare parts and accessories recommended by the manufacturer.
- Beware of hot surfaces and steam during operation.
3. Product Components
Familiarize yourself with the main parts of your De'Longhi Magnifica S coffee machine:
- Control Panel: Features direct selection buttons for one and two cups, and frothing/steam.
- Coffee Bean Hopper: Located at the top, for whole coffee beans.
- Water Tank: Removable, with a capacity of 1.8 liters.
- Milk Frothing Nozzle (Steam Wand): For preparing cappuccino or latte macchiato.
- Drip Tray: Removable for easy cleaning.
- Ground Coffee Funnel: For pre-ground coffee.
- Brewing Group: Removable for easy cleaning and maintenance.
Image: Detailed view of the control panel, showing buttons for power, coffee strength, cup size, and steam function.
Image: View of the removable water tank located on the side of the coffee machine.

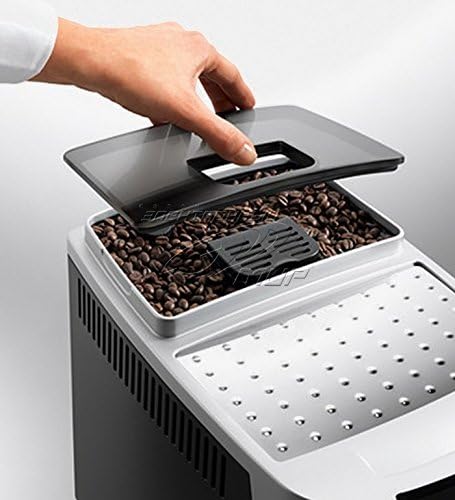

Image: Top view of the coffee machine with the lid removed, showing the coffee bean hopper.
4. Setup
- Unpacking: Carefully remove the machine from its packaging. Remove all packing materials.
- Positioning: Place the machine on a stable, level surface, away from water splashes and heat sources. Ensure adequate space around the machine for ventilation.
- Water Tank Filling: Remove the water tank, rinse it, and fill it with fresh, cold drinking water up to the MAX level. Reinsert the tank firmly.
- Coffee Bean Filling: Open the lid of the coffee bean hopper and pour fresh coffee beans into it. Do not fill above the MAX level.
- Initial Circuit Rinse: Plug the machine into a grounded power outlet. Turn on the machine. The machine will perform an automatic rinse cycle. Place a container under the coffee spouts to collect the water.
- Water Hardness Setting: It is recommended to set the water hardness according to your local water supply for optimal performance and descaling reminders. Refer to the detailed instructions in the full manual for this procedure.
5. Operating Instructions
5.1 Making Espresso/Coffee
- Ensure the water tank is filled and the bean hopper contains coffee beans.
- Place one or two cups under the coffee spouts.
- Select your desired coffee strength using the aroma selector dial on the control panel (Min to Max).
- Press the "1-cup" or "2-cup" button for your preferred quantity. The machine will grind the beans, brew, and dispense the coffee.
- To use pre-ground coffee, press the pre-ground coffee button, then add one scoop of pre-ground coffee into the funnel before pressing the 1-cup or 2-cup button.
5.2 Milk Frothing (for Cappuccino/Latte Macchiato)
- Prepare your espresso first.
- Fill a jug with cold milk (preferably semi-skimmed) to about one-third full.
- Press the "Steam" button. The indicator light will illuminate when the machine is ready to produce steam.
- Immerse the steam wand into the milk, just below the surface.
- Turn the steam dial counter-clockwise to release steam. Move the jug up and down gently to create foam.
- Once desired foam is achieved, turn the steam dial clockwise to stop steam, then press the "Steam" button again to exit steam mode.
- Pour the frothed milk over your espresso.
- Immediately clean the steam wand after use by wiping it with a damp cloth and purging a small amount of steam into a cup.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your coffee machine.
- Drip Tray and Grounds Container: Empty and clean daily. The machine will indicate when the grounds container needs emptying.
- Water Tank: Rinse daily and refill with fresh water.
- Brewing Group: The brewing group is removable for easy cleaning. Remove it weekly, rinse under running water, and allow to air dry before reinserting.
- Coffee Spouts: Clean regularly with a damp cloth.
- Descaling: The machine will indicate when descaling is required. Use a De'Longhi descaler solution and follow the instructions provided with the descaler. Descaling is crucial for maintaining machine performance and coffee quality.
- Milk Frothing Nozzle: After each use, wipe the nozzle with a damp cloth. Periodically, disassemble and clean thoroughly to prevent milk residue buildup.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee is not hot enough. | Cups are cold; machine not preheated; descaling needed. | Preheat cups with hot water; run a rinse cycle; descale the machine. |
| Coffee is too weak or watery. | Insufficient coffee quantity; grind setting too coarse; old beans. | Adjust aroma dial to max; set grind finer; use fresh beans. |
| No coffee dispenses. | Water tank empty; brewing group blocked; descaling needed. | Fill water tank; clean brewing group; descale the machine. |
| Milk frother not producing steam. | Nozzle blocked; machine not ready for steam. | Clean the steam nozzle; wait for steam indicator light. |
For more detailed troubleshooting, please refer to the complete user manual or contact De'Longhi customer support.
8. Specifications
| Brand | De'Longhi |
| Model Number | ECAM 21.117.SB |
| Color | Black / Silver |
| Product Dimensions | 43 x 35.1 x 23.8 cm |
| Item Weight | 9 Kilograms |
| Capacity (Water Tank) | 1.8 Liters |
| Power / Wattage | 1450 watts |
| Material | Plastic |
| Noise Level | 44 dB |
| Special Features | Milk Frother, Removable Brewing Group |
| Coffee Maker Type | Espresso Machine (Bean-to-Cup) |
| Specific Uses | Espresso, Mocha, Latte, Cappuccino |
9. Warranty and Support
Your De'Longhi Magnifica S ECAM21.117.SB coffee machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical assistance, spare parts, or service, please contact De'Longhi customer support. Contact information can typically be found on the official De'Longhi website or in your product documentation. When contacting support, please have your model number (ECAM 21.117.SB) and serial number ready.
Online Resources: For additional support, FAQs, and video tutorials, visit the official De'Longhi website: www.delonghi.com
