Velamp 3 LED Flashlight Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of your Velamp 3 LED Flashlight. Designed for durability and performance, this flashlight features a robust rubber body, making it light, impact-resistant, and water-resistant. It is equipped with three latest-generation LEDs, providing 12 lumens of focused light visible up to 30 meters. Please read these instructions carefully before operating the device.

Figure 1: Front view of the Velamp 3 LED Flashlight. This image shows the black rubberized body, the orange accent ring near the head, and the three LED bulbs. A black lanyard with an orange tip is attached to the base.

Setup

The Velamp 3 LED Flashlight requires two D-size batteries (not supplied) for operation. Follow these steps to install the batteries:

1. Unscrew the tail cap of the flashlight by turning it counter-clockwise.
2. Insert two D-size batteries into the battery compartment, ensuring the positive (+) end of each battery faces towards the flashlight head.
3. Carefully screw the tail cap back on by turning it clockwise until it is securely tightened. Do not overtighten.

Figure 2: Side view of the Velamp 3 LED Flashlight. This image highlights the rubberized black body, the power button located on the side, and the 'VELAMP' brand name embossed on the casing. The tail cap, which is unscrewed for battery access, is also visible.

Operation

Operating your Velamp 3 LED Flashlight is straightforward:

• To turn the flashlight ON, press the power button located on the side of the flashlight body.
• To turn the flashlight OFF, press the power button again.

The flashlight provides a focused beam of 12 lumens, suitable for various tasks and environments.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your flashlight:

• Battery Replacement: When the light dims significantly or fails to turn on, replace both D-size batteries with new ones. Always use alkaline batteries for best performance and to prevent leakage.
• Cleaning: Wipe the exterior of the flashlight with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the lens is clean for maximum light output.
• Storage: If the flashlight will not be used for an extended period, remove the batteries to prevent potential leakage and damage to the device. Store in a cool, dry place.
• Water Resistance: While water-resistant, avoid submerging the flashlight in water for prolonged periods. Ensure the tail cap is securely tightened to maintain water resistance.

Figure 3: The Velamp 3 LED flashlight standing upright. This view emphasizes its robust black rubber casing and the orange accent ring, showcasing its compact and stable design.

Troubleshooting

If you encounter issues with your Velamp 3 LED Flashlight, refer to the following common problems and solutions:

• Flashlight does not turn on:
  • Check if the batteries are inserted correctly with the positive (+) ends facing the head.
  • Replace old batteries with new D-size alkaline batteries.
  • Ensure the tail cap is fully tightened.
• Light is dim or flickers:
  • Batteries may be low; replace them with new D-size alkaline batteries.
  • Ensure battery contacts are clean and free of corrosion.
  • Check if the lens is dirty and clean it if necessary.

Specifications

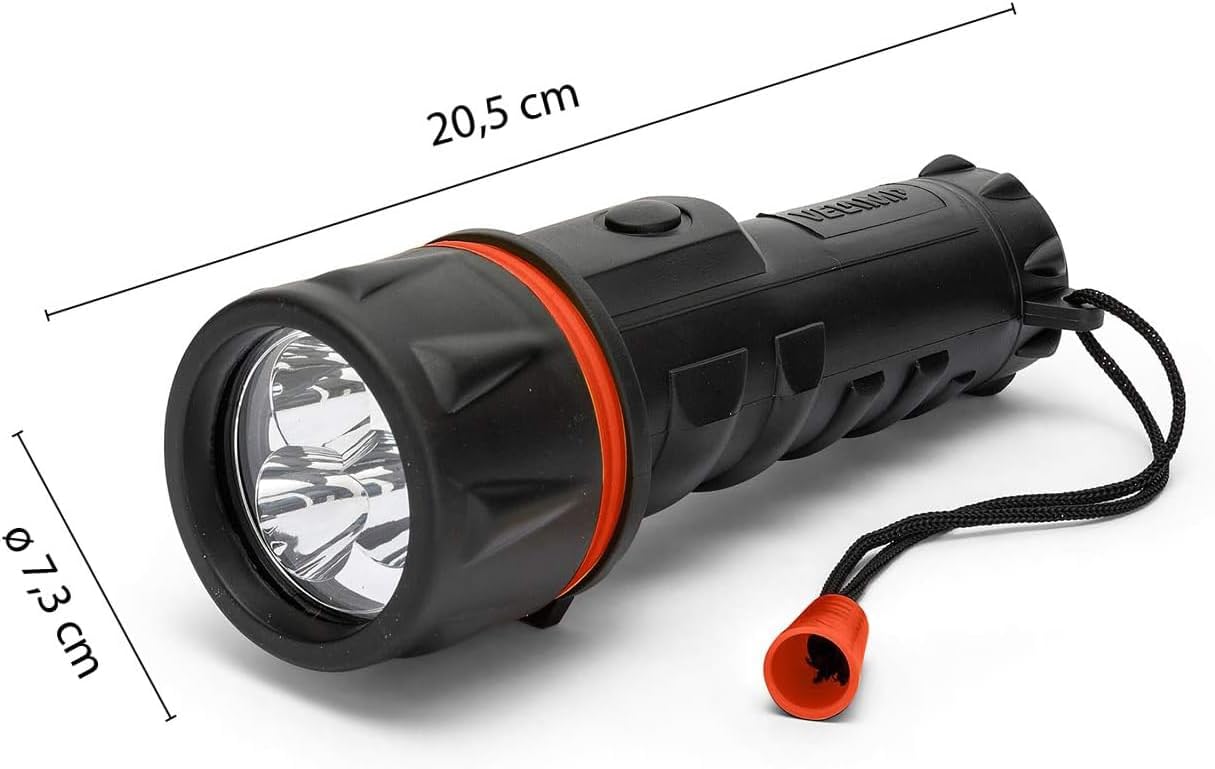

Figure 4: Velamp 3 LED Flashlight with dimensions. This image displays the flashlight with overlaid measurements, indicating a total length of 20.5 cm and a head diameter of 7.3 cm.

Warranty Information

This Velamp 3 LED Flashlight comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Velamp website. Ensure you have your product model number (IRUB2LED) and proof of purchase ready when contacting support.
