Anyray G8 100W T4 Halogen Light Bulbs Instruction Manual

Introduction

This manual provides instructions for the safe and effective use of Anyray G8 100W T4 Halogen Light Bulbs. These bulbs are designed for various applications, including landscape lighting, motion sensor lighting, and other fixtures requiring a G8 bi-pin base.

The Anyray A1710Y bulbs operate at 100 watts and are compatible with 110V, 120V, and 130V electrical systems.

Image 1: Anyray G8 100W T4 Halogen Light Bulb. This image shows the clear glass bulb with its internal filament and the two metal pins at the base.

Safety Information

• Always turn off power to the fixture before installing or removing bulbs.
• Allow bulbs to cool completely before handling. Hot bulbs can cause burns.
• Do not touch the glass portion of the bulb directly with bare hands during installation. Oils from skin can cause hot spots and premature bulb failure. Use a clean cloth or paper towel.
• Ensure the bulb's voltage (110V-130V) matches the fixture's requirements.
• Do not exceed the maximum wattage rating of your fixture. These bulbs are 100W.
• Dispose of used bulbs according to local regulations.

Setup and Installation

1. Power Off: Before beginning installation, ensure the power supply to the light fixture is completely turned off at the circuit breaker or switch.
2. Remove Old Bulb (if applicable): If replacing an existing bulb, allow it to cool down. Carefully grasp the old bulb and pull it straight out from the G8 bi-pin socket.
3. Prepare New Bulb: Remove the new Anyray G8 bulb from its packaging. Important: Handle the bulb by its ceramic base or use a clean cloth/paper towel to avoid touching the glass envelope. Fingerprints can leave oil residues that lead to premature failure.
4. Insert New Bulb: Align the two pins of the new G8 bulb with the holes in the fixture's socket. Gently push the bulb straight into the socket until it is fully seated. Do not force the bulb.
5. Restore Power: Once the bulb is securely installed, restore power to the fixture.
6. Test: Turn on the light switch to verify proper operation.

Operating Instructions

Anyray G8 100W T4 Halogen Light Bulbs are designed for immediate illumination upon activation.

• Voltage Compatibility: These bulbs are designed to operate within a voltage range of 110V to 130V.
• Dimmability: The bulbs are fully dimmable and can be used with conventional dimmer switches. Ensure your dimmer switch is compatible with halogen or incandescent loads.
• Intended Use: Suitable for various applications including landscape lighting, motion sensor lighting, cabinet lighting, and other fixtures with a G8 bi-pin base.

Maintenance

These halogen bulbs are designed for an operational life of approximately 2,500 hours. Minimal maintenance is required.

• Cleaning: If the bulb's glass surface becomes dirty, ensure the power is off and the bulb is cool. Gently wipe with a clean, dry, lint-free cloth. Avoid abrasive cleaners or liquids.
• Handling: When replacing bulbs, always follow the safety precautions regarding touching the glass with bare hands to prevent premature failure.

Troubleshooting

If the bulb does not illuminate after installation, consider the following:

• No Power: Verify that the power supply to the fixture is on and that the circuit breaker has not tripped.
• Improper Installation: Ensure the bulb is fully and correctly seated in the socket. Remove and re-insert the bulb carefully, ensuring pins are aligned.
• Defective Bulb: Although rare, a new bulb may be defective. Try a different new bulb if available.
• Fixture Issue: If multiple bulbs fail to work in the same fixture, the issue may be with the fixture itself or its wiring. Consult a qualified electrician if necessary.

Specifications

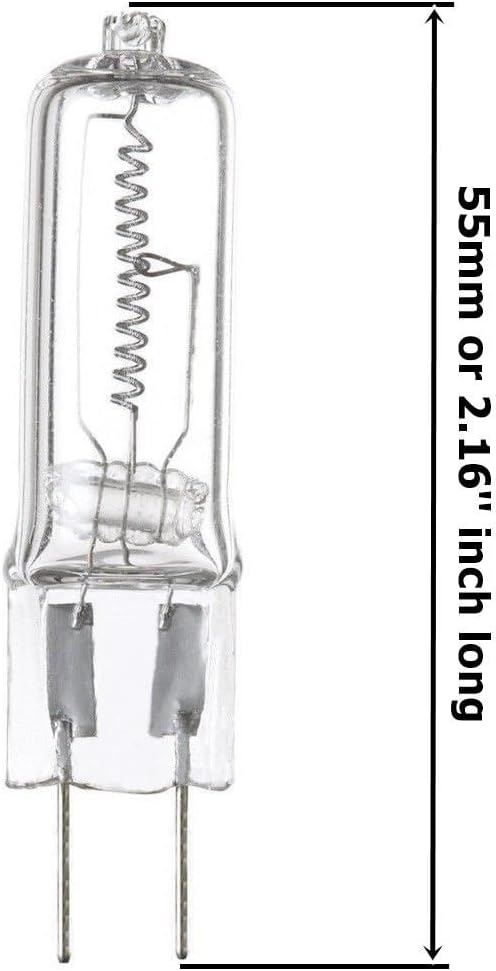

Image 2: Dimensions of the Anyray G8 100W T4 Halogen Light Bulb, showing a total length of 55mm (2.16 inches).

Warranty and Support

For warranty information or technical support regarding your Anyray G8 100W T4 Halogen Light Bulbs, please contact the manufacturer directly through their official website or the retailer from whom the product was purchased. Please retain your proof of purchase for warranty claims.
