1. Introduction
The TAPCO Blinkersign W3-1 is a solar-powered LED sign designed to enhance road safety by providing highly visible warnings. This model features a 30-inch 'Stop Ahead' symbol (W3-1) with 8 amber LEDs and 3M DG³ reflective sheeting. Its patented AutoBright circuitry automatically adjusts LED flash brightness based on ambient light, ensuring optimal visibility and extended battery life. The sign is engineered for 24/7 operation and is MUTCD-compliant.

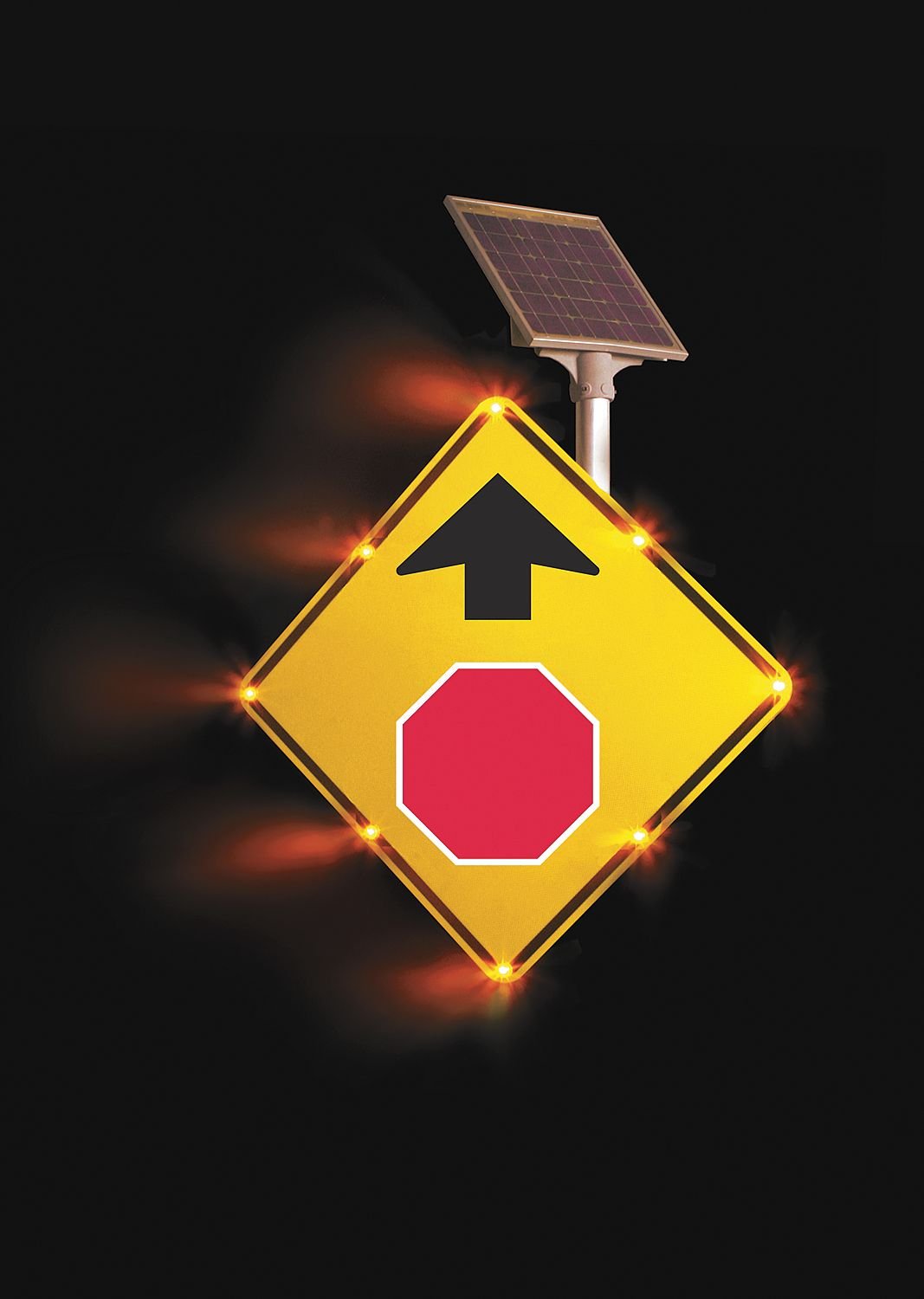

This image displays the TAPCO Blinkersign W3-1, a solar-powered LED sign. It features a standard yellow diamond-shaped warning sign with a black upward-pointing arrow and a red octagonal 'Stop' symbol in its center. The perimeter of the sign is equipped with eight amber LEDs designed to flash, enhancing visibility. A solar panel is mounted at the top of the sign, providing power.
2. Setup and Installation
The TAPCO Blinkersign W3-1 unit comes fully assembled, simplifying the installation process. It can be mounted quickly and easily onto any new or existing sign post.
2.1 Mounting
- Ensure the sign post is structurally sound and capable of supporting the sign's weight.
- Mount the sign securely using appropriate hardware (not included) to prevent movement due to wind or vibration.
2.2 Solar Panel Orientation
- Position the solar panel to receive maximum direct sunlight throughout the day.
- Avoid locations where shadows from trees, buildings, or other obstructions might fall on the solar panel, as this will reduce charging efficiency.
2.3 Wiring
- The unit features fully encapsulated wiring, providing protection against inclement weather, tampering, and vandalism.
- No external wiring connections are typically required for standard operation.
3. Operating Instructions
The TAPCO Blinkersign W3-1 is designed for autonomous operation once installed and charged.
3.1 Automatic Flashing
- The BlinkerSign LED stop ahead signs are pre-programmed to flash 24/7 as a standard operating mode.
- No manual activation or deactivation is typically required for continuous operation.
3.2 AutoBright Circuitry
- The patented AutoBright circuitry automatically measures available light and adjusts the LED flash brightness accordingly.
- This feature ensures optimal LED output in various lighting conditions (bright daylight, night, fog, rain, and snow) while extending battery life.
4. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Blinkersign.
- Solar Panel Cleaning: Periodically inspect and clean the surface of the solar panel to remove dirt, dust, leaves, or snow. A clean panel ensures maximum solar energy absorption for battery charging. Use a soft cloth and mild soap and water if necessary.
- Sign Surface Cleaning: Keep the reflective sign surface clean to maintain its visibility.
- Structural Integrity: Regularly check the sign and its mounting hardware for any signs of damage, loosening, or corrosion. Ensure the sign remains securely attached to the post.
- LED Inspection: Occasionally observe the LEDs to ensure they are all flashing correctly.
5. Troubleshooting
If your Blinkersign is not operating as expected, consider the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LEDs not flashing | Insufficient solar charge; obstructed solar panel; internal battery issue; wiring fault. | Ensure solar panel is clean and receiving direct sunlight. Allow several days for charging. If problem persists, contact TAPCO support. |
| LEDs are dim or inconsistent | Low battery charge; dirty solar panel; AutoBright adjusting for low ambient light. | Clean solar panel. Ensure adequate sunlight exposure. Observe if brightness changes with ambient light (normal operation). If consistently dim, contact support. |
| Sign is loose on post | Loose mounting hardware. | Inspect and tighten all mounting bolts and brackets. |
For issues not covered here, please contact TAPCO customer support.
6. Specifications
- Model: W3-1 BlinkerSign
- Sign Type: Stop Ahead (Symbol)
- Dimensions: 30"L x 30"W
- Light Type: Amber LEDs (8 LEDs)
- Material: Aluminum
- Reflective Sheeting: 3M DG³
- Power Source: Solar Powered
- Operation: 24/7 Flashing (standard)
- Features: MUTCD-compliant, Patented AutoBright circuitry, Fully encapsulated wiring
- Manufacturer: TAPCO Approved Supplier
- Country of Origin: Proudly made in the USA
7. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the official TAPCO website or contact TAPCO customer service directly. Keep your purchase receipt for warranty claims.
TAPCO Customer Service: Please visit the Tapco Store on Amazon or their official website for contact details.
