1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Viega ProPress 1-1/2-Inch Zero Lead EPDM Seal, Model 78262. Adhering to these instructions will ensure optimal performance and longevity of the product. This seal is designed for use within the Viega ProPress system to create secure, watertight connections in various plumbing applications.
2. Product Overview
The Viega ProPress system utilizes these EPDM seals to facilitate quick and reliable pipe connections. These seals are integral to the ProPress method, which significantly reduces installation time compared to traditional joining techniques. The seals are made from Ethylene Propylene Diene Monomer (EPDM), a durable material known for its resistance to heat, ozone, and weather, ensuring a long-lasting, zero-lead connection.
Key Features:
- Rapid Connection: Connections are formed in approximately four to seven seconds, ensuring a consistent, strong, and watertight seal.
- Wet Connection Capability: Allows installers to join wet connections, making it an efficient solution for maintenance and repair scenarios.
- Versatile Application: Adaptable for commercial, industrial, or residential plumbing applications, suitable for both new installations and retrofits.
- Simplified Process: Eliminates the need for tanks, hoses, thread cutters, solder, and flux, streamlining the installation process.
- Smart Connect Feature: Viega's patented Smart Connect feature helps identify unpressed connections during system testing, preventing missed connections.
Product Components:
This product consists of a 10-pack of 1-1/2-inch Zero Lead EPDM seals, designed for use with Viega ProPress, ProPress 304 stainless steel, and ProPress 316 stainless steel fittings.

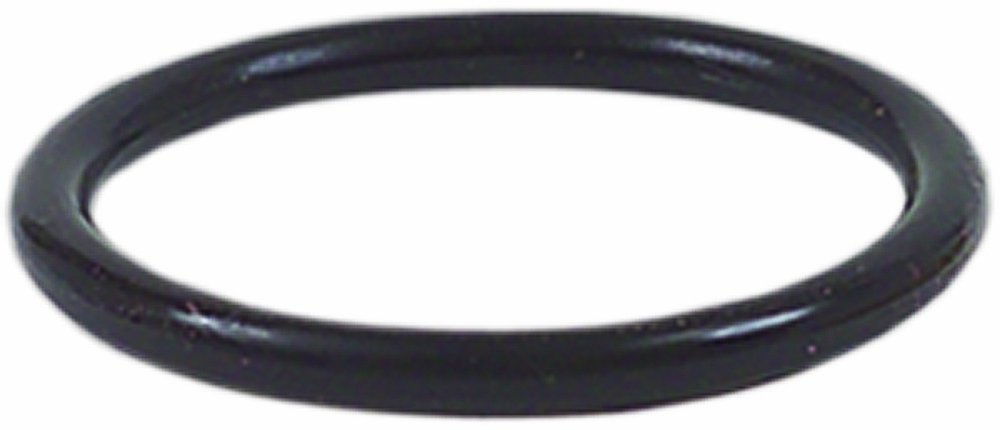

An image showing the Viega ProPress 1-1/2-Inch Zero Lead EPDM Seal, typically black in color, designed for secure pipe connections.
3. Installation Instructions
The Viega ProPress EPDM seals are designed for use with Viega ProPress tools and fittings. Proper installation is crucial for a leak-free system.
General Installation Steps (Requires Viega ProPress Tools):
- Prepare Pipe: Ensure the pipe end is clean, free of burrs, and cut squarely.
- Insert Seal: Verify the EPDM seal is correctly seated within the ProPress fitting.
- Insert Pipe: Fully insert the prepared pipe into the ProPress fitting until it reaches the stop.
- Press Connection: Use the appropriate Viega ProPress tool and jaw to press the fitting. The tool will create a permanent, mechanical connection, compressing the EPDM seal to form a watertight joint.
- Verify Connection: After pressing, visually inspect the connection. The Viega Smart Connect feature allows for easy identification of unpressed connections during system testing, as they will leak slightly, indicating the need for pressing.
Always refer to the specific instructions provided with your Viega ProPress tools and fittings for detailed installation procedures.
4. Operation
Once properly installed within a Viega ProPress fitting, the EPDM seal functions passively to maintain a watertight and pressure-resistant connection. The seal's material properties ensure flexibility and resilience against temperature fluctuations and system pressures, preventing leaks and maintaining system integrity. It is designed for continuous operation within the specified temperature and pressure ranges of the ProPress system.
5. Maintenance
The Viega ProPress EPDM seals are designed for long-term reliability and generally require minimal maintenance once installed correctly. However, periodic inspection of the plumbing system is recommended.
Inspection Guidelines:
- Visual Check: During any system maintenance, visually inspect accessible connections for signs of wear, cracking, or degradation of the seal material.
- Leak Detection: Monitor for any signs of moisture or drips around fittings, which could indicate a compromised seal.
If a seal appears damaged or a leak is detected, the affected fitting and seal should be replaced by a qualified professional using new Viega ProPress components.
6. Troubleshooting
Most issues related to ProPress connections stem from improper installation. The Viega Smart Connect feature is a primary troubleshooting aid.
Common Issues and Solutions:
- Leak at Connection: If a leak occurs during system testing, it is highly probable that the connection was not properly pressed. The Smart Connect feature allows unpressed connections to leak slightly, indicating they need to be pressed with the appropriate Viega ProPress tool.
- Damaged Seal: If a seal is visibly damaged prior to installation, it must be replaced. Do not attempt to install a damaged seal.
- Improper Pipe Preparation: Burrs or uneven pipe cuts can prevent the seal from seating correctly, leading to leaks. Ensure pipes are properly prepared according to Viega guidelines.
If troubleshooting steps do not resolve the issue, contact a qualified plumbing professional or Viega technical support.
7. Specifications
| Specification | Detail |
|---|---|
| Model Number | 78262 |
| Material | Ethylene Propylene Diene Monomer (EPDM) |
| Size | 1-1/2 Inch |
| Color | Black |
| Unit Count | 10 Count |
| Item Weight | 0.8 ounces (for the pack) |
| Product Dimensions | 1.5 x 1.5 x 0.58 inches |
| Measurement System | Inch |
| Manufacturer | Viega PEX |
8. Warranty and Support
Warranty Information:
This Viega product is covered by a Limited Warranty. For specific terms and conditions of the warranty, please refer to the official Viega warranty documentation or contact Viega directly. The warranty typically covers defects in material and workmanship under normal use and service.
Technical Support:
For technical assistance, installation guidance, or to report product issues, please contact Viega customer support. Contact information can typically be found on the official Viega website or product packaging.
