Introduction
The Champion Z9Y Copper Plus Spark Plug 808 is engineered to provide reliable ignition for various small engine and lawn & garden applications. This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Champion spark plug to ensure optimal engine performance and longevity.
Image 1: The Champion Z9Y Copper Plus Spark Plug, showcasing its design and copper core.
Product Features
- Genuine Champion Part # Z9Y: Ensures compatibility and performance as specified by the manufacturer.
- Easier, Cleaner Starts: Designed for faster, more consistent engine ignition.
- Reduced Engine Emissions: Contributes to cleaner engine operation.
- Improved Fuel Economy: Optimized design for efficient fuel combustion.
- Direct Fit Replacement: Engineered for seamless integration into compatible engines.
- Fine-Wire Center Electrode: Provides a focused spark for enhanced ignition efficiency.
- Copper Core Material: Utilizes copper for excellent conductivity and heat dissipation.
Safety Information
Always prioritize safety when working with engine components. Failure to follow safety guidelines can result in injury or damage to equipment.
- Ensure the engine is completely off and cool before attempting any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Avoid contact with hot engine parts or electrical components.
- Keep children and pets away from the work area.
- Dispose of old spark plugs and other waste materials responsibly.
Installation Guide
Proper installation is crucial for the performance and longevity of your spark plug. Follow these steps carefully:
- Preparation: Ensure the engine is off and cool. Locate the existing spark plug. Clean any debris from around the spark plug well to prevent it from falling into the combustion chamber when the plug is removed.
- Remove Spark Plug Wire: Gently twist and pull the spark plug wire boot to disconnect it from the old spark plug. Avoid pulling on the wire itself.
- Remove Old Spark Plug: Use a spark plug wrench or socket to loosen and remove the old spark plug. Turn counter-clockwise.
- Inspect New Spark Plug: Before installation, visually inspect the new Champion Z9Y spark plug for any damage. Verify the spark plug gap is correct for your engine's specifications. Refer to your engine's service manual for the precise gap setting.
- Install New Spark Plug: Thread the new spark plug into the cylinder head by hand to prevent cross-threading. Once finger-tight, use a spark plug wrench to tighten it. Refer to your engine's service manual for the correct torque specifications. Over-tightening can damage the spark plug or cylinder head.
- Reconnect Spark Plug Wire: Push the spark plug wire boot firmly onto the new spark plug until it clicks or seats securely.

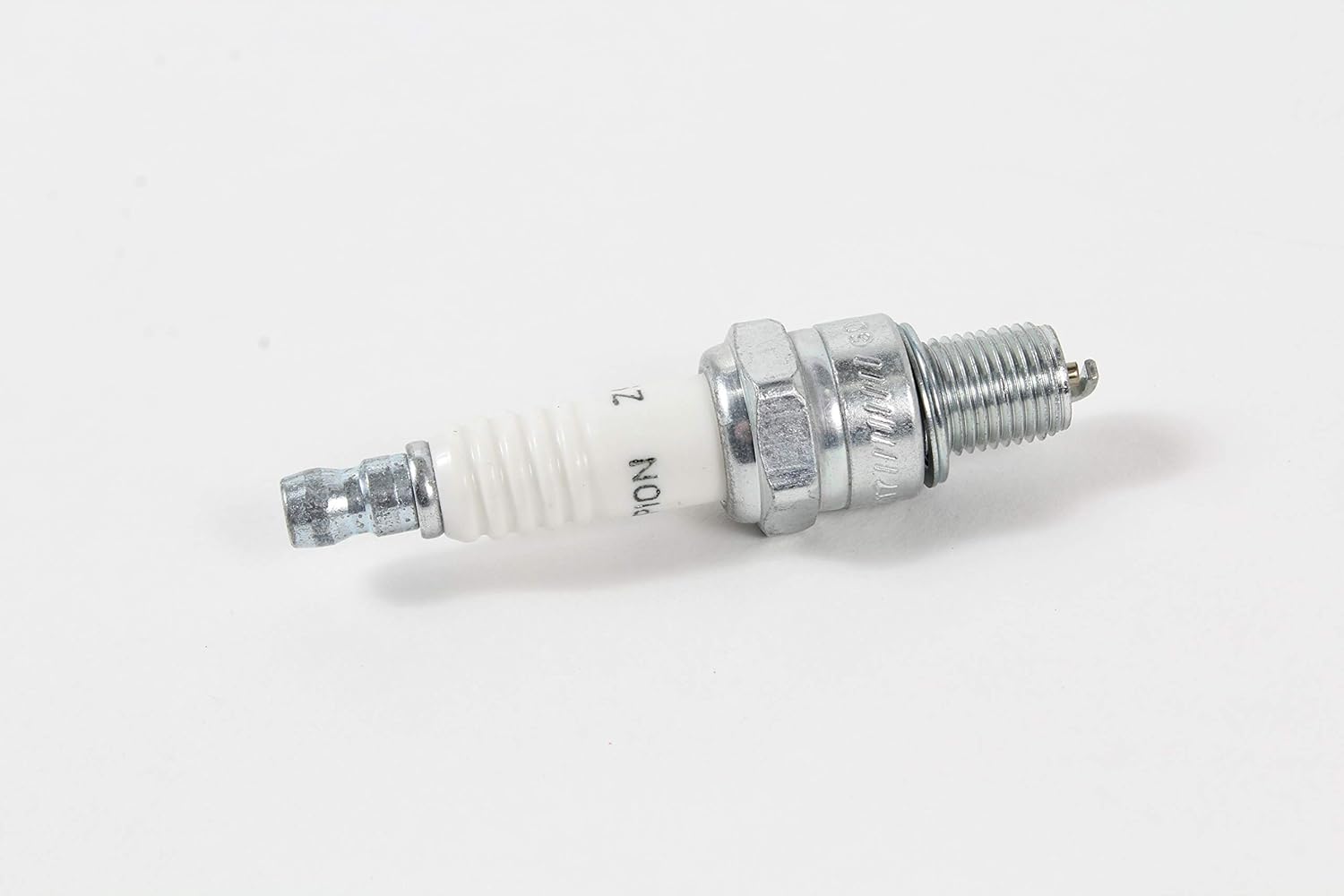

Image 2: Side view of the Champion Z9Y Copper Plus Spark Plug, showing the threaded portion and electrode.
Operation
The Champion Z9Y Copper Plus Spark Plug is a critical component of your engine's ignition system. Once correctly installed, it functions automatically to ignite the air-fuel mixture in the combustion chamber, initiating the power stroke. There are no user-operable controls on the spark plug itself; its performance is dependent on proper installation and engine tuning.
Maintenance
Regular inspection and timely replacement of your spark plug are essential for maintaining engine efficiency and preventing potential issues.
- Inspection: Periodically remove the spark plug to inspect its condition. Look for signs of wear, carbon fouling, oil fouling, or electrode damage. The color of the insulator tip can indicate engine running conditions (e.g., light tan/gray is ideal).
- Spark Plug Gap: Check the electrode gap with a feeler gauge. Adjust if necessary, but be careful not to damage the electrode. Refer to your engine's manual for the correct gap specification.
- Replacement: Spark plugs have a finite lifespan. Consult your engine's service manual for recommended replacement intervals. Typically, spark plugs in small engines should be replaced annually or every 50-100 operating hours, depending on usage and engine type.
Troubleshooting Common Issues
A faulty or worn spark plug can lead to various engine performance problems. Consider checking or replacing your spark plug if you experience any of the following:
- Hard Starting: Difficulty starting the engine, especially in cold weather.
- Engine Misfires or Rough Idling: The engine runs unevenly or loses power.
- Reduced Fuel Economy: The engine consumes more fuel than usual for the same amount of work.
- Loss of Power: The engine struggles to maintain power under load.
- Excessive Exhaust Smoke: While often related to other engine issues, a fouled spark plug can contribute.
If replacing the spark plug does not resolve the issue, consult a qualified mechanic or refer to your engine's service manual for further diagnosis.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | Z9Y |
| Part Number | 808 |
| Brand | Champion |
| Core Material | Copper |
| Thread Size | 14mm |
| Product Dimensions | 1 x 1 x 1 inches |
| Item Weight | 2.4 ounces |
| Vehicle Service Type | Lawn Mower, Garden Equipment |
Warranty and Support
Champion products are manufactured to high standards and are typically covered by a limited warranty against defects in materials and workmanship. For specific warranty details, terms, and conditions, please refer to the official Champion website or contact their customer support.
For further assistance, technical support, or to locate authorized service centers, please visit the official Champion website: www.championautoparts.com
