1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Pioneer TS-F1634R F Series 6.5-inch 2-Way Coaxial Car Speakers. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
The TS-F1634R speakers are designed to deliver clear audio with a 6-1/2" Injected Molded Polypropylene (IMPP) cone woofer and a balanced dome tweeter. They feature a 4 Ohm voice coil and are rated for 200 W maximum power (25 W nominal).
2. Safety Information
- Always ensure the vehicle's battery is disconnected before beginning any electrical work to prevent short circuits or electrical shock.
- Wear appropriate safety gear, such as safety glasses, during installation.
- Ensure all wiring is properly insulated and secured to prevent damage from vibration or contact with sharp edges.
- Do not install speakers in locations that obstruct the driver's view or interfere with vehicle safety features (e.g., airbags).
- Avoid exposing speakers to excessive moisture or extreme temperatures. These speakers are not waterproof.
- Operate audio systems at reasonable volume levels. Prolonged exposure to high volume can cause hearing damage.
3. Package Contents
Verify that all items are present in the package:
- (2) Pioneer TS-F1634R 6.5-inch Coaxial Speakers
- Mounting hardware (screws, clips)
- Speaker grilles
- Speaker wire (thin gauge, for basic connection)
Image: Contents of the Pioneer TS-F1634R speaker package, showing two speakers with their protective grilles.
4. Specifications
| Feature | Specification |
|---|---|
| Model Name | F Series |
| Speaker Type | Coaxial |
| Speaker Size | 6.5 Inches |
| Woofer Material | Injected Molded Polypropylene (IMPP) Cone |
| Tweeter Type | Balanced Dome Tweeter |
| Maximum Output Power | 200 Watts |
| Nominal Power | 25 Watts |
| Impedance | 4 Ohms |
| Surround Sound Channel Configuration | 2.0 |
| Product Dimensions | 6.8"D x 7.5"W x 7.7"H |
| Item Weight | 2.2 Pounds |
| Mounting Type | Flush Mount |
| Is Waterproof | FALSE |

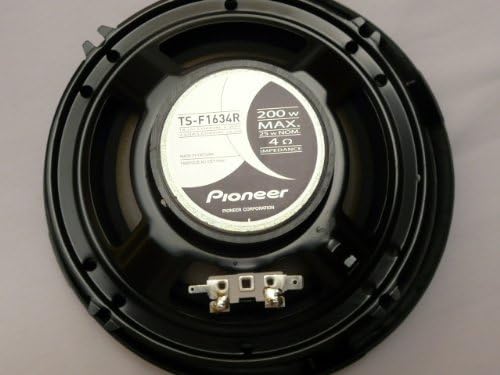

Image: Rear view of the Pioneer TS-F1634R speaker, displaying its model number, power ratings, and impedance on the magnet cover.
5. Setup and Installation
5.1 Pre-Installation Checks
- Confirm speaker compatibility with your vehicle's audio system and available mounting locations.
- Measure the mounting depth and diameter to ensure proper fitment. The TS-F1634R has a shallow mounting depth for easy installation in various vehicles.
- Gather all necessary tools: screwdrivers, wire strippers, crimping tool, drill (if needed), and electrical tape or heat shrink tubing.
5.2 Mounting the Speakers
- Carefully remove the existing speakers or trim panels from the desired mounting location.
- Position the new speaker in the opening. If necessary, use the provided mounting brackets or adapters to secure the speaker.
- Mark the screw holes and pre-drill pilot holes if required.
- Secure the speaker using the provided screws, ensuring a snug fit without overtightening.
Image: Front view of a single Pioneer TS-F1634R speaker, showcasing its design with the protective grille in place.
5.3 Wiring the Speakers
- Connect the positive (+) speaker wire from your audio source (head unit or amplifier) to the positive (+) terminal on the speaker.
- Connect the negative (-) speaker wire from your audio source to the negative (-) terminal on the speaker.
- Ensure all connections are secure and properly insulated to prevent short circuits.
- If using the provided thin speaker wire, consider upgrading to a thicker gauge wire for optimal power transfer, especially if connecting to an external amplifier.
Video: A product overview video demonstrating the features and installation process of a similar speaker model. This video is provided by Amazon Product Imaging.
6. Operating Instructions
Once installed, connect your audio source and power on your vehicle's audio system. Start with the volume at a low setting and gradually increase it to your desired listening level. Adjust the bass, treble, and balance settings on your head unit or amplifier to fine-tune the sound to your preference.
The balanced dome tweeter and IMPP cone woofer are designed to reproduce a wide frequency range, offering clear highs and deep bass. Experiment with your audio settings to achieve the best sound quality for your music.
7. Maintenance
- Regularly inspect speaker grilles for any damage or debris. Clean gently with a soft, dry cloth.
- Avoid using harsh chemicals or abrasive cleaners on the speaker cones or grilles.
- Ensure speaker wires remain securely connected and free from corrosion.
- If the speakers are exposed to dust or dirt, use a soft brush or compressed air to clean them.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers | Loose or incorrect wiring connections. Audio source not powered on or muted. | Check all wiring connections for proper polarity and secure fit. Ensure audio source is on and volume is up. |
| Distorted sound | Volume too high. Incorrect audio settings (bass/treble). Damaged speaker cone or voice coil. | Reduce volume. Adjust audio settings. Inspect speakers for physical damage. |
| Weak or no bass | Incorrect wiring polarity. Insufficient power from audio source. | Verify correct wiring polarity (+ to + and - to -). Ensure audio source provides adequate power. |
9. Warranty and Support
Please note that the Pioneer TS-F1634R is an International / Grey Market / Non-U.S. Model. The Pioneer Electronics (USA) Inc. Limited Warranty DOES NOT apply to this product or ANY Grey Market product.
For further assistance or inquiries, please refer to the seller or the official Pioneer website for general product information.
