TentandTable 20' x 40' White West Coast Frame Canopy Tent Instruction Manual

1. Product Overview

The TentandTable 20' x 40' West Coast Frame Tent is designed for quick and easy setup, offering durability for various outdoor events. This versatile canopy is suitable for parties, vendor booths, weddings, and other gatherings, serving both commercial and residential needs. West Coast frame tents utilize an expandable system, allowing the same components to construct multiple sizes. This design eliminates the need for center poles, maximizing usable space.

Key Features:

• Durable Construction: Features a one-piece canopy made from heavy-duty 16 oz block-out vinyl. All panels are bonded with 1-inch heat-sealed overlap seams for maximum strength.
• Robust Frame: Equipped with a galvanized interchangeable fitting system and anodized aluminum frame, providing a higher wind load rating than traditional pole tents.
• Versatile Placement: Free-standing design allows setup on grass, asphalt, concrete, or decks.
• Optimal Space: No center poles ensure maximum interior space for guests and equipment.
• Weather Resistant: Tent top is flame retardant and completely waterproof.
• Easy Setup: Does not require guy ropes, making it ideal for setups near buildings. Can be secured with sandbags or water drums.
• Adaptable: Components can be combined with most manufacturers' West Coast fittings and sidewalls (sold separately) for customization.

2. Safety Information

Read and understand all instructions before assembly and use. Failure to follow these instructions can result in serious injury or property damage.

• For safe setup, use appropriate anchoring methods on a stable, level surface.
• Do not use in extreme weather conditions, including high winds, heavy rain, or snow.
• Keep away from open flames and heat sources. The tent material is flame resistant but not fireproof.
• Always follow local regulations and guidelines for temporary structures.
• Ensure adequate clearance around the tent for safety and stability.
• A minimum of 2-3 people are recommended for safe and efficient assembly due to the size and weight of components.
• This product should be delivered to a commercial address with a loading dock or a forklift. If shipped to a residential address, you will need to unload this product directly from the truck.

3. Setup Instructions

Proper assembly is crucial for the stability and longevity of your West Coast Frame Tent. Follow these steps carefully.

3.1 Site Selection

Choose a level, stable surface for your tent. The West Coast Frame Tent is versatile and can be set up on various surfaces.

Image: Ideal surfaces for tent usage, including grass/soft surface, blacktop/asphalt, and concrete.

3.2 Components Overview

Familiarize yourself with the tent components before beginning assembly. The frame consists of 2-inch anodized aluminum pipes and galvanized steel fittings.

Image: Diagram illustrating the dimensions of the 20'W x 40'L tent, including width, length, peak height, and side height.

3.3 Frame Assembly

1. Lay out all frame components on the chosen site.
2. Connect the 2-inch anodized aluminum pipes using the galvanized steel fittings. Ensure all pins are securely inserted.
3. Assemble the base frame first, then gradually build up the vertical and roof support structures.

Image: Close-up view of a galvanized steel fitting securely connecting aluminum pipes, forming part of the tent frame structure.

3.4 Attaching the Tent Top

1. Carefully unfold the 16 oz block-out PVC vinyl tent top over the assembled frame.
2. Align the tent top with the frame, ensuring even distribution.
3. Secure the tent top to the frame using the integrated buckles and straps.

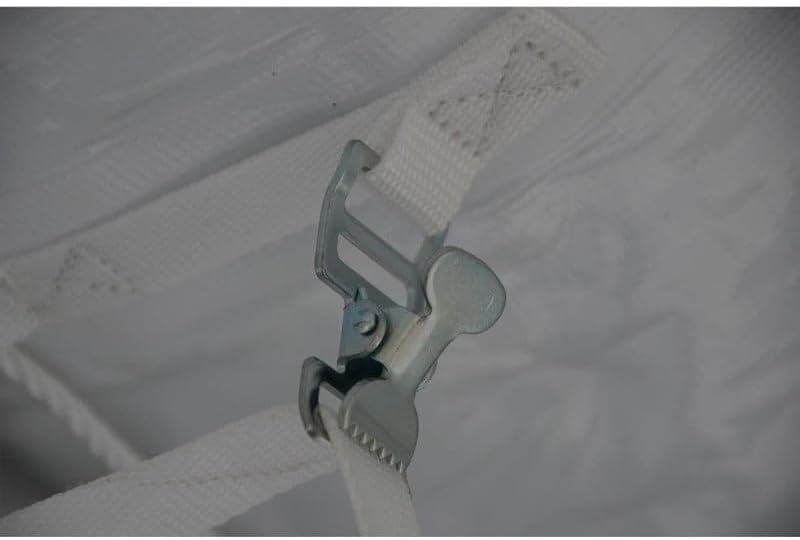

Image: A hand demonstrating how to secure the tent top to the frame using a buckle mechanism.

3.5 Anchoring the Tent

Proper anchoring is essential for safety and stability. Use appropriate stakes, sandbags, or water drums depending on the surface and weather conditions.

4. Operating Guidelines

Once assembled, your TentandTable West Coast Frame Tent provides a reliable shelter. Observe the following guidelines for optimal use:

• Regularly check the tension of the tent top and the security of all anchoring points, especially before and during events.
• Monitor weather conditions. In case of strong winds, heavy rain, or snow, evacuate the tent and consider disassembling it to prevent damage.
• Ensure proper ventilation if using heating or cooking equipment inside the tent, and always maintain a safe distance from tent walls.
• The block-out vinyl top effectively blocks light and shadows, providing a comfortable environment.

5. Maintenance

Proper maintenance extends the life of your tent and ensures its continued performance.

5.1 Cleaning

• Clean the vinyl tent top with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the material.
• Rinse thoroughly and allow the tent top to dry completely before storage to prevent mold and mildew.
• Wipe down frame components with a damp cloth to remove dirt and debris.

5.2 Storage

• Store the tent top and frame components in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ensure all components are clean and dry before packing to prevent damage and deterioration.
• Use the provided storage bags for organized and protected storage of the tent top and smaller fittings.

6. Troubleshooting

Here are solutions to common issues you might encounter:

• Tent Top Sagging: Check that all frame pipes are fully inserted into fittings and that the tent top straps are tightened evenly. Ensure the ground is level.
• Water Accumulation on Top: Verify that the tent top is properly tensioned and that the frame is correctly assembled to maintain its peak. Ensure no debris is collecting on the roof.
• Difficulty Assembling Frame: Ensure you have enough personnel (2-3 people recommended). Double-check that pipes and fittings are correctly oriented according to the assembly diagram.
• Tent Instability: Confirm all anchoring points are securely fastened and appropriate for the ground type. Re-evaluate site selection for levelness and stability.

7. Specifications

8. Warranty Information

This TentandTable West Coast Frame Canopy Tent comes with a 1 Year Limited Manufacturer's Warranty. For specific details regarding coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or contact TentandTable customer service.

9. Customer Support

If you have any questions, require assistance with assembly, or need to report an issue, please contact TentandTable customer support. Refer to the contact information provided in your product packaging or visit the official TentandTable website for support options.
