Norman Lamps 1999 (A508-28) Incandescent Bulb Instruction Manual

Introduction

This instruction manual provides essential information for the safe and effective use of your Norman Lamps 1999 (A508-28) Incandescent Bulb. This bulb is designed for specific applications requiring 28 volts and 25 watts, featuring a CC-6 filament and a 9.3mm wedge base. Please read this manual thoroughly before installation and operation.

Safety Information

• Electrical Safety: Always disconnect power before installing or replacing the bulb to prevent electrical shock.
• Correct Voltage: Ensure the fixture's voltage matches the bulb's specified 28V to avoid damage to the bulb or fixture.
• Heat: Incandescent bulbs generate heat. Allow the bulb to cool completely before handling. Do not touch a hot bulb.
• Proper Handling: Handle the bulb by its base to avoid touching the glass, which can reduce bulb life due to oils from skin.
• Disposal: Dispose of used bulbs according to local regulations.

Setup and Installation

The Norman Lamps 1999 (A508-28) bulb features a 9.3mm wedge base for easy installation. Follow these steps:

1. Power Off: Ensure the power supply to the fixture is completely turned off at the circuit breaker or switch.
2. Remove Old Bulb: Carefully remove the existing bulb from the fixture. If the old bulb is broken, use appropriate tools and safety precautions.
3. Insert New Bulb: Align the wedge base of the new Norman Lamps 1999 (A508-28) bulb with the socket. Gently push the bulb into the socket until it is firmly seated. Do not force the bulb.
4. Power On: Restore power to the fixture.

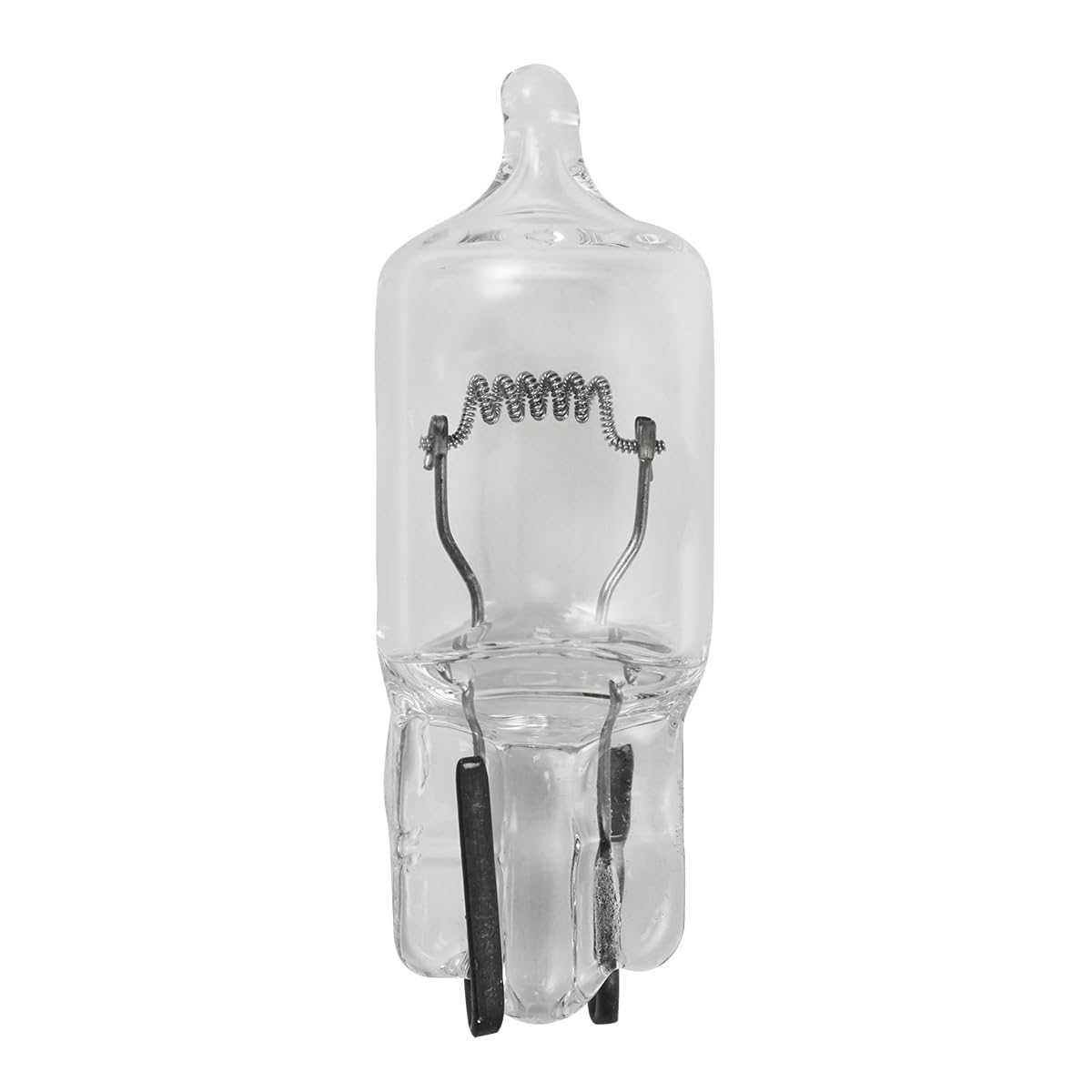

Image: Norman Lamps 1999 (A508-28) Incandescent Bulb, showing its wedge base and tubular shape.

Operating Instructions

Once installed, the Norman Lamps 1999 (A508-28) bulb operates by simply turning on the power to the fixture. It will provide immediate illumination. No special controls or settings are required for its operation.

Maintenance

The Norman Lamps 1999 (A508-28) incandescent bulb is designed for an average life of 200 hours. Regular maintenance is minimal:

• Cleaning: If the bulb becomes dusty, ensure the power is off and the bulb is cool. Gently wipe the glass with a soft, dry cloth. Do not use liquid cleaners.
• Replacement: Replace the bulb when it burns out. Follow the installation steps outlined in the 'Setup and Installation' section.

Troubleshooting

If your Norman Lamps 1999 (A508-28) bulb does not light up after installation, consider the following:

• No Power: Check if the power supply to the fixture is on. Verify the circuit breaker has not tripped.
• Improper Installation: Ensure the bulb is fully and correctly seated in the wedge base socket. Remove and re-insert if necessary.
• Incorrect Voltage: Confirm that the fixture's voltage matches the bulb's 28V requirement. Using an incorrect voltage can prevent the bulb from lighting or cause premature failure.
• Defective Bulb: Although rare, a new bulb can sometimes be defective. If all other troubleshooting steps fail, try a different new bulb.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support for your Norman Lamps 1999 (A508-28) Incandescent Bulb, please contact Norman Lamps directly through their official website or customer service channels. Keep your purchase receipt as proof of purchase.
