Interlink Torino Office Chair Instruction Manual

1. Introduction

Thank you for choosing the Interlink Torino Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new office chair. Please read these instructions carefully before assembly and retain them for future reference.

The Torino office chair is designed for comfort and functionality in a home or professional office environment. It features an anatomically shaped seat, an ergonomically designed backrest, and durable PVC and mesh materials for sustained use.

Image 1.1: The Interlink Torino Office Chair in a typical office environment.

2. Safety Information

• Maximum Weight Capacity: This chair is designed to support a maximum weight of 90 kg (approximately 198 lbs). Do not exceed this limit to prevent damage or injury.
• Assembly: Assemble the chair on a soft, clean surface to prevent scratching. Ensure all screws and bolts are tightened securely before use. Periodically check and re-tighten fasteners.
• Usage: Use the chair only for its intended purpose. Avoid standing on the chair or using it as a step stool.
• Children: Keep small parts away from children during assembly. This chair is intended for adult use.
• Stability: Do not lean excessively to one side or the back to avoid tipping.

3. Package Contents

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• 1x Seat Base
• 1x Backrest
• 1x Gas Lift Cylinder
• 1x Star Base (with 5 arms)
• 5x Caster Wheels
• 2x Armrests
• 1x Mechanism Plate (under seat)
• Hardware Pack (screws, washers, Allen key)
• Assembly Instructions (this document)

4. Assembly Instructions

Assembly requires approximately 30-60 minutes. It is recommended to have two people for easier assembly, though one person can complete it.

1. Attach Casters to Star Base: Insert each of the five caster wheels into the holes at the end of the star base arms. Push firmly until they click into place.
2. Insert Gas Lift Cylinder: Place the gas lift cylinder into the center hole of the assembled star base.
3. Attach Mechanism Plate to Seat: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Ensure the lever is positioned correctly (usually on the right side when seated). Secure with screws provided in the hardware pack.
4. Attach Armrests to Seat and Backrest: Secure the armrests to the sides of the seat cushion and the backrest using the provided screws. Do not overtighten initially; tighten fully once all screws are in place.
5. Connect Seat/Backrest Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.

Image 4.1: Dimensional diagram of the assembled chair.

5. Operating Instructions

5.1. Height Adjustment

To adjust the seat height (range: 46-55 cm):

• To raise the seat: While seated, lift the lever located on the right side of the chair (Image 5.1). The seat will rise automatically. Release the lever at the desired height.
• To lower the seat: While seated, lift the lever (Image 5.1) and apply slight body weight. The seat will lower. Release the lever at the desired height.
• To raise the seat without weight: Stand up and lift the lever. The seat will rise to its maximum height.

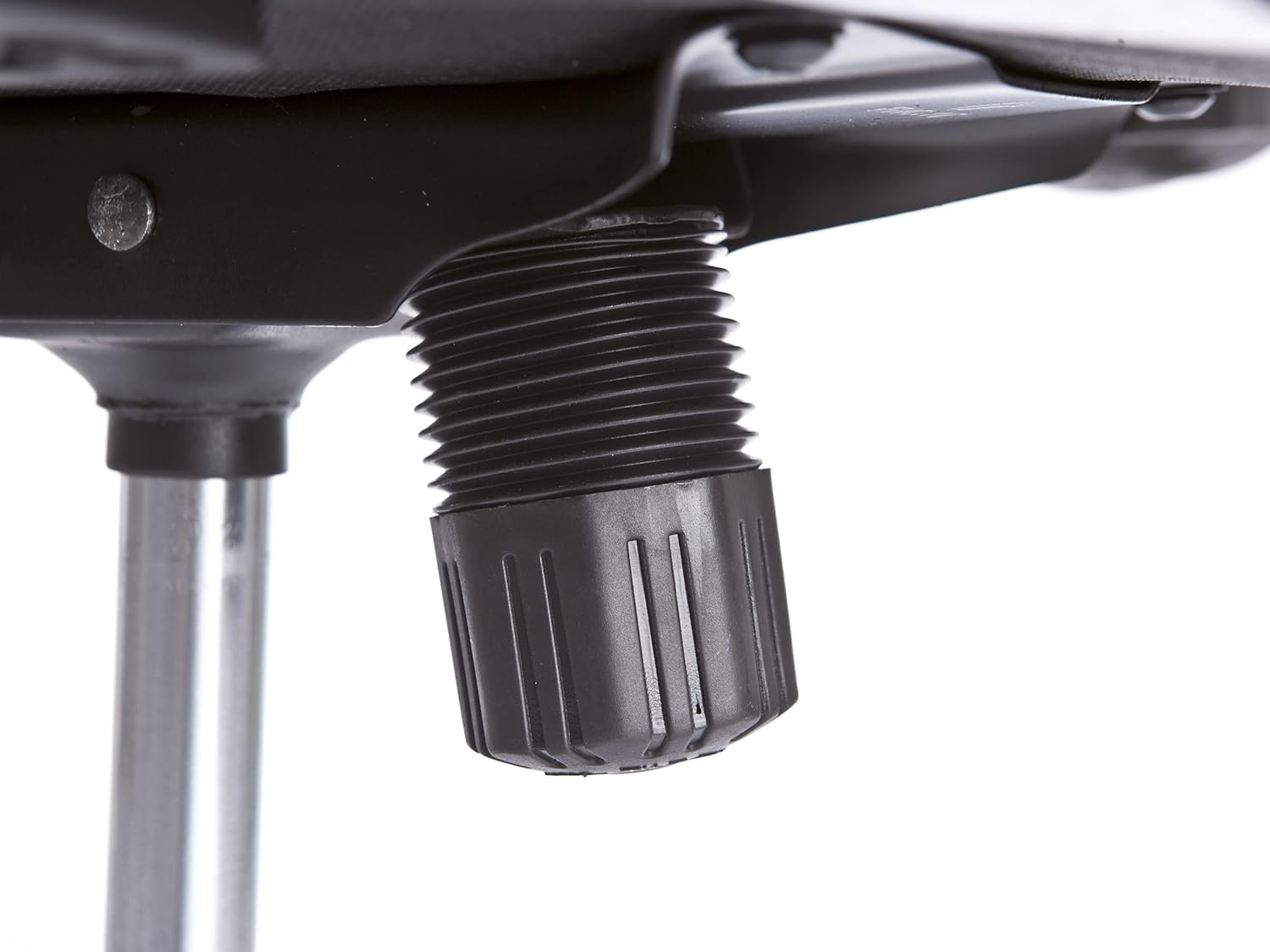

Image 5.1: Height adjustment mechanism.

5.2. Tilt Function and Lock

The chair features a tilt mechanism that allows the backrest and seat to recline together. The lever on the right side (Image 5.2) also controls the tilt lock.

• To unlock tilt: Pull the lever outwards from the chair. The chair will now allow for a rocking motion.
• To lock tilt: Push the lever inwards towards the chair. The chair will lock in its upright position.

Image 5.2: Tilt lock and height adjustment lever.

5.3. Movement

The five caster wheels allow for easy movement across hard floor surfaces. Ensure the floor is clear of obstructions before moving the chair.

6. Maintenance

• Cleaning: Wipe clean with a damp cloth. For stubborn stains on PVC or mesh, use a mild soap solution and dry thoroughly. Avoid abrasive cleaners or harsh chemicals.
• Fasteners: Periodically check all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain stability and safety.
• Casters: Keep the caster wheels free of hair, dust, and debris to ensure smooth movement.
• Material Care: The chair features durable PVC and mesh materials. Avoid prolonged exposure to direct sunlight to prevent fading or material degradation.

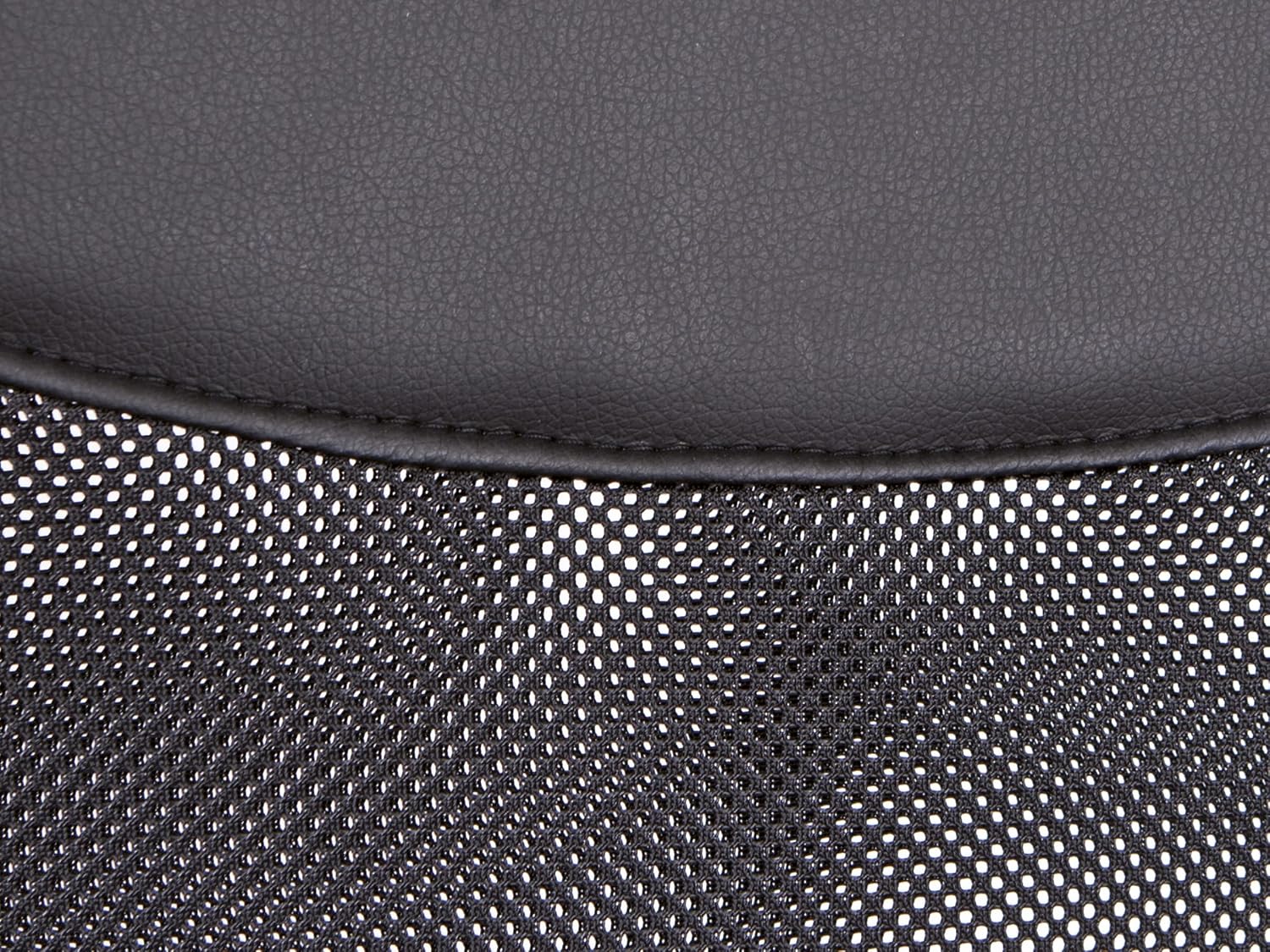

Image 6.1: Detail of PVC and mesh materials.

Image 6.2: Close-up of the mesh backrest and PVC headrest.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, please refer to the purchase documentation or contact your retailer. If you require technical support, have questions about assembly, or need replacement parts, please contact Interlink customer service through their official website or the retailer where the product was purchased.
