1. Introduction
Thank you for purchasing the BELLA 13573 2QT Triple Buffet Server and Warmer Tray. This appliance is designed to keep your food warm and ready for serving, perfect for parties, family gatherings, or everyday use. Its versatile design allows it to function as a triple buffet server or a standalone warming tray. Please read this manual thoroughly before operation to ensure safe and efficient use of your new appliance.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions before operating.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the warming base in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Parts and Features

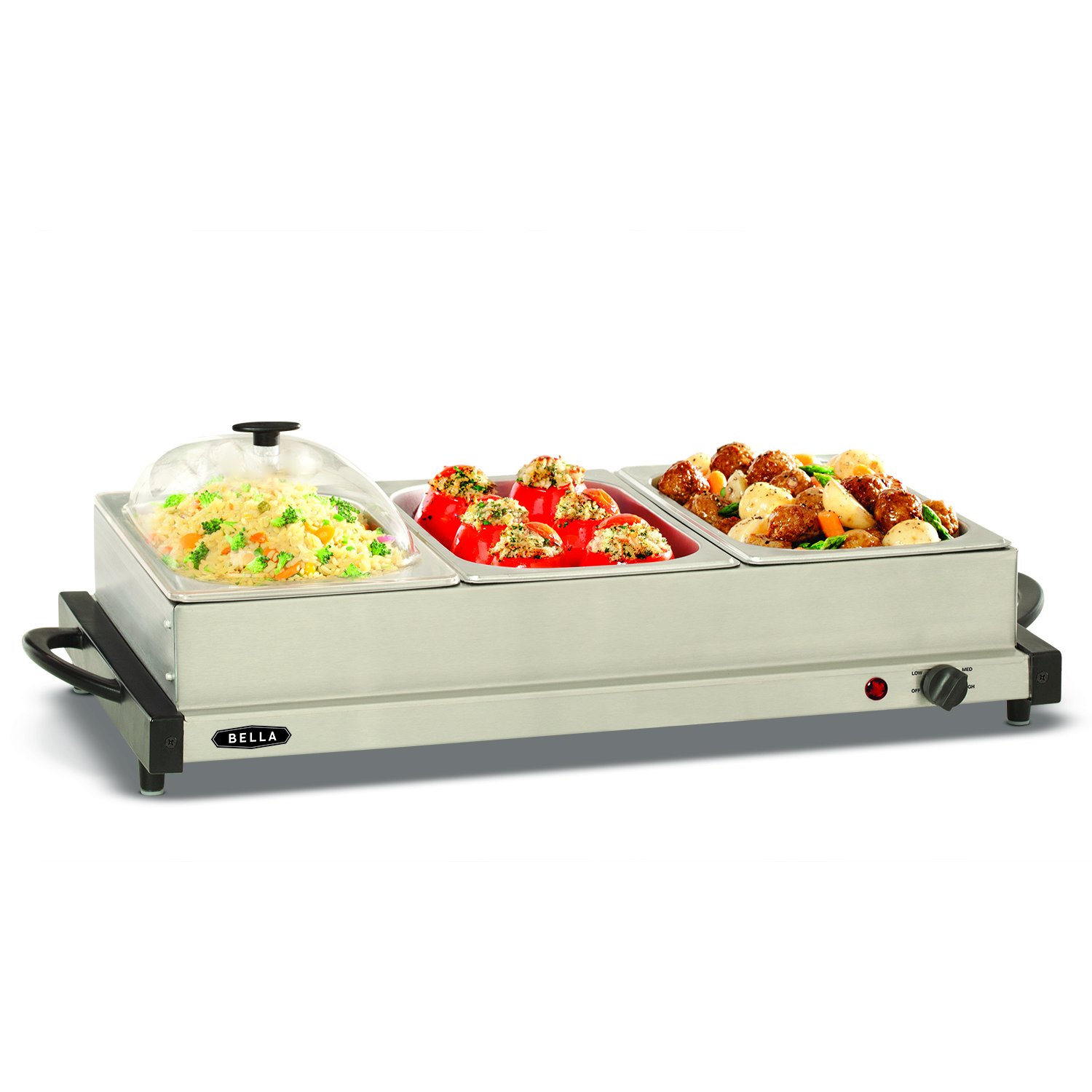

Figure 3.1: The BELLA Triple Buffet Server and Warmer Tray, showcasing its three removable chafing dishes with clear lids, and the main warming base with control knob.
Figure 3.2: A closer view of the BELLA Buffet Server, highlighting the variable heat control knob and the cool-touch handles on the side.
- Three 2QT Removable Chafing Dishes: Stainless steel food pans designed to hold and warm various dishes.
- Clear Lids: Transparent lids for each chafing dish, allowing easy viewing of food while retaining heat.
- Warming Tray Base: The main heating unit, which can also be used independently.
- Variable Heat Control: A knob with Off/Low/Medium/High settings to adjust the warming temperature.
- Cool-Touch Handles: Integrated handles on the warming base for safe transportation.
4. Setup
- Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Clean Before First Use: Wash the removable chafing dishes and clear lids in warm, soapy water. Rinse thoroughly and dry completely. Wipe the warming tray base with a damp cloth. Do not immerse the base in water.
- Placement: Place the warming tray base on a stable, flat, heat-resistant surface, away from flammable materials. Ensure there is adequate ventilation around the unit.
- Assemble: Place the clean chafing dishes into the designated slots on the warming tray base.
5. Operating Instructions
Using as a Triple Buffet Server:
- Ensure the unit is unplugged and the heat control knob is in the “OFF” position.
- Place your prepared food into the three 2QT chafing dishes.
- Cover each dish with its respective clear lid.
- Plug the power cord into a standard electrical outlet.
- Turn the variable heat control knob to your desired setting: “LOW”, “MEDIUM”, or “HIGH”. The indicator light will illuminate when the unit is on.
- Allow approximately 10-15 minutes for the unit to reach the desired warming temperature.
- Monitor food temperature to prevent overcooking or drying out.
- When finished, turn the heat control knob to “OFF” and unplug the unit from the outlet.
Using as a Standalone Warming Tray:
- Remove all three chafing dishes and lids from the warming tray base.
- Ensure the unit is unplugged and the heat control knob is in the “OFF” position.
- Plug the power cord into a standard electrical outlet.
- Turn the variable heat control knob to your desired setting: “LOW”, “MEDIUM”, or “HIGH”. The indicator light will illuminate.
- Place heat-safe serving dishes directly onto the warming tray surface. Ensure dishes have a flat bottom for optimal heat transfer.
- When finished, turn the heat control knob to “OFF” and unplug the unit from the outlet.

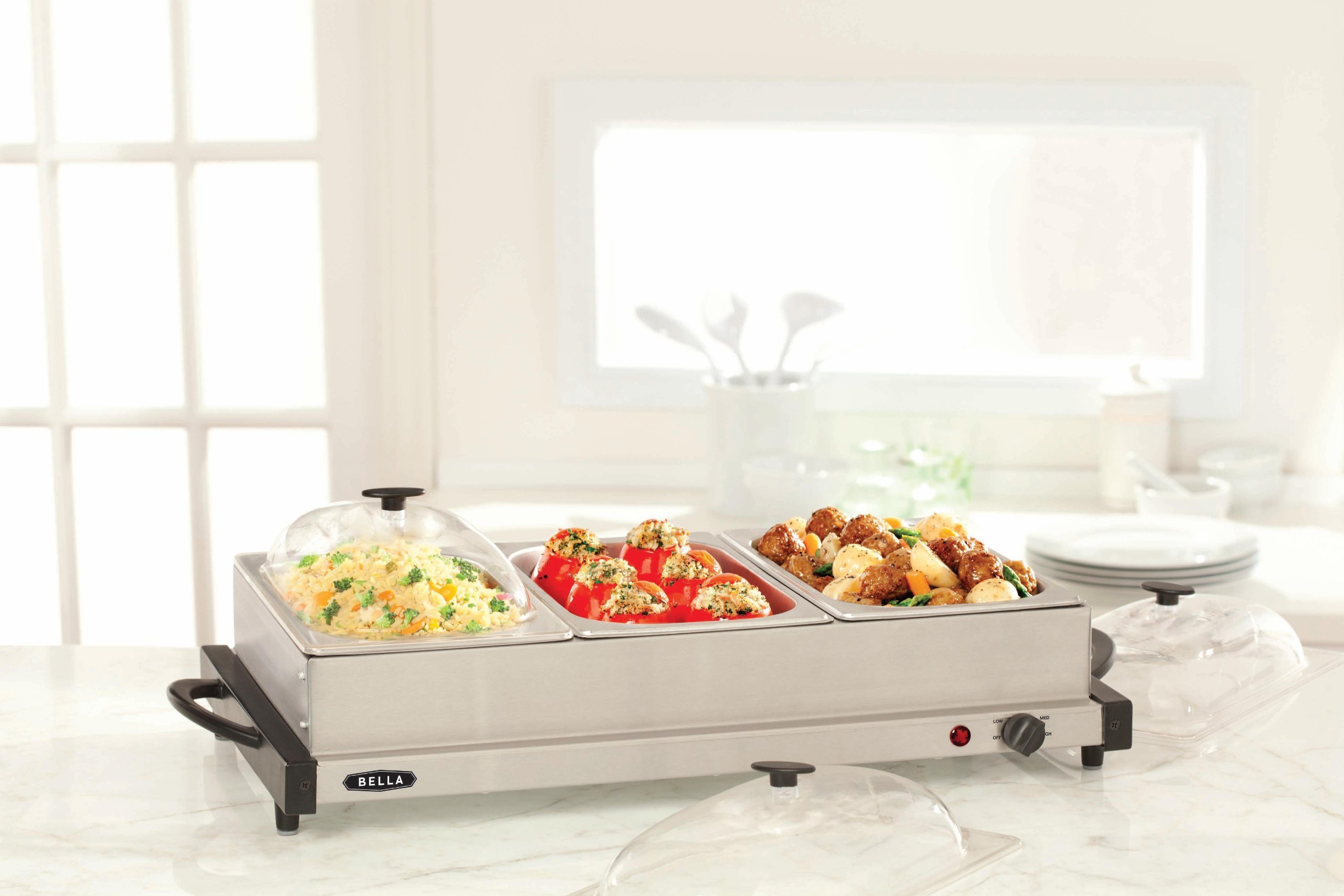

Figure 5.1: The buffet server in operation, keeping various dishes warm for serving.
Figure 5.2: A close-up of the buffet server with food, demonstrating the clear lids for easy viewing.
6. Maintenance and Cleaning
Proper cleaning and maintenance will ensure the longevity and optimal performance of your buffet server.
- Always Unplug: Before cleaning, ensure the unit is unplugged from the electrical outlet and has completely cooled down.
- Clean Chafing Dishes and Lids: The removable stainless steel chafing dishes and clear lids are dishwasher safe for easy cleaning. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry completely before storing.
- Clean Warming Tray Base: Wipe the warming tray base with a soft, damp cloth. For stubborn stains, a mild non-abrasive cleaner can be used. Never immerse the warming tray base, cord, or plug in water or any other liquid.
- Storage: Store the cleaned and dried buffet server in a cool, dry place. You may reassemble the unit or store components separately.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not heat up. | Not plugged in; power outlet not working; heat control knob is OFF. | Ensure the unit is securely plugged into a working outlet. Turn the heat control knob to a setting other than “OFF”. Check your home’s circuit breaker. |
| Food is not warm enough. | Heat setting is too low; lids are not on properly; food was not hot when placed in dishes. | Increase the heat setting. Ensure lids are securely placed on the chafing dishes to retain heat. For best results, place already hot food into the chafing dishes. |
| Unit emits a burning smell. | First use odor; food spilled on heating element. | A slight odor is normal during first use. If odor persists or is strong, unplug immediately. Ensure no food or liquid has spilled onto the heating surface. Clean thoroughly once cooled. If problem persists, discontinue use. |
8. Specifications
- Model Number: Bella (Internal model number: 13573)
- Dimensions: 61.49 cm x 15.49 cm x 29.01 cm (24.21 in x 6.10 in x 11.42 in)
- Weight: 1.81 kg (4 lbs)
- Material: Stainless Steel
- Color: Stainless Steel
- Capacity: Three 2-quart (2QT) removable chafing dishes
- UPC: 829486135736
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product at the time of purchase or visit the official BELLA website. Keep your purchase receipt as proof of purchase for any warranty claims.
