OTC 540231 Eaton Fuller Roadranger Adapter Instruction Manual

Introduction

The OTC 540231 Eaton Fuller Roadranger Adapter is designed for use with the OTC 5019A transmission jack. This adapter facilitates the safe and secure removal and installation of Eaton Fuller Roadranger series transmissions. Constructed from high-strength steel, it ensures long-term performance and reliability in demanding automotive service environments.

Key Features

• Specifically designed for Eaton Fuller 'Roadranger' series transmissions.
• Compatible with OTC's 5019A transmission jack.
• Ensures safe and secure transmission removal and installation.
• Manufactured from high-strength steel for durability.
• Identical to the adapter originally supplied with the OTC 5019A transmission jack.

Setup and Assembly

Follow these steps to properly attach the OTC 540231 adapter to your OTC 5019A transmission jack.

1. Ensure the OTC 5019A transmission jack is on a stable, level surface and the hydraulic system is fully lowered.
2. Align the mounting holes on the 540231 adapter with the corresponding attachment points on the transmission jack's saddle.
3. Secure the adapter using the provided hardware (bolts, washers, and nuts). Tighten all fasteners according to the torque specifications outlined in your OTC 5019A transmission jack manual.
4. Verify that the adapter is firmly seated and shows no signs of looseness or instability before proceeding.

Figure 1: OTC 540231 Adapter mounted on the 5019A Transmission Jack (lowered position).

Figure 2: OTC 540231 Adapter mounted on the 5019A Transmission Jack (raised position).

Operating Instructions

This section outlines the general procedure for using the adapter to handle transmissions. Always refer to the specific service manual for the vehicle and transmission being worked on.

1. Preparation: Ensure the transmission jack with the 540231 adapter is positioned correctly under the vehicle. The vehicle must be securely supported on jack stands or a lift.
2. Positioning the Adapter: Carefully raise the transmission jack until the adapter is close to the transmission's mounting surface.
3. Securing the Transmission: Align the transmission with the adapter's support points. Use appropriate straps or chains (not included) to secure the transmission to the adapter, preventing movement during removal or installation.
4. Removal/Installation: Slowly lower or raise the transmission using the jack's controls, ensuring the transmission remains stable and balanced on the adapter throughout the process. Monitor for any obstructions or binding.
5. Final Steps: Once the transmission is removed or installed, lower the jack completely and remove the transmission or adapter from the work area.

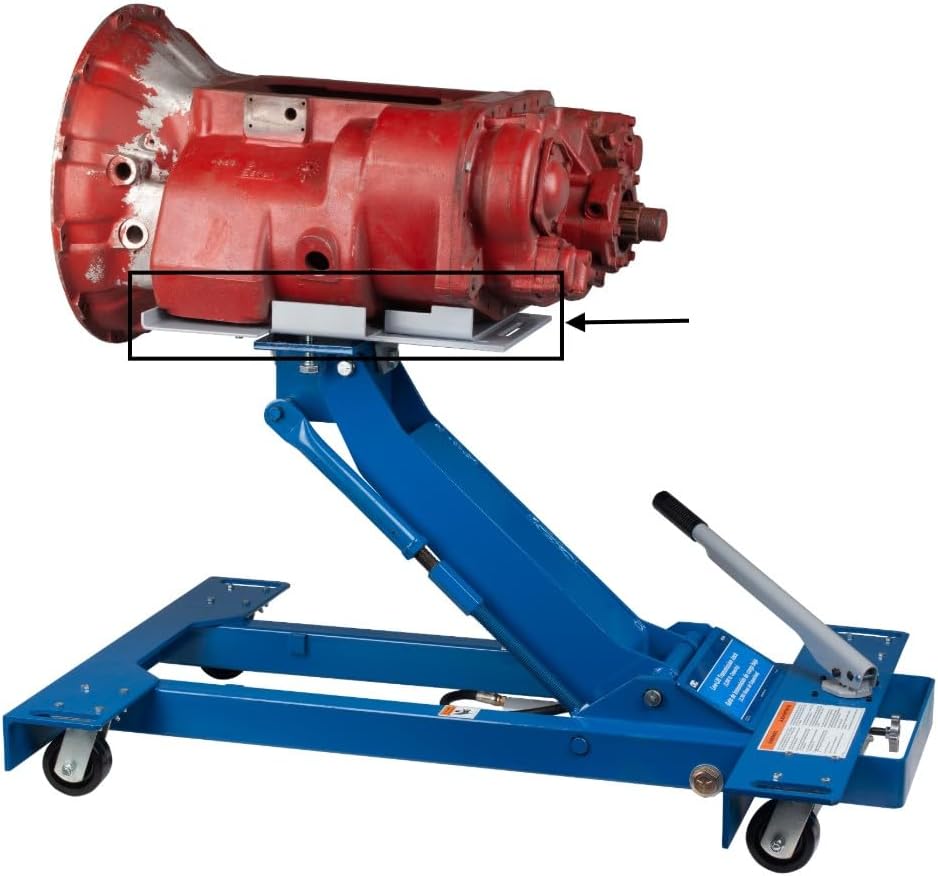

Figure 3: Eaton Fuller Roadranger transmission securely mounted on the OTC 540231 Adapter.

Maintenance

Regular maintenance ensures the longevity and safe operation of your OTC 540231 adapter.

• Cleaning: After each use, clean the adapter to remove any grease, oil, or debris. Use a mild detergent and water, then dry thoroughly to prevent rust.
• Inspection: Periodically inspect the adapter for signs of wear, damage, or deformation. Check all welds, mounting points, and the integrity of the steel structure.
• Fasteners: Ensure all bolts and nuts remain tight. Re-tighten if necessary, referring to the torque specifications from the transmission jack manual.
• Storage: Store the adapter in a clean, dry environment when not in use to protect it from corrosion and damage.

Troubleshooting

If you encounter issues while using the OTC 540231 adapter, consider the following:

• Instability: If the transmission feels unstable on the adapter, re-check that all mounting hardware is securely tightened and that the transmission is properly strapped. Ensure the transmission jack itself is stable and on a level surface.
• Difficulty in Alignment: Verify that the adapter is correctly positioned relative to the transmission's mounting points. Adjust the jack's position as needed.
• Damage: If any part of the adapter appears damaged or bent, discontinue use immediately and contact OTC customer support for assistance. Do not attempt to repair damaged components.

Specifications

Warranty and Support

The OTC 540231 Eaton Fuller Roadranger Adapter comes with a Lifetime Limited Warranty from the manufacturer, OTC. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or product support, please contact OTC customer service directly. You can find more information and contact details on the official OTC Store.
