Hobby Boss French EBR-10 Wheeled Reconnaissance Vehicle Model Kit HY82489

1. Introduction

Thank you for choosing the Hobby Boss French EBR-10 Wheeled Reconnaissance Vehicle Model Kit (HY82489). This 1/35 scale plastic model kit allows you to recreate the iconic Panhard 8x8 armored reconnaissance vehicle, known as the Engin Blindé de Reconnaissance, armed with a 75mm gun. This kit is designed for experienced modelers due to its intricate details and numerous small parts. Please read these instructions carefully before beginning assembly.

2. Parts List

Your kit contains approximately 330 precision-molded plastic parts, along with vinyl tires and photo-etch details. Before starting assembly, carefully unpack all components and compare them against the included parts diagram (refer to the separate diagram sheet in your kit box). Ensure all parts are present and undamaged. If any parts are missing or damaged, please contact Hobby Boss customer support.

Key components include:

• Main chassis and body panels
• Detailed suspension components
• Oscillating turret with 75mm gun barrel
• Dual-driver and turret hatches (optional open/closed positions)
• On-vehicle pioneer tools and equipment (e.g., shovels, axes)
• Jerry cans
• Smoke dischargers
• Vinyl tires for the 8x8 wheel configuration
• Photo-etch details for enhanced realism

Image 1: Box art showing the completed Hobby Boss French EBR-10 Wheeled Reconnaissance Vehicle model.

3. Assembly Instructions

Follow the step-by-step diagrams provided in your kit's instruction booklet. Use plastic cement for bonding parts and hobby knives or sprue cutters for removing parts from the sprues. Exercise caution with small and delicate components.

General Tips:

• Preparation: Carefully remove parts from the sprues using a sharp hobby knife or sprue cutters. Clean any flash or mold lines with a file or sandpaper.
• Test Fit: Always test fit parts before applying glue to ensure proper alignment and fit.
• Adhesives: Use appropriate plastic cement sparingly. For photo-etch parts, use super glue (cyanoacrylate).
• Painting: It is often easier to paint certain sub-assemblies before final attachment. Refer to the painting guide for color schemes.

Key Assembly Steps:

1. Chassis and Suspension: Assemble the main chassis frame and detailed suspension components. Pay close attention to the alignment of the 8x8 wheel mounts.
2. Wheels: The kit includes two-part wheels: an inner plastic hub and an outer vinyl tire. Carefully fit the vinyl tires onto the plastic hubs. For enhanced realism, aftermarket resin wheels (not included) are available for this model.
3. Hull Assembly: Construct the upper and lower hull sections, integrating the optional position dual-driver hatches.
4. Turret Assembly: Assemble the oscillating turret, including the 75mm gun barrel and muzzle brake. Ensure the pivoting mechanism functions correctly. Optional turret joint covers are provided.
5. Details: Attach separately molded on-vehicle pioneer tools, jerry cans, smoke dischargers, and photo-etch parts as indicated in the instructions.
6. Decals and Painting: Once assembly is complete and paint has dried, apply the decals according to the provided color painting reference for a single French Army vehicle.

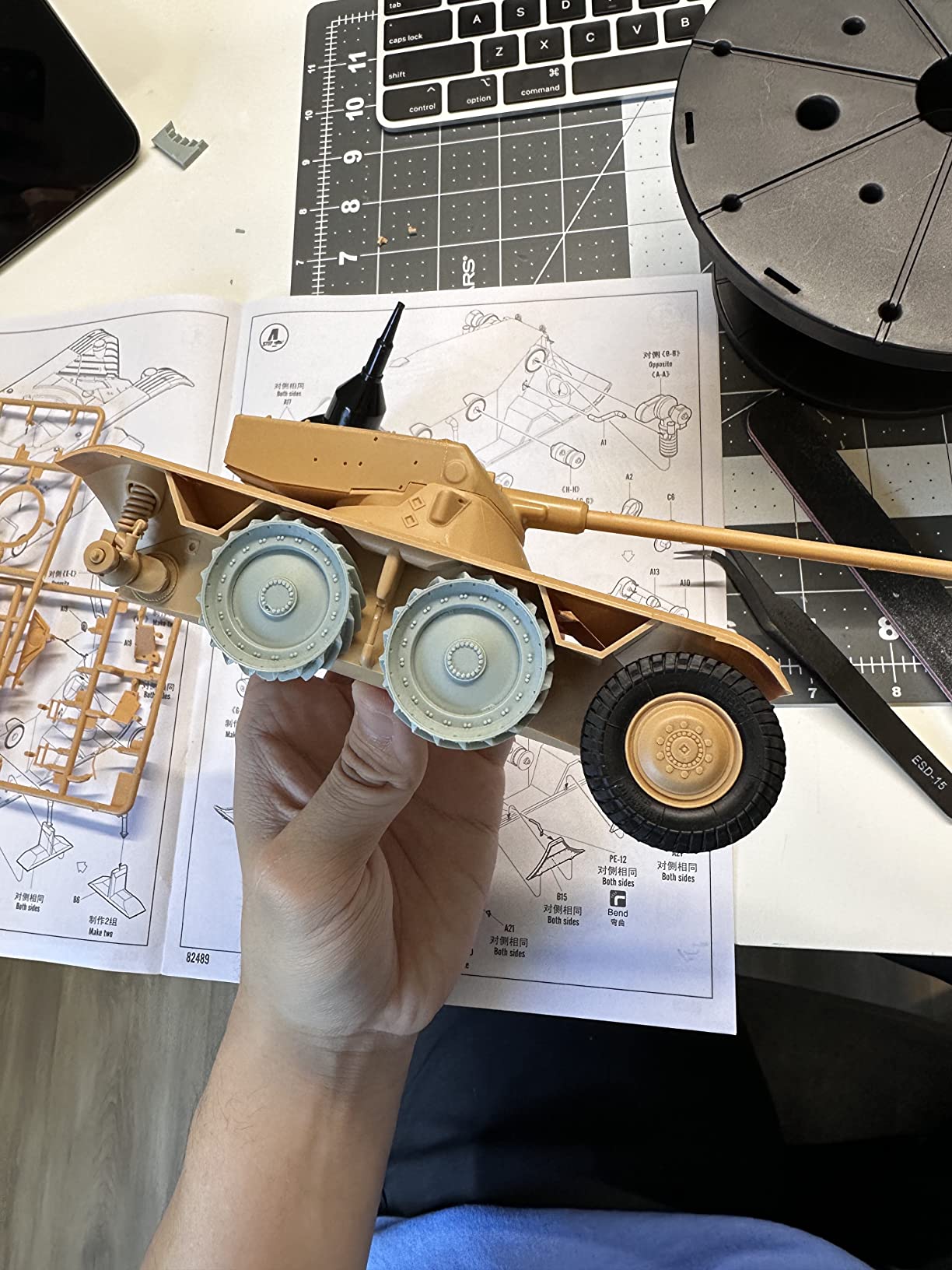

Image 2: A customer-built example of the Hobby Boss French EBR-10 model, showcasing intricate details.

4. Setup and Preparation

Proper preparation is crucial for a successful model build. Ensure you have a well-lit, clean, and organized workspace. Gather all necessary tools before you begin.

Recommended Tools and Materials (Not Included):

• Sprue cutters or sharp hobby knife
• Plastic cement (liquid or tube type)
• Fine-grit sandpaper or sanding sticks
• Small files
• Tweezers (for small parts and decals)
• Paint brushes or airbrush
• Model paints (acrylic or enamel, as per preference and guide)
• Decal setting solution
• Cutting mat

5. Displaying Your Model

Once your Hobby Boss EBR-10 model is fully assembled and painted, it is ready for display. Choose a stable, level surface away from direct sunlight, excessive heat, or humidity to preserve the model's finish and structural integrity. Avoid areas where it might be easily knocked over or exposed to dust.

6. Maintenance and Care

To keep your model looking its best, occasional cleaning is recommended.

• Dusting: Use a soft, dry brush (such as a makeup brush or dedicated model brush) to gently remove dust. Avoid abrasive cloths or harsh chemicals.
• Handling: Always handle the model by its base or sturdy sections to prevent damage to delicate parts.
• Storage: If storing the model, place it in a sealed display case or box to protect it from dust and environmental factors.

7. Troubleshooting Common Assembly Issues

Even experienced modelers can encounter challenges. Here are solutions to common issues:

• Parts Not Fitting: Ensure all sprue gates are cleanly removed and any flash is sanded down. Test fit again. If still tight, gently sand mating surfaces. If loose, use a small amount of filler or thicker cement.
• Broken Delicate Parts: Small parts can be fragile. If a part breaks, attempt to re-glue it with plastic cement or super glue. For very small or complex breaks, consider scratch-building a replacement or seeking aftermarket parts.
• Decal Silvering: This occurs when air is trapped under the decal. Apply decals to a glossy surface. Use decal setting solutions to help the decal conform to surface details and eliminate air bubbles.
• Paint Adhesion Issues: Ensure parts are clean and free of mold release agents, oils, or dust before painting. Wash parts with mild soap and water, then rinse and dry thoroughly. Use a primer for better paint adhesion.

8. Specifications

9. Warranty and Support

Warranty: This product is a model kit and is sold without a manufacturer's warranty. Please inspect all parts upon receipt. If any parts are missing or defective, please contact the retailer or Hobby Boss customer service immediately upon discovery.

Customer Support: For technical assistance, missing parts, or general inquiries regarding your Hobby Boss model kit, please refer to the contact information provided on the Hobby Boss official website or within the kit packaging. You may also consult online modeling forums and communities for advice and tips from other enthusiasts.
