ATI Radeon HD 3450 Video Card Instruction Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your ATI Radeon HD 3450 PCIe x16 Low Profile video card. Please read this manual carefully before installation and use to ensure optimal performance and longevity of your product.

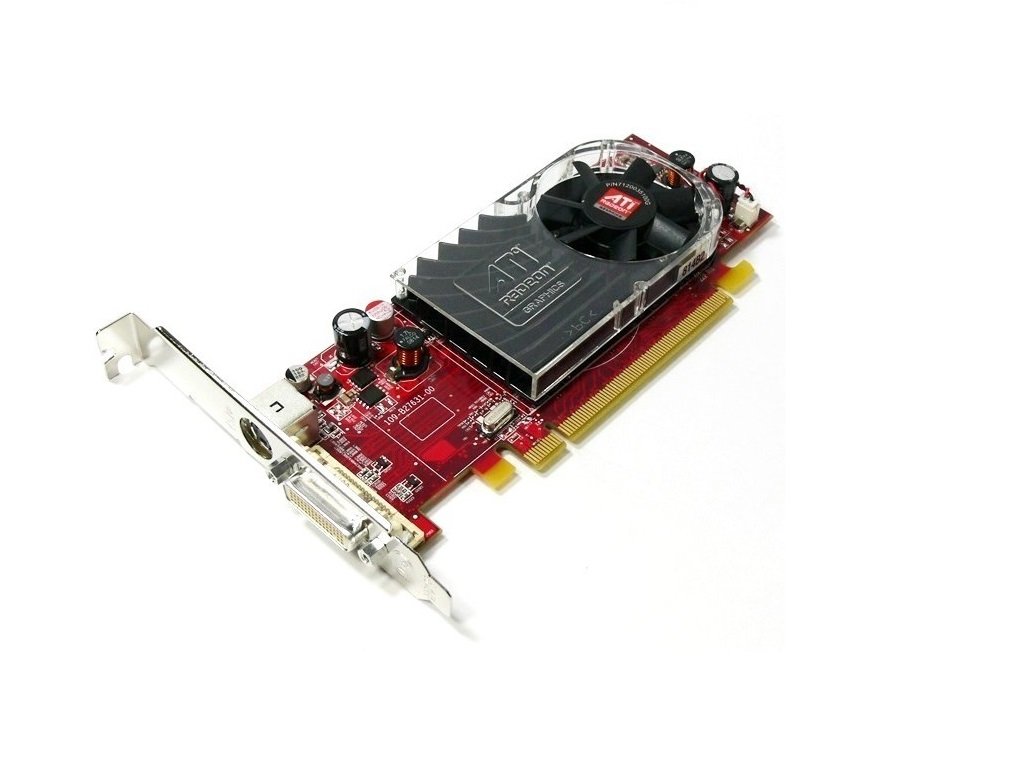

An image showing the ATI Radeon HD 3450 video card. It features a red PCB, a low-profile bracket, a cooling fan with an ATI Radeon logo, and a DVI output port. The PCIe x16 connector is visible at the bottom.

Setup

1. Physical Installation

1. Power Off: Ensure your computer is completely powered off and unplugged from the wall outlet.
2. Open Case: Open your computer's case to access the motherboard.
3. Locate PCIe x16 Slot: Identify an available PCI Express x16 slot on your motherboard. This is typically the longest PCIe slot.
4. Remove Slot Cover: Remove the metal slot cover from the back of your computer case corresponding to the chosen PCIe x16 slot.
5. Insert Video Card: Carefully align the video card with the PCIe x16 slot and press down firmly until it is securely seated. You should hear a click from the retention clip.
6. Secure Card: Secure the video card to the computer case with a screw or retention clip.
7. Close Case: Close your computer case and reconnect all cables.

2. Driver Installation

1. Power On: Power on your computer. The operating system may install a generic display driver automatically.
2. Download Drivers: Visit the official AMD (formerly ATI) website or your computer manufacturer's support page to download the latest drivers for the Radeon HD 3450.
3. Install Drivers: Run the downloaded driver installer and follow the on-screen prompts. You may need to restart your computer after installation.
4. Verify Installation: After restarting, verify that the drivers are correctly installed by checking your operating system's Device Manager (Windows) or System Information (Linux/macOS).

Operating

Once installed and drivers are updated, your ATI Radeon HD 3450 video card is ready for use. It supports multiple display outputs.

• Connecting Displays: Connect your monitor(s) to the available ports on the video card (VGA, DisplayPort, HDMI). Use appropriate cables and adapters.
• Display Settings: Access your operating system's display settings to configure resolution, refresh rate, and multiple monitor setups (extend, duplicate).
• AMD Catalyst Control Center (or equivalent): For advanced settings and performance tuning, use the AMD software suite installed with the drivers.

Maintenance

Regular maintenance helps ensure the longevity and stable performance of your video card.

• Dust Removal: Periodically open your computer case and gently clean dust from the video card's fan and heatsink using compressed air. Ensure the fan blades do not spin rapidly during cleaning.
• Driver Updates: Check the AMD website regularly for updated drivers. Newer drivers often include performance improvements, bug fixes, and compatibility updates.
• Temperature Monitoring: Use system monitoring software to keep an eye on the GPU temperature, especially during heavy load. Excessive temperatures can indicate poor airflow or a failing fan.

Troubleshooting

If you encounter issues with your video card, consider the following troubleshooting steps:

• No Display Output:
  • Ensure the monitor is connected securely to the video card and powered on.
  • Verify the video card is fully seated in the PCIe slot.
  • Test with a different monitor or cable if possible.
• Driver Issues (e.g., low resolution, artifacts):
  • Reinstall the latest drivers from the AMD website.
  • Try uninstalling existing drivers completely before installing new ones.
• System Instability/Crashes:
  • Ensure your power supply unit (PSU) meets the minimum requirements for your system, including the video card.
  • Check for overheating (refer to Maintenance section).

For persistent issues, consult the AMD support website or your computer manufacturer's support resources.

Specifications

Warranty Information

Specific warranty terms for the ATI Radeon HD 3450 video card may vary depending on the retailer and region of purchase. Please refer to your purchase documentation or contact the seller for detailed warranty information. Keep your proof of purchase for any warranty claims.

Support

For further technical assistance, driver downloads, or product information, please visit the official AMD support website. You may also contact your computer manufacturer's support if the card was pre-installed in a system.

• AMD Support: www.amd.com/support (Please note: ATI is now part of AMD)
