Dayton 4WT46 115 VAC Standard Square Axial Fan Instruction Manual
Model: 4WT46
Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Dayton 4WT46 115 VAC Standard Square Axial Fan. Please read this manual thoroughly before using the product and retain it for future reference.

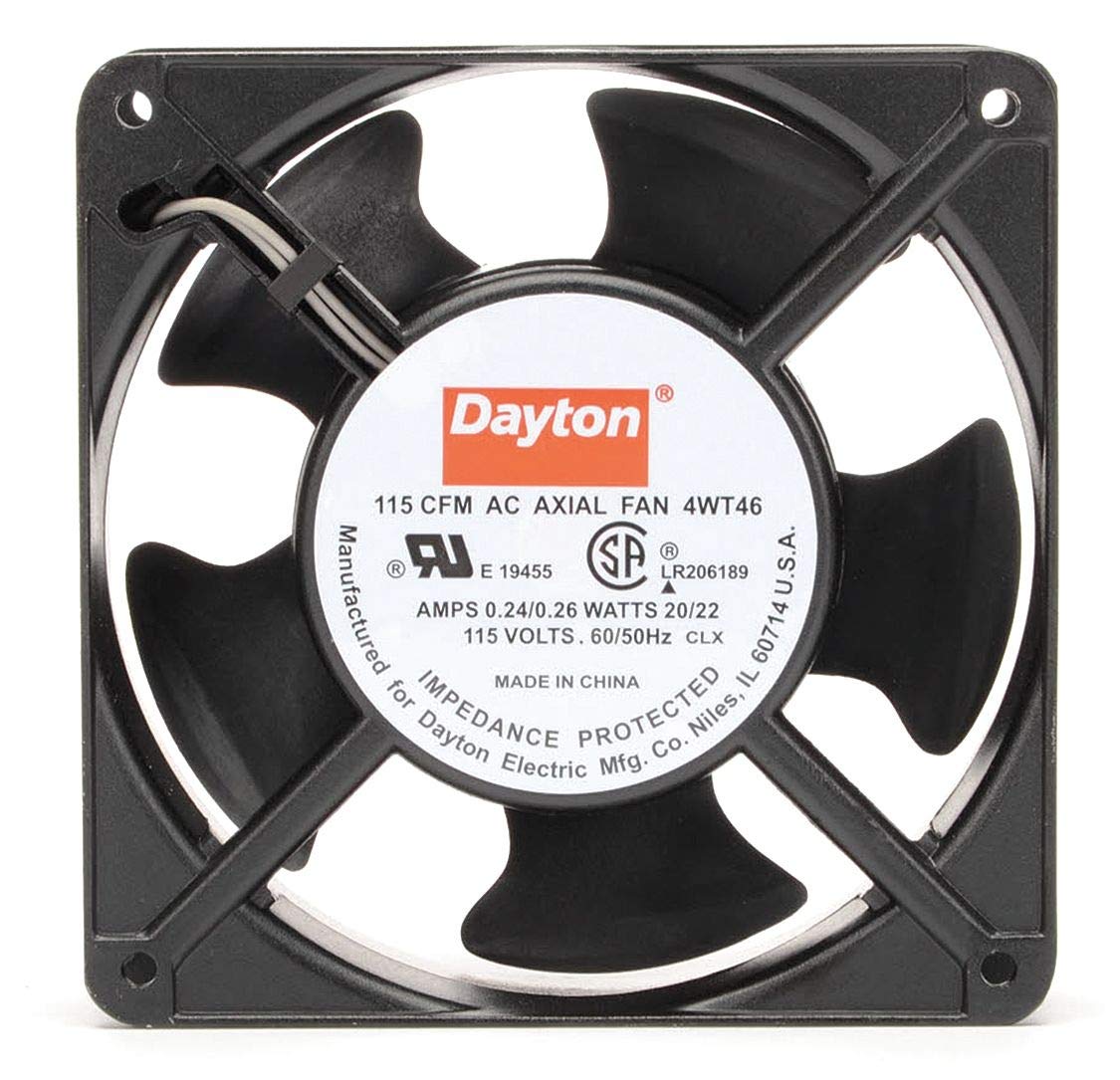

Figure 1: Dayton 4WT46 115 VAC Standard Square Axial Fan. This image shows the front view of the axial fan with its square frame and fan blades visible.
Safety Information
Always observe the following safety precautions to reduce the risk of injury or damage:
- Ensure the power supply matches the fan's voltage requirements (115 VAC).
- Disconnect power before installation, maintenance, or cleaning.
- Do not operate the fan with damaged wiring or if the fan itself is damaged.
- Keep fingers and other objects away from moving blades.
- Install the fan in a location that allows for adequate airflow and prevents obstruction.
Setup and Installation
Follow these steps for proper installation of your axial fan:
- Unpacking: Carefully remove the fan from its packaging. Inspect for any shipping damage.
- Mounting: Secure the fan to a stable surface using appropriate fasteners. Ensure the mounting is rigid to prevent vibration. The fan dimensions are approximately 4-11/16" width and 4-11/16" height, with a depth of 1-1/2".
- Electrical Connection: Connect the fan to a 115 VAC power source. This model uses a 3-Pin power connector. Ensure all connections are secure and comply with local electrical codes. The fan operates at 0.24 AMP and 20 WATT.
- Airflow Direction: Verify the desired airflow direction before final installation. Axial fans typically draw air from one side and expel it from the other.
Operating Instructions
Once installed, operating the Dayton 4WT46 fan is straightforward:
- Power On: Apply power to the fan's circuit. The fan should begin to rotate immediately.
- Monitoring: Observe the fan for any unusual noises or vibrations during initial operation. The fan's maximum rotational speed is 3100 RPM.
- Continuous Operation: This fan is designed for continuous operation in suitable environments.
- Power Off: To stop the fan, disconnect power from its circuit.
Maintenance
Regular maintenance ensures optimal performance and longevity of your fan:
- Cleaning: Periodically clean the fan blades and housing to prevent dust and debris buildup, which can reduce efficiency and cause overheating. Always disconnect power before cleaning.
- Inspection: Regularly inspect the fan for any signs of wear, such as loose connections, damaged blades, or unusual bearing noise.
- Lubrication: This fan typically features sealed bearings that do not require lubrication. Refer to specific product documentation if unsure.
Troubleshooting
Refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Loose wiring; Motor failure | Check power connection; Secure wiring; Contact support if motor is faulty |
| Excessive noise or vibration | Loose mounting; Debris in blades; Worn bearings | Tighten mounting screws; Clean blades; Contact support for bearing replacement |
| Reduced airflow | Blocked intake/exhaust; Dirty blades; Motor running slow | Clear obstructions; Clean blades; Check power supply voltage |
Specifications
| Feature | Detail |
|---|---|
| Model | 4WT46 |
| Voltage | 115 VAC |
| Current | 0.24 AMP |
| Wattage | 20 WATT |
| Width | 4-11/16 inches |
| Height | 4-11/16 inches |
| Depth | 1-1/2 inches |
| Maximum Rotational Speed | 3100 RPM |
| Power Connector Type | 3-Pin |
| Cooling Method | Air |
| Compatible Devices | Radiator, Transmission Coolers |
| Item Weight | 1.25 Pounds |
| Replaces Model | 4C550 |
Warranty and Support
For warranty information or technical support, please contact Dayton customer service. Keep your purchase receipt as proof of purchase.
While specific warranty details are not provided in this manual, standard manufacturer warranties typically cover defects in materials and workmanship for a limited period from the date of purchase.
For further assistance, please refer to the official Dayton website or contact your authorized dealer.
