Introduction
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your Central Hydraulics 20 Ton Air/Over Hydraulic Jack. Please read this manual thoroughly before use to ensure proper handling and to prevent injury or damage to the equipment.
Important Safety Information: Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves. Ensure the work area is clear and well-lit. Never exceed the jack's rated capacity. Refer to all safety decals on the product.
Product Overview

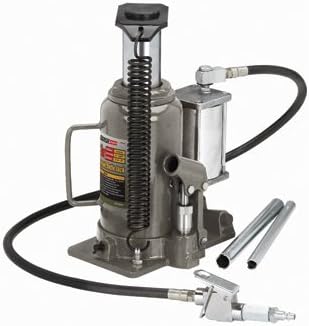

Image: The Central Hydraulics 20 Ton Air/Over Hydraulic Jack, showcasing its robust construction, the main hydraulic cylinder, air motor assembly, and detachable handle sections. The air hose with quick-connect fitting is visible, connecting to the air motor.
The Central Hydraulics 20 Ton Air/Over Hydraulic Jack is designed for heavy-duty lifting applications, capable of lifting up to 40,000 lb. (20 tons). It combines the power of a hydraulic jack with the convenience of air-assisted operation, making it suitable for automotive, industrial, and agricultural use. Key components include the main hydraulic cylinder, air motor, release valve, and a two-piece handle for manual pumping and operation.
Setup
- Unpacking: Carefully remove the jack and all accessories from the packaging. Inspect for any shipping damage.
- Handle Assembly: Assemble the two-piece handle by screwing the sections together. Insert the assembled handle into the handle socket on the jack.
- Air Line Connection: Connect a compressed air source (minimum 90 PSI, maximum 120 PSI) to the quick-connect fitting on the air motor. Ensure the air hose is securely attached.
- Bleeding the System (Initial Use): Before first use, or if the jack has been stored for an extended period, it may be necessary to bleed air from the hydraulic system.
- Turn the release valve counter-clockwise to the open position.
- Pump the handle 5-10 times or activate the air motor for a few seconds without a load.
- Turn the release valve clockwise to the closed position.
Operating Instructions
Lifting with Air Power:
- Positioning: Place the jack on a hard, level surface directly under the lifting point of the load. Ensure the saddle is centered.
- Close Release Valve: Turn the release valve clockwise until it is firmly closed. Do not overtighten.
- Connect Air: Ensure the air line is connected to the jack and the air compressor is supplying adequate pressure.
- Activate Air Motor: Press the lever on the air motor to engage the air-powered lift. The jack ram will extend, lifting the load. Release the lever to stop lifting.
- Secure Load: Once the desired height is reached, immediately place appropriate jack stands or other support devices under the load. Never rely solely on the jack to support a load.
Lifting Manually:
- Follow steps 1 and 2 from "Lifting with Air Power."
- Pump Handle: Pump the handle up and down to extend the jack ram and lift the load. Continue pumping until the desired height is reached.
- Secure Load: Immediately place appropriate jack stands or other support devices under the load.
Lowering the Load:
- Remove Supports: Ensure all jack stands or support devices are safely removed from under the load.
- Slowly Open Release Valve: Slowly turn the release valve counter-clockwise. The load will begin to descend. Control the descent speed by adjusting how far the valve is opened.
- Fully Lower: Continue to lower the load until it is fully supported by the ground or its own wheels.
- Retract Ram: Once the load is fully lowered, turn the release valve fully counter-clockwise to allow the ram to retract completely.
Maintenance
- Hydraulic Fluid: Check the hydraulic fluid level periodically. To check, ensure the ram is fully retracted, remove the oil filler plug, and add high-quality hydraulic jack oil if needed. Do not overfill.
- Cleaning: Keep the jack clean and free of dirt, grease, and corrosive materials. Wipe down the ram with a clean cloth after each use.
- Lubrication: Periodically lubricate moving parts with light machine oil.
- Storage: Store the jack in a dry, clean environment with the ram fully retracted.
- Inspection: Before each use, inspect the jack for any signs of damage, leaks, or worn parts. Do not use a damaged jack.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Jack will not lift load. | Release valve open; Low hydraulic fluid; Air in system; Overload. | Close release valve; Add hydraulic fluid; Bleed system; Reduce load. |
| Jack lifts slowly or erratically. | Low hydraulic fluid; Air in system; Worn seals. | Add hydraulic fluid; Bleed system; Contact service for seal replacement. |
| Jack leaks fluid. | Loose fittings; Damaged seals. | Tighten fittings; Contact service for seal replacement. |
| Air motor not engaging. | No air supply; Low air pressure; Clogged air filter. | Check air compressor and hose; Ensure adequate pressure (90-120 PSI); Clean/replace air filter. |
Specifications
- Model: 20 Ton Air/Over Hydraulic Jack
- Brand: Central Hydraulics
- Load Capacity: 20 tons (40,000 lb.)
- Maximum Lift Height: Approximately 17-3/8 inches
- Style: Bottle Jack
- Color: Silver
- UPC: 792363955539
- Air Pressure Requirement: 90-120 PSI (recommended)
Warranty and Support
For warranty information, technical support, or to inquire about replacement parts, please contact Central Hydraulics directly. Keep your purchase receipt as proof of purchase.
You may find contact details on the product packaging or by visiting the official Central Hydraulics website. (Example link for general support, actual link may vary)
