Stens Air Filter 100-465 Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Stens 100-465 Air Filter. This air filter is designed as a replacement for various outdoor power equipment, industrial applications, golf carts, and utility vehicles, specifically replacing OEM part number Toro 108-3808.

The Stens 100-465 Air Filter ensures clean air intake for your engine, which is crucial for maintaining optimal performance and extending engine life. Regular inspection and replacement are vital for efficient operation.

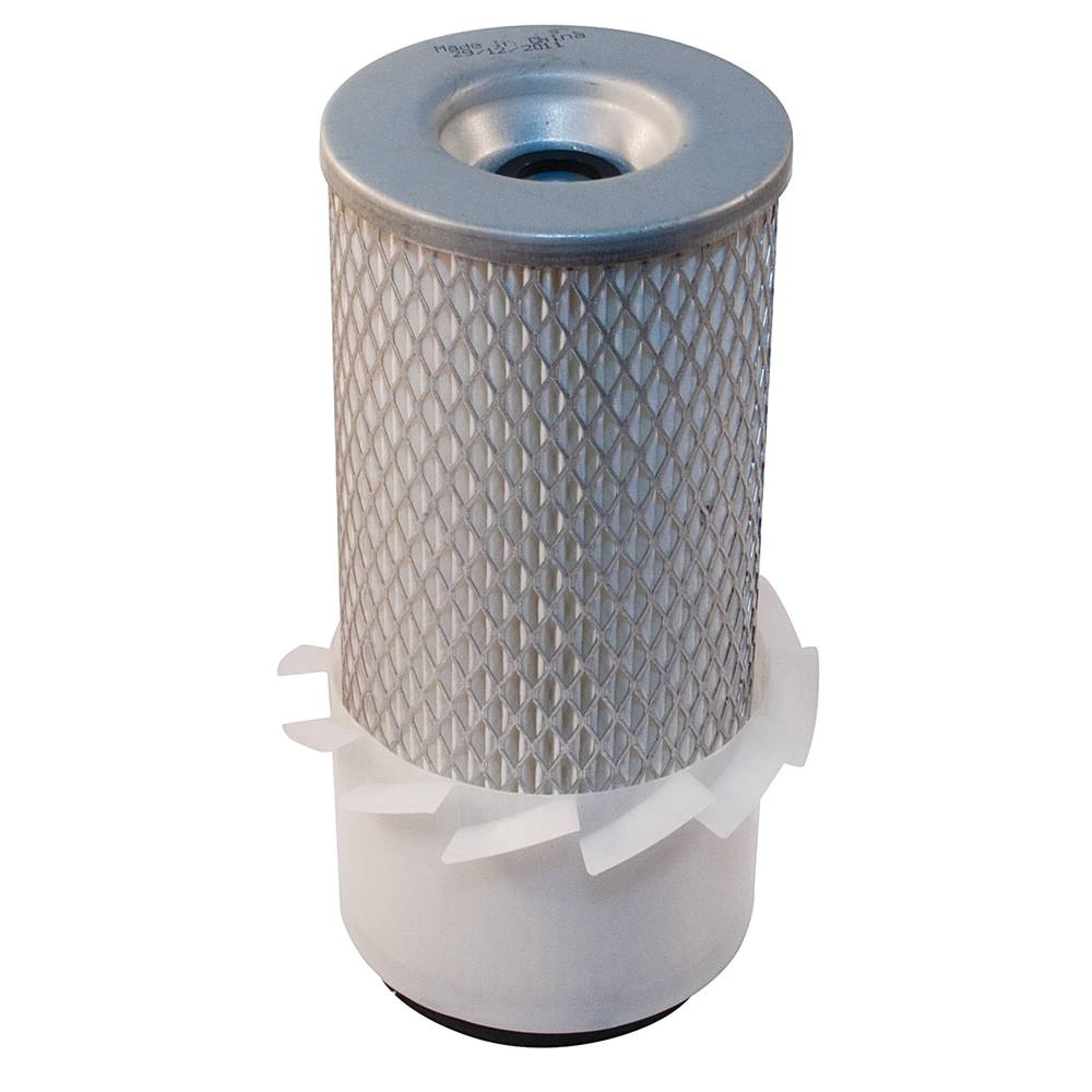

Figure 1: The Stens 100-465 Air Filter, designed for optimal engine air filtration.

2. Installation

Proper installation of the air filter is critical to prevent unfiltered air from entering the engine, which can cause damage. Always refer to your equipment's original manufacturer's service manual for specific, detailed instructions regarding air filter replacement for your particular model.

General Installation Steps:

1. Locate the Air Filter Housing: Identify the air filter housing on your equipment. It is typically a plastic or metal casing.
2. Open the Housing: Unlatch or unscrew the cover of the air filter housing.
3. Remove the Old Filter: Carefully remove the old air filter. Note its orientation for correct installation of the new filter.
4. Clean the Housing: Clean any dust, debris, or dirt from inside the air filter housing using a clean cloth or compressed air. Ensure no debris falls into the carburetor or engine intake.
5. Install the New Filter: Insert the Stens 100-465 Air Filter into the housing, ensuring it fits snugly and correctly. Verify that any gaskets or seals are properly seated to prevent air leaks.
6. Secure the Housing: Reattach the cover of the air filter housing, ensuring it is securely latched or screwed down.

Figure 2: A mechanic inspecting an engine, illustrating the typical location for air filter maintenance.

3. Operating Principles

The Stens 100-465 Air Filter functions by trapping airborne contaminants such as dust, dirt, and debris before they can enter the engine's combustion chamber. A clean air filter ensures that the engine receives a steady supply of clean air, which is essential for efficient fuel combustion and overall engine health.

When the air filter becomes clogged with particles, it restricts airflow to the engine, leading to reduced performance, increased fuel consumption, and potential engine damage over time. Therefore, maintaining a clean and properly functioning air filter is a fundamental aspect of engine operation and longevity.

4. Maintenance

Regular maintenance of your air filter is crucial for the optimal performance and lifespan of your equipment. The frequency of replacement depends on the operating conditions and the equipment manufacturer's recommendations.

Inspection and Replacement:

• Frequency: Inspect the air filter regularly, especially if operating in dusty or dirty environments. Replace the filter according to the equipment manufacturer's schedule or when it appears dirty.
• Signs of a Dirty Filter: A dirty filter may appear discolored, clogged with debris, or show signs of damage.
• Types of Filters: Stens offers various filter types, including foam, paper, and woven fabric filters, as well as canister and foam pre-filters. Ensure you are using the correct type for your equipment.
• Proper Fit: Always ensure the replacement filter fits snugly to eliminate any air bypass, which would allow unfiltered air into the engine.

Figure 3: An assortment of Stens air filters, demonstrating the variety of filter types available for different applications.

5. Troubleshooting

If your equipment is experiencing performance issues, the air filter may be a contributing factor. Here are some common issues and their potential solutions:

• Reduced Engine Power: A clogged air filter restricts airflow, leading to a loss of engine power.
  Solution: Inspect and replace the air filter if it is dirty or clogged.
• Increased Fuel Consumption: An engine struggling to draw air due to a dirty filter will consume more fuel.
  Solution: Replace the air filter to restore proper airflow and fuel efficiency.
• Engine Misfires or Rough Idling: Insufficient or inconsistent airflow can cause the engine to run poorly.
  Solution: Check the air filter for cleanliness and proper seating. Replace if necessary.
• Black Smoke from Exhaust: This can indicate an overly rich fuel mixture due to restricted air intake.
  Solution: Replace the air filter.
• Dust or Debris in Carburetor/Engine: If the filter is damaged or improperly installed, contaminants can bypass it.
  Solution: Ensure the filter is correctly installed and the housing is sealed. Replace any damaged filters immediately.

6. Specifications

This filter is compatible with a wide range of equipment, including various models from Bobcat, Case, John Deere, Kubota, Skyjack, Toro, and Vermeer. Refer to the product description or your equipment's manual for a complete list of compatible models.

7. Warranty Information

Specific warranty details for the Stens 100-465 Air Filter are typically provided by the retailer or Stens directly at the time of purchase. Please retain your proof of purchase for any warranty claims.

For the most accurate and up-to-date warranty information, please consult the official Stens website or contact their customer support.

8. Customer Support

If you have any questions regarding the Stens 100-465 Air Filter, its installation, or compatibility, please contact Stens customer support or the retailer from whom you purchased the product.

You can also visit the official Stens Store on Amazon for more information and to explore other Stens products.
