POJJO HG90-00100 Tip Out Sink Front 90 Degree Pivot Hinge User Manual

1. Introduction

The POJJO HG90-00100 Tip Out Sink Front 90 Degree Pivot Hinge is designed for efficient installation on 3/4-inch wood panels. Constructed from durable 2mm thick chrome-plated steel, this hinge allows a full 90-degree opening. Its unique scissor design facilitates the door to pull up and out, making it suitable for various applications, including inset doors, laundry hampers, or converting vertical drawer faces to horizontal tip-out access.

Key features include:

• Chrome-coated 2mm thick steel construction.
• Designed to open out and down.
• Locks securely at a 90-degree open position.
• Engineered for quick and straightforward installation on 3/4-inch wood.
• Provides smooth opening and closing action.

2. Safety Information

Always exercise caution when installing hardware. Wear appropriate safety gear, such as eye protection. Ensure all fasteners are securely tightened to prevent injury or damage. Keep small parts away from children. If you are unsure about any installation step, consult a qualified professional.

3. Package Contents

Your package should contain the following items:

• 2 x POJJO HG90-00100 Tip Out Sink Front 90 Degree Pivot Hinges
• Mounting Screws (Note: For optimal performance and to prevent stripping, consider using high-quality alternative screws if the provided ones prove insufficient for your wood type.)

Figure 3.1: Contents of the package, showing two extended hinges.

4. Specifications

5. Setup and Installation

The POJJO HG90-00100 hinges are designed for installation on 3/4-inch thick wood panels, typically for sink front tip-out trays or similar applications. Precise measurements are critical for proper function and alignment.

Tools Required:

• Measuring Tape or Ruler
• Pencil
• Drill with appropriate drill bits for pilot holes
• Screwdriver (Phillips head recommended)
• Safety Glasses

Installation Steps:

1. Prepare the Cabinet and Panel: Ensure the cabinet opening and the tip-out panel (door) are clean and free of obstructions. The panel should be 3/4-inch thick for optimal fit.
2. Determine Hinge Placement: The hinges are typically mounted on the inside of the cabinet frame and the back of the tip-out panel. Carefully measure and mark the desired location for each hinge. The scissor design requires sufficient clearance for the panel to pull out and down.
3. Mount Hinges to Cabinet Frame:
   • Position one hinge on the inside of the cabinet frame, aligning it with your marks.
   • Using a pencil, mark the screw hole locations.
   • Drill pilot holes at the marked locations. Pilot holes should be slightly smaller than the screw diameter to prevent wood splitting.
   • Secure the hinge to the cabinet frame using the provided screws or suitable alternatives. Do not overtighten.
   • Repeat for the second hinge on the opposite side of the cabinet frame.
4. Attach Hinges to Tip-Out Panel:
   • With the hinges attached to the cabinet, carefully align the tip-out panel with the hinges. The panel will attach to the flat, triangular portion of the hinge.
   • Mark the screw hole locations on the back of the tip-out panel.
   • Remove the panel and drill pilot holes at the marked locations.
   • Re-align the panel with the hinges and secure it using screws. Ensure the panel is level and operates smoothly.
5. Test Operation: Gently open and close the tip-out panel to ensure smooth movement and that it locks securely at the 90-degree open position. Adjust screw tightness if necessary to optimize movement without binding.

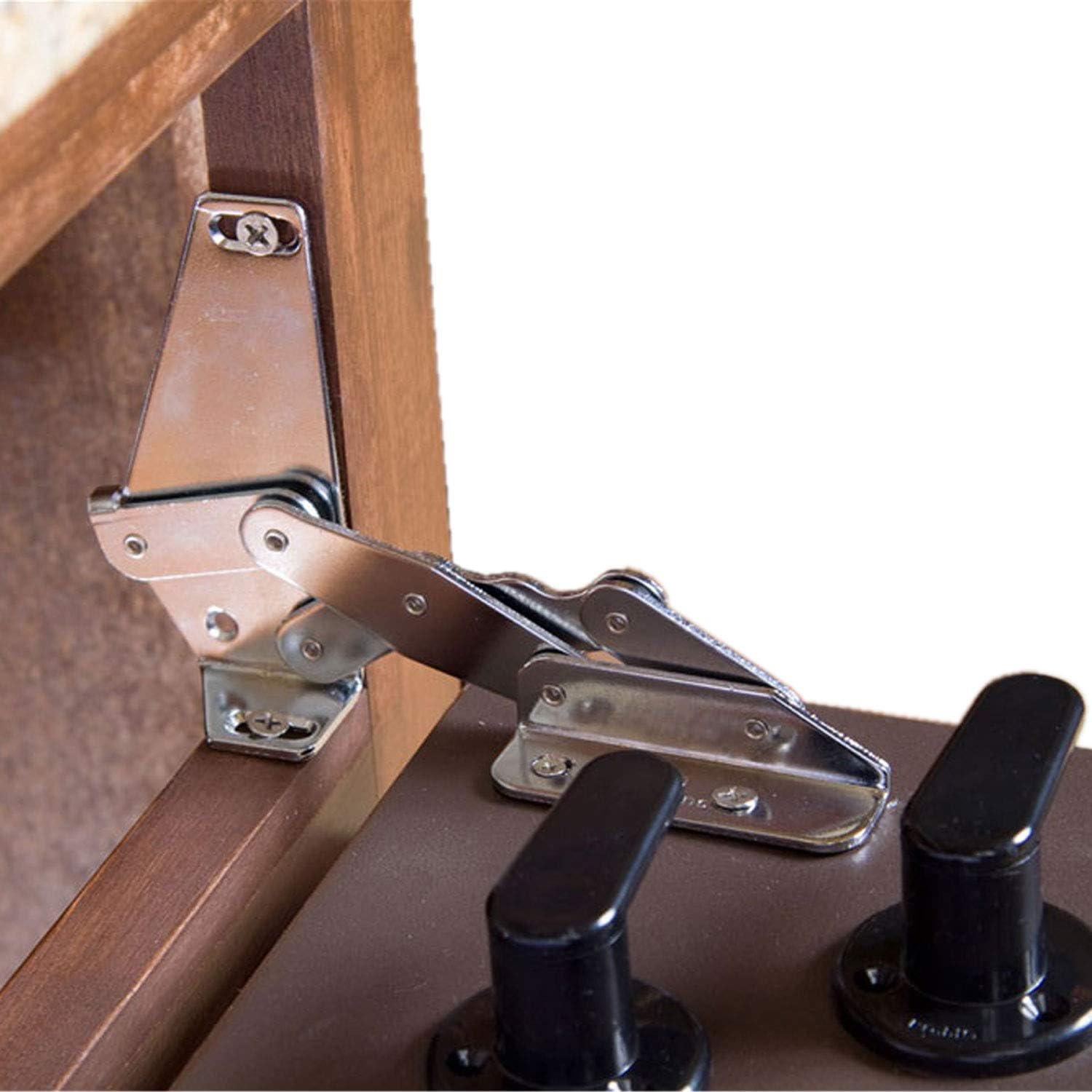

Figure 5.1: Example of an installed POJJO HG90-00100 hinge with a panel in the open position.

Figure 5.2: The POJJO HG90-00100 hinges in their folded (closed) state.

6. Operation

Once installed, the POJJO HG90-00100 hinge allows the attached panel to pivot outwards and downwards, achieving a full 90-degree open position. This mechanism is designed to provide ample access to the space behind the panel, such as a sink front tray. To open, gently pull the panel outwards and downwards until it reaches its fully extended and locked 90-degree position. To close, push the panel upwards and inwards until it is flush with the cabinet frame.

7. Maintenance

The POJJO HG90-00100 hinges are constructed from durable chrome-plated steel and require minimal maintenance. Periodically check the screws for tightness and re-tighten if necessary to ensure continued smooth operation. Clean the hinges with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the chrome finish.

8. Troubleshooting

• Panel does not open or close smoothly:
  • Check for obstructions behind the panel or within the hinge mechanism.
  • Ensure all mounting screws are tightened appropriately. Over-tightening or under-tightening can affect movement.
  • Verify that the hinges are installed level and parallel to each other. Misalignment can cause binding.
• Panel sags or feels loose:
  • Inspect all mounting screws for looseness and tighten them.
  • If screws are stripped, consider using larger screws or wood anchors for a more secure fit.
  • Ensure the wood panel itself is not damaged or warped.

9. Warranty and Support

For information regarding warranty coverage or technical support for your POJJO HG90-00100 Tip Out Sink Front 90 Degree Pivot Hinges, please refer to the manufacturer's official website or contact POJJO customer service directly. Contact details are typically available on the product packaging or the brand's online presence.
