Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Minka-Aire WC210 Wall Mount Fan Control. The WC210 is designed to provide convenient control over your ceiling fan's speed and light functions from a wall-mounted unit. Please read these instructions carefully before beginning installation or operation to ensure proper function and safety.

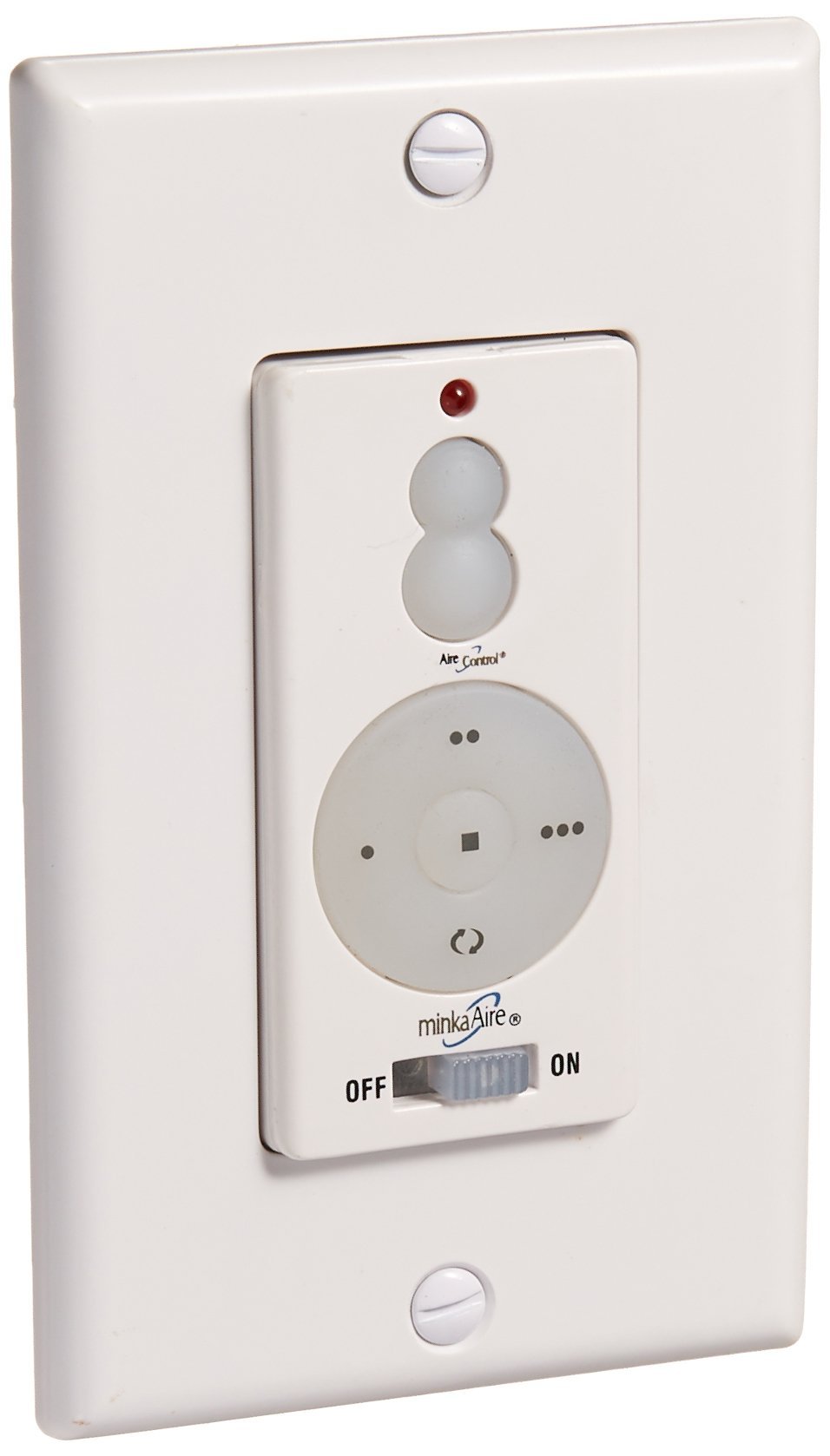

Image: Front view of the Minka-Aire WC210 Wall Mount Fan Control. This image displays the ivory-colored wall control unit with buttons for fan speed and light operation.
Safety Information
- WARNING: Always disconnect power at the circuit breaker before installing or servicing the fan control.
- Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Do not use this control with solid-state fan speed controllers.
- Ensure all wiring connections are secure and properly insulated.
- This unit is designed for indoor use only.
Setup and Installation
The Minka-Aire WC210 is a wall-mounted control unit that requires hardwiring. It functions as a wireless remote transmitter to a receiver located within your ceiling fan.
Wiring Instructions:
- Turn off power: Locate the circuit breaker that supplies power to the fan and turn it off. Verify power is off using a voltage tester.
- Remove existing switch: Carefully remove the existing wall switch from the wall box.
- Connect wiring: Connect the wires from the wall box to the WC210 control unit according to the wiring diagram provided with your fan or the WC210 packaging. Typically, this involves connecting the hot wire, load wire (to the fan), and ground wire. The WC210 acts as a main power source switch for the fan and light.
- Mount the control: Secure the WC210 control unit into the wall box using the provided screws. Attach the wall plate.
- Restore power: Turn the power back on at the circuit breaker.
Frequency Setting:
The WC210 features multiple selectable operating frequencies (up to 64) to prevent interference with other remote-controlled devices. Before initial use, ensure the frequency dip switches on the WC210 unit match the frequency dip switches on the receiver unit inside your ceiling fan. Refer to your ceiling fan's manual for instructions on accessing its receiver.
Operating Instructions
The Minka-Aire WC210 provides intuitive control over your ceiling fan and its integrated light.
- Fan Speed Control: The control unit typically features buttons to adjust the fan speed. Press the appropriate button to cycle through available speeds (e.g., High, Medium, Low, Off). The WC210 supports 3 fan speeds.
- Light Control: A separate button or set of buttons controls the fan's light. Press to turn the light on or off. If your fan supports dimming, press and hold the light button to adjust the brightness. Release the button when the desired brightness is achieved.
- Power On/Off: The main power button on the unit will turn the fan and light on or off. This acts as a primary power cut-off.
Maintenance
- Cleaning: To clean the control unit, wipe it with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- No User-Serviceable Parts: The WC210 contains no user-serviceable parts. Do not attempt to open or repair the unit yourself.
- Frequency Check: If you experience interference or loss of control, verify that the frequency settings on the wall control and the fan's receiver still match.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan/Light does not respond to control. |
|
|
| Intermittent control or interference. |
|
|
| Light flickers or does not dim properly. |
|
|
| Unit failed after a power surge or short. |
|
|
Specifications
- Brand: MINKA-AIRE
- Model Number: WC210
- Control Method: Remote, Touch
- Mounting Type: Wall Mount
- Number of Fan Speeds: 3
- Finish: Ivory
- Item Weight: 1 Pound
- UPC: 706411026232
- First Available: March 8, 2014
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your original purchase or visit the official MINKA-AIRE website. You may also contact MINKA-AIRE customer service directly for assistance with your WC210 Wall Mount Fan Control.
