EBC Brakes CT004 Clutch Basket Holding Tool Instruction Manual

1. Introduction

The EBC Brakes CT004 Clutch Basket Holding Tool is a specialized instrument engineered to provide a firm grip on the clutch basket during motorcycle clutch maintenance. This robust tool prevents the clutch basket from rotating, allowing for the safe and efficient removal or installation of the clutch hub nut. Its durable construction ensures longevity and reliable performance for both professional mechanics and home users performing clutch service.

Image 1.1: The EBC Brakes CT004 Clutch Basket Holding Tool, a specialized tool for securing motorcycle clutch baskets.

2. Safety Information

Always prioritize safety when working on motorcycles. Failure to follow safety precautions can result in injury or damage to the motorcycle.

• Wear Personal Protective Equipment (PPE): Always wear appropriate safety glasses, gloves, and other protective gear to prevent injury.
• Read Motorcycle Service Manual: Consult your motorcycle's official service manual for specific procedures, torque specifications, and additional safety warnings related to clutch maintenance.
• Ensure Stability: Before beginning work, ensure the motorcycle is securely supported on a stable stand to prevent it from falling.
• Proper Tool Usage: Use the CT004 tool only for its intended purpose. Do not modify the tool or use it if it shows signs of damage.
• Clean Work Area: Keep your work area clean and free of clutter to prevent accidents.

3. Package Contents

Verify that all items are present upon opening the package:

• 1 x EBC Brakes CT004 Clutch Basket Holding Tool

4. Specifications

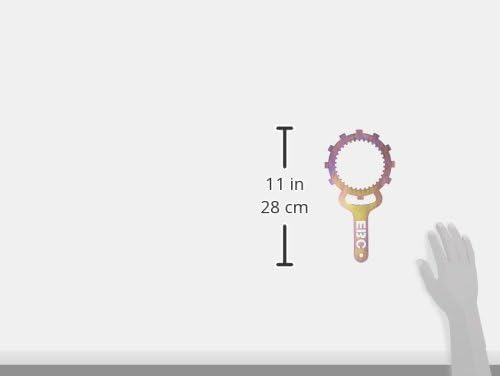

Image 4.1: The CT004 tool shown with approximate dimensions for reference.

5. Setup and Preparation

Before using the EBC Brakes CT004 Clutch Basket Holding Tool, ensure you have completed the following preparatory steps:

1. Secure the Motorcycle: Place your motorcycle on a stable stand, ensuring it is level and cannot tip over during the procedure.
2. Drain Engine Oil: Depending on your motorcycle's design, it may be necessary to drain the engine oil before removing the clutch cover to prevent spillage. Refer to your service manual.
3. Remove Clutch Cover: Carefully remove the clutch cover and any associated gaskets or components to expose the clutch basket. Keep track of all fasteners and their locations.
4. Inspect Clutch Basket: Briefly inspect the clutch basket for any obvious damage or wear that might affect tool engagement.

6. Operating Instructions

Follow these steps to effectively use the EBC Brakes CT004 Clutch Basket Holding Tool:

1. Position the Tool: Carefully place the CT004 tool onto the clutch basket. Ensure that the teeth of the tool fully engage with the corresponding teeth on the outer edge of the clutch basket.
2. Brace the Tool: Once engaged, position the handle of the tool so it rests firmly against a solid, immovable part of the engine casing or motorcycle frame. This bracing action is crucial to prevent the clutch basket from rotating when torque is applied.
3. Loosen the Clutch Hub Nut: Using the appropriate socket and wrench (often a large socket and breaker bar), apply steady force to loosen the clutch hub nut. The CT004 tool will hold the clutch basket securely, allowing you to break the nut free without damaging the clutch components.
4. Tighten the Clutch Hub Nut (Installation): During reassembly, after installing the clutch components, use the CT004 tool in the same manner to hold the clutch basket. Apply the specified torque to the clutch hub nut as per your motorcycle's service manual.
5. Remove the Tool: Once the clutch hub nut is properly serviced (loosened or tightened), carefully disengage and remove the CT004 tool from the clutch basket.
6. Reassemble Components: Reinstall the clutch components, clutch cover, and refill engine oil as per your motorcycle's service manual.

7. Maintenance and Care

Proper maintenance will extend the life of your CT004 tool:

• Cleaning: After each use, wipe down the tool with a clean cloth to remove any oil, grease, or debris. A mild degreaser can be used if necessary.
• Storage: Store the tool in a dry environment to prevent rust and corrosion. Keep it away from excessive moisture and corrosive chemicals.
• Inspection: Periodically inspect the tool for any signs of wear, bending, cracks, or damage to the teeth. Discontinue use if any damage is observed, as this could compromise its effectiveness and safety.

8. Troubleshooting

If you encounter issues while using the CT004 tool, consider the following:

• Tool slips during use:
  • Ensure the tool's teeth are fully and deeply engaged with the clutch basket teeth.
  • Verify that the tool's handle is securely braced against a stable, immovable part of the motorcycle.
  • Inspect both the tool's teeth and the clutch basket's teeth for excessive wear or damage. Worn teeth may prevent proper engagement.
• Tool does not fit the clutch basket:
  • Confirm that the EBC Brakes CT004 model is compatible with your specific motorcycle make, model, and year. Clutch basket designs can vary significantly.
  • Refer to the EBC Brakes official website or product compatibility charts for verification.

9. Warranty and Support

For detailed warranty information regarding your EBC Brakes CT004 Clutch Basket Holding Tool, please refer to the official EBC Brakes website or contact their customer service department directly. Keep your original purchase receipt as proof of purchase for any warranty claims. EBC Brakes is committed to providing quality products and support for their customers.
