Exell A132 Alkaline 3V Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Exell A132 Alkaline 3V Battery. Please read these instructions carefully before use and retain them for future reference.

2. Product Overview

The Exell A132 is a 3-volt alkaline battery designed for various electronic devices. It serves as a replacement for several battery models, offering reliable power for compatible applications.

2.1 Key Features

• Voltage: 3 Volts
• Chemistry: Alkaline
• Capacity: Approximately 600 Milliamp Hours (mAh)
• Dimensions: 0.66 inches (diameter) x 1.29 inches (height)
• Weight: Approximately 0.32 ounces

2.2 Compatible Models

This battery is compatible with and replaces models such as:

• MALLORY TR132BH
• Eveready 132A, A132, 2LR50, H2PA, EN132A, PC132A
• TR132, TR132T, 2MR50, 2NR50
• E132, E132N, EPX132, H2P, H132R

2.3 Intended Use

The Exell A132 battery is suitable for powering various devices, including but not limited to:

• Night vision binoculars
• Photographic equipment
• Pagers
• Instruments
• General electronics
• Test equipment
• Cameras

Figure 1: Exell A132 Alkaline 3V Battery. This image shows the cylindrical battery with "Exell A132 Alkaline 3V" printed on its side, indicating its brand, model, chemistry, and voltage.

Figure 2: Exell A132 Battery Specifications. This image highlights the battery's voltage (3V) and amperage (600mAh), along with a visual representation of the battery.

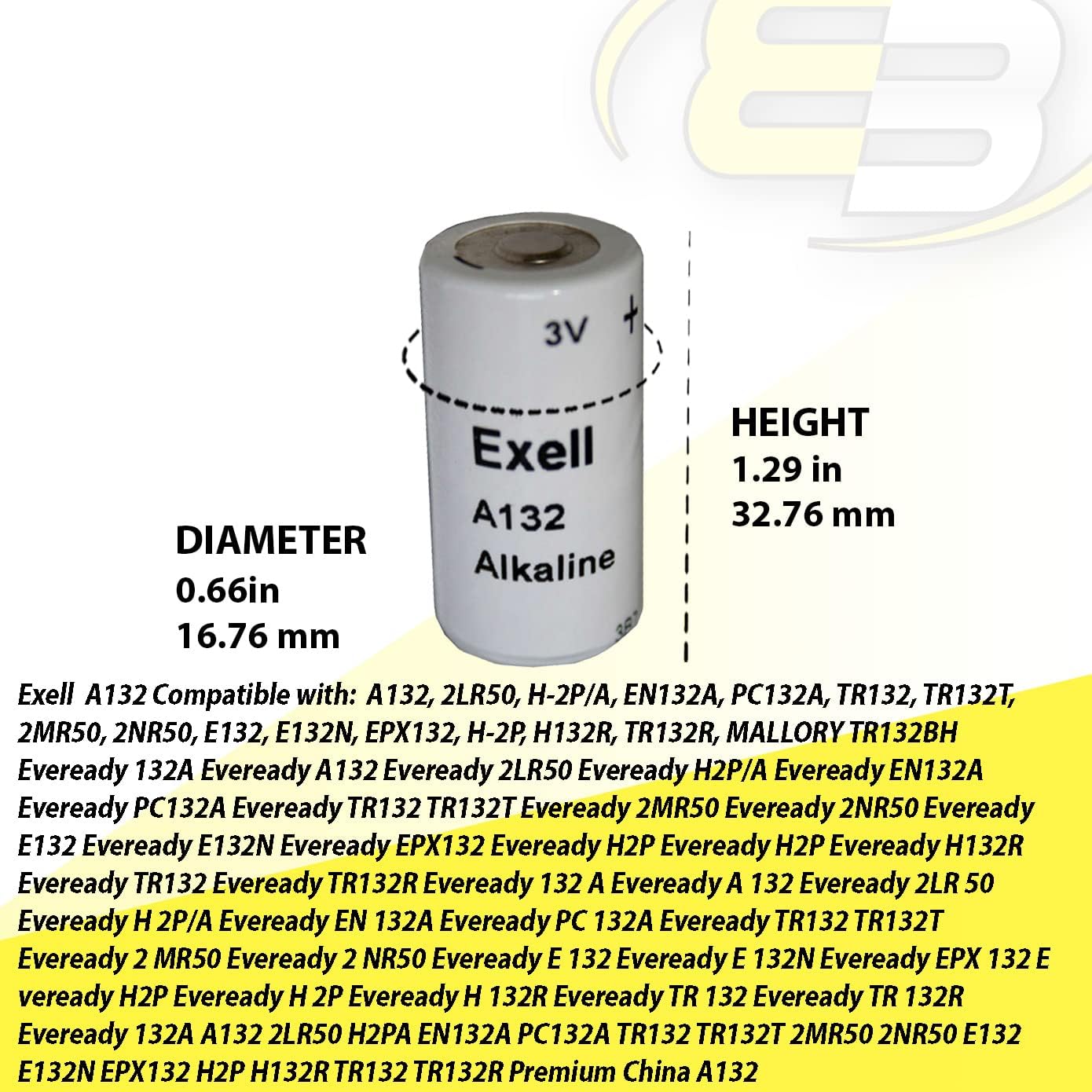

Figure 3: Exell A132 Battery Dimensions. This image illustrates the battery's diameter (0.66 inches / 16.76 mm) and height (1.29 inches / 32.76 mm), providing precise measurements.

3. Setup and Installation

Follow these steps to properly install the Exell A132 battery into your device:

1. Identify Battery Compartment: Locate the battery compartment on your electronic device. Refer to your device's instruction manual if you are unsure.
2. Open Compartment: Open the battery compartment cover. This may involve sliding a latch, unscrewing a panel, or pressing a release button.
3. Observe Polarity: Note the positive (+) and negative (-) terminals marked inside the compartment. Batteries must be inserted with correct polarity.
4. Insert Battery: Carefully insert the Exell A132 battery, aligning its positive (+) end with the positive terminal in the compartment and its negative (-) end with the negative terminal.
5. Close Compartment: Securely close the battery compartment cover. Ensure it is latched or screwed shut to prevent the battery from dislodging.
6. Test Device: Power on your device to confirm proper battery installation and functionality.

Important: Always ensure the device is turned off before installing or replacing batteries.

4. Operating Guidelines

The Exell A132 battery is designed for single use. Once depleted, it should be replaced with a new battery. For optimal performance:

• Use batteries only in devices for which they are specified.
• Do not mix old and new batteries, or batteries of different types.
• Remove batteries from devices that will not be used for extended periods to prevent potential leakage.

5. Maintenance and Storage

5.1 Storage

• Store batteries in a cool, dry place at room temperature.
• Avoid extreme temperatures, as they can reduce battery life and performance.
• Keep batteries in their original packaging until ready for use to prevent short-circuiting.
• Do not store batteries with metal objects like coins or keys.

5.2 Disposal

Dispose of used batteries according to local regulations. Many communities offer recycling programs for batteries. Do not dispose of batteries in household waste or by incineration.

6. Troubleshooting

If your device is not functioning correctly after installing the Exell A132 battery, consider the following:

• Device Not Powering On:
  • Check if the battery is inserted with the correct polarity (+/-).
  • Ensure the battery compartment is securely closed.
  • Verify that the battery is new and not depleted.
  • Inspect battery contacts in the device for corrosion or dirt; clean if necessary.
• Short Battery Life:
  • Ensure the battery is suitable for the device's power requirements.
  • Check if the device itself has a high power consumption or a fault.
  • Verify the battery's freshness date.

If issues persist, consult your device's manual or contact the device manufacturer for further assistance.

7. Specifications

8. Safety Information

Please observe the following safety precautions to prevent injury or damage:

• Keep out of reach of children: Batteries can be a choking hazard and may cause serious internal burns if swallowed. Seek immediate medical attention if a battery is swallowed.
• Do not recharge: This is a primary (non-rechargeable) alkaline battery. Attempting to recharge it may cause leakage, fire, or explosion.
• Do not disassemble or modify: Tampering with the battery can lead to leakage, overheating, or explosion.
• Do not expose to heat or fire: High temperatures can cause batteries to leak or explode.
• Avoid short-circuiting: Do not allow metal objects to contact both terminals of the battery simultaneously, as this can cause heat generation and potential fire.
• Handle with care: If a battery leaks, avoid contact with skin and eyes. If contact occurs, rinse immediately with plenty of water and seek medical advice.

9. Warranty and Support

For information regarding warranty coverage or product support for your Exell A132 battery, please refer to the packaging or contact Exell Battery directly through their official website or customer service channels. Keep your purchase receipt as proof of purchase.

Manufacturer: Exell Battery

Website: Exell Battery Store on Amazon
