1. Product Overview

The Genuine Toyota Parts 53510-AE011 Hood Latch is an authentic replacement component designed to ensure the secure closure of your vehicle's hood. This part is manufactured to Toyota's specifications, providing reliable performance and a precise fit for compatible vehicles.

Figure 1: Front view of the Genuine Toyota Parts 53510-AE011 Hood Latch, showing its primary locking mechanism and mounting points.

2. Safety Information

Always prioritize safety when working on your vehicle. Failure to follow these safety guidelines may result in injury or damage to the vehicle.

• Ensure the vehicle is parked on a level surface with the parking brake engaged.
• Turn off the engine and remove the key from the ignition.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Allow hot engine components to cool before beginning work.
• If you are unsure about any step, consult a qualified automotive technician.

3. Package Contents

Verify that all components are present before beginning installation:

• One (1) Genuine Toyota Parts 53510-AE011 Hood Latch

4. Installation Instructions

This section outlines the general procedure for replacing the hood latch. Specific steps may vary slightly depending on your vehicle model. Recommended tools include a 10mm socket wrench and a slotted screwdriver.

1. Prepare the Vehicle: Ensure the vehicle is safely parked and the engine is off. Open the hood and secure it with the prop rod.
2. Access the Latch: Depending on your vehicle, you may need to remove a plastic trim panel or grille components to access the hood latch. Use a slotted screwdriver to carefully remove any fasteners holding these panels.
3. Disconnect Cables: Locate the hood release cable and any secondary safety latch cables connected to the existing hood latch. Carefully disconnect them. Note their orientation for reinstallation.
4. Remove Old Latch: Using a 10mm socket wrench, unbolt the existing hood latch from its mounting points on the vehicle's frame. Remove the old latch.
5. Install New Latch: Position the new Genuine Toyota Parts 53510-AE011 Hood Latch in place. Align the mounting holes and secure it with the original bolts. Tighten the bolts firmly but do not overtighten.
6. Reconnect Cables: Reattach the hood release cable and any secondary safety latch cables to the new latch. Ensure they are securely connected and move freely.
7. Test Operation: Before reassembling trim panels, gently close the hood to the first latch position. Pull the interior hood release lever to ensure it opens correctly. Then, close the hood completely and verify it latches securely. Test the secondary safety latch as well.
8. Reassemble: Once proper operation is confirmed, reattach any removed trim panels or grille components.

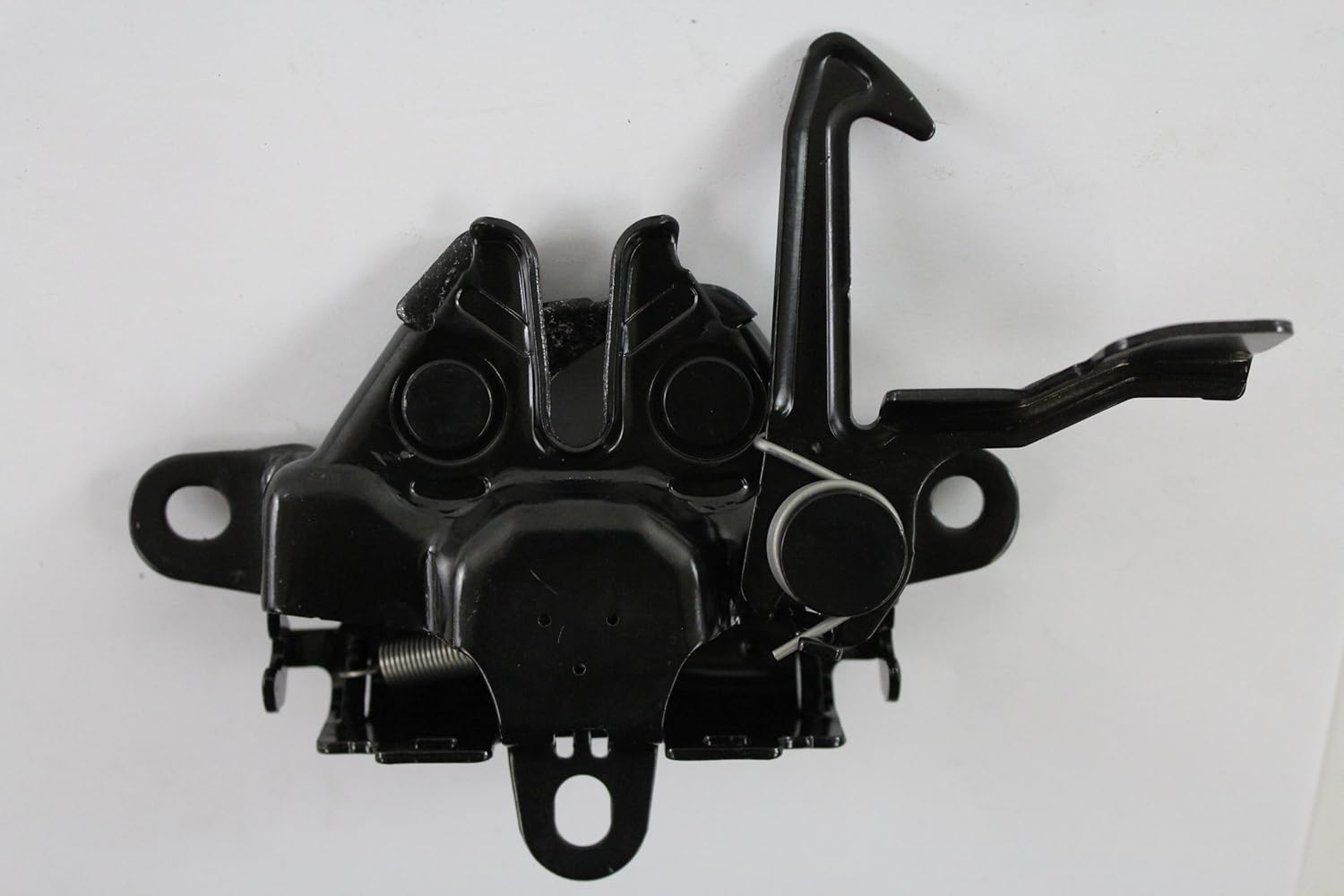

Figure 2: Rear view of the Genuine Toyota Parts 53510-AE011 Hood Latch, illustrating the spring mechanism and cable attachment point.

5. Operating Instructions

Once installed, the hood latch operates as follows:

• Opening the Hood: Pull the interior hood release lever located inside the vehicle. This will release the primary latch, causing the hood to pop up slightly. Then, locate the secondary safety latch lever under the front edge of the hood and push or pull it to fully release the hood.
• Closing the Hood: Lower the hood gently until it is about 10-12 inches (25-30 cm) above the closed position. Then, release it, allowing its weight to engage both the primary and secondary latches. Ensure the hood is fully closed and secure before driving. Do not slam the hood forcefully.

6. Maintenance

Regular maintenance helps ensure the longevity and proper function of your hood latch:

• Lubrication: Periodically apply a small amount of automotive-grade grease or silicone spray to the moving parts of the latch mechanism to ensure smooth operation and prevent corrosion.
• Inspection: Routinely inspect the latch for any signs of wear, damage, or corrosion. Check the hood release cable for fraying or stiffness.
• Cleaning: Keep the latch area free from dirt, debris, and road salt, which can impede its function.

7. Troubleshooting

If you encounter issues with your hood latch, consider the following:

• Hood Not Latching: Check for obstructions in the latch mechanism or striker plate. Ensure the latch is properly aligned and securely bolted. Lubricate moving parts.
• Hood Not Opening: Verify the interior hood release cable is connected and functioning. Check for stiffness or binding in the cable. Inspect the latch for corrosion or damage preventing release.
• Loose Hood: If the hood feels loose after closing, the latch may need adjustment or the striker plate might be misaligned. Consult a professional if adjustments are needed.

8. Specifications

9. Warranty Information

For specific warranty details regarding the Genuine Toyota Parts 53510-AE011 Hood Latch, please refer to the official warranty documentation provided by Toyota or consult your authorized Toyota dealer. Warranty terms typically cover manufacturing defects for a specified period.

10. Support and Contact

If you require further assistance, have questions about installation, or need to report an issue, please contact your authorized Toyota dealer or visit the official Toyota customer support website. When contacting support, please have your vehicle's VIN and the part number (53510-AE011) readily available.

Toyota Official Website: www.toyota.com
