Elk Lighting Gloucester 12+6 Light Chandelier

Introduction

Thank you for purchasing the Elk Lighting Gloucester 12+6 Light Chandelier. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

Important Safety Instructions

• WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing.
• All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code (NEC).
• Consult a qualified electrician if you are unsure about the installation process.
• This fixture is intended for indoor use only. Do not expose to water or moisture.
• Ensure the mounting surface can support the weight of the fixture (approximately 46 lbs).
• Use only the specified bulb type and wattage (18 Light 60 watt Candelabra Base Bulb, E12, not included).
• Do not touch the bulb when the fixture is operating or immediately after turning it off.
• Keep flammable materials away from the light fixture.

Package Contents

Carefully unpack your chandelier and identify all components. Keep all packaging materials until you are sure all parts are present and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support immediately.

• Chandelier Frame (Wrought Iron, Antique Bronze Finish)
• Canopy (5 inch diameter)
• Chain (72 inches)
• Cord (144 inches)
• Safety Cable (46 lb capacity)
• Mounting Hardware
• Instruction Manual

Image: The Elk Lighting Gloucester 12+6 Light Chandelier, showcasing its antique bronze finish and intricate wrought iron design with 18 candelabra-style light sockets.

Setup & Installation

Tools Required (Not Included)

• Phillips Head Screwdriver
• Flat Head Screwdriver
• Wire Strippers
• Pliers
• Electrical Tape
• Ladder
• Voltage Tester

Assembly Steps

1. Turn Off Power: Before starting, ensure the power to the circuit you are working on is turned off at the main circuit breaker or fuse box.
2. Prepare Mounting Location: Ensure the junction box is securely mounted and capable of supporting the fixture's weight. Install the mounting bracket to the junction box.
3. Adjust Chain Length: Determine the desired hanging height for your chandelier. Adjust the chain length by removing links as necessary. The overall height can be up to 151 inches.
4. Wire Connections: Carefully connect the fixture's electrical wires to the house wires. Connect the black wire from the fixture to the black (hot) wire from the junction box, the white wire from the fixture to the white (neutral) wire from the junction box, and the ground wire from the fixture to the bare copper or green ground wire from the junction box. Secure connections with wire nuts and electrical tape.
5. Secure Canopy: Carefully push the wires into the junction box and raise the canopy to the ceiling, securing it to the mounting bracket with the provided screws.
6. Install Bulbs: Screw 18 Candelabra Base (E12) bulbs (max 60 watts each, not included) into the sockets. LED bulbs are compatible.
7. Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker or fuse box.

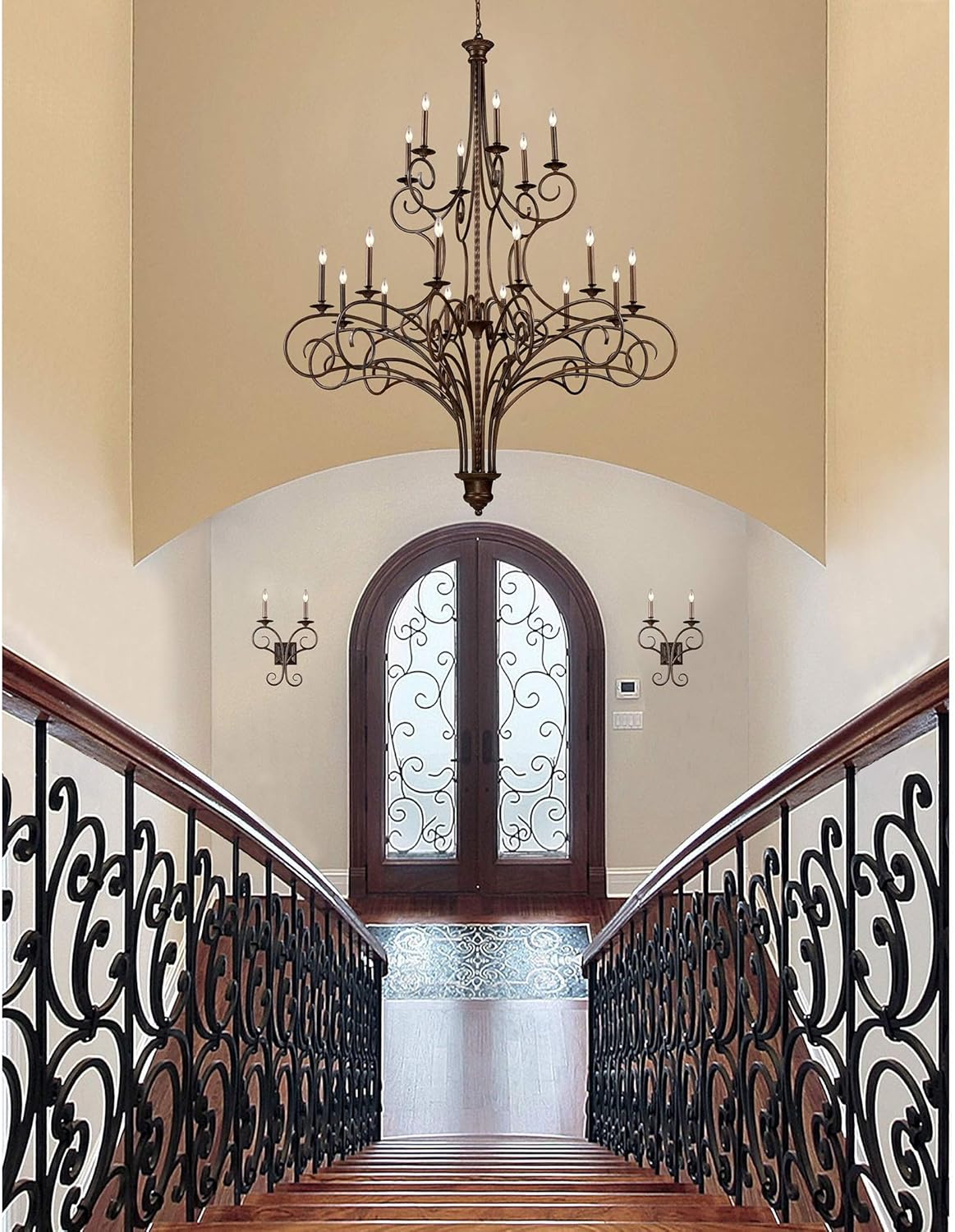

Image: The Elk Lighting Gloucester Chandelier elegantly installed in a grand foyer, demonstrating its impressive scale and design in a residential setting.

Operating Instructions

The Elk Lighting Gloucester Chandelier is designed for simple operation via a standard wall switch. If connected to a compatible dimmer switch (not included), the light output can be adjusted.

• Turning On/Off: Use the wall switch connected to the fixture to turn the chandelier on or off.
• Dimming (Optional): If a compatible dimmer switch is installed, rotate or slide the dimmer control to adjust the brightness level of the chandelier. Ensure that the bulbs used are dimmable.

Maintenance

Cleaning

• Always disconnect power to the fixture before cleaning.
• Wipe the fixture with a soft, dry cloth.
• Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.

Bulb Replacement

• Ensure the fixture is off and has cooled down before replacing bulbs.
• Unscrew the old bulb and screw in a new E12 Candelabra Base bulb of the correct wattage (max 60W).

Troubleshooting

If you experience issues with your chandelier, refer to the table below for common problems and solutions.

Product Specifications

Warranty and Customer Support

Warranty Information

This Elk Lighting fixture comes with a 1-year manufacturer's warranty against defects in materials and workmanship from the date of purchase. This warranty does not cover damage caused by improper installation, misuse, abuse, or normal wear and tear.

Customer Support

For technical assistance, missing parts, or warranty claims, please contact Elk Home customer support. Refer to the product packaging or the Elk Home official website for the most current contact information.

Please have your model number (15044/12+6) and proof of purchase ready when contacting support.
