Smays 3.5mm x 1.35mm Barrel DC Extension Cord User Manual

Introduction

This user manual provides essential information for the proper use, installation, and maintenance of your Smays 3.5mm x 1.35mm Barrel DC Extension Cord. This 16-foot extension cord is designed to extend the reach of DC power adapters for various electronic devices, including compatible Foscam IP cameras such as the FI8918W and FI8908W. Please read this manual thoroughly before use to ensure optimal performance and safety.

Product Overview

Components

• One (1) Smays 3.5mm x 1.35mm Barrel DC Extension Cord (16 feet / 4.8 meters)

Key Features

• Extended Reach: Provides an additional 16 feet (approximately 4.8 meters) of length for your DC power connection.
• Standard Connectors: Features a 3.5mm outer diameter and 1.35mm inner diameter barrel connector, commonly used for small electronic devices.
• Broad Compatibility: Ideal for extending power to devices like Foscam FI8918W, FI8908W, and other IP cameras, LED strips, and various 5V DC devices that use the specified barrel size.
• Durable Construction: Designed for reliable and long-lasting performance.

Figure 1: The Smays 16ft DC Extension Cord, neatly coiled. This image shows the full length of the black extension cable with its male and female barrel connectors at each end.

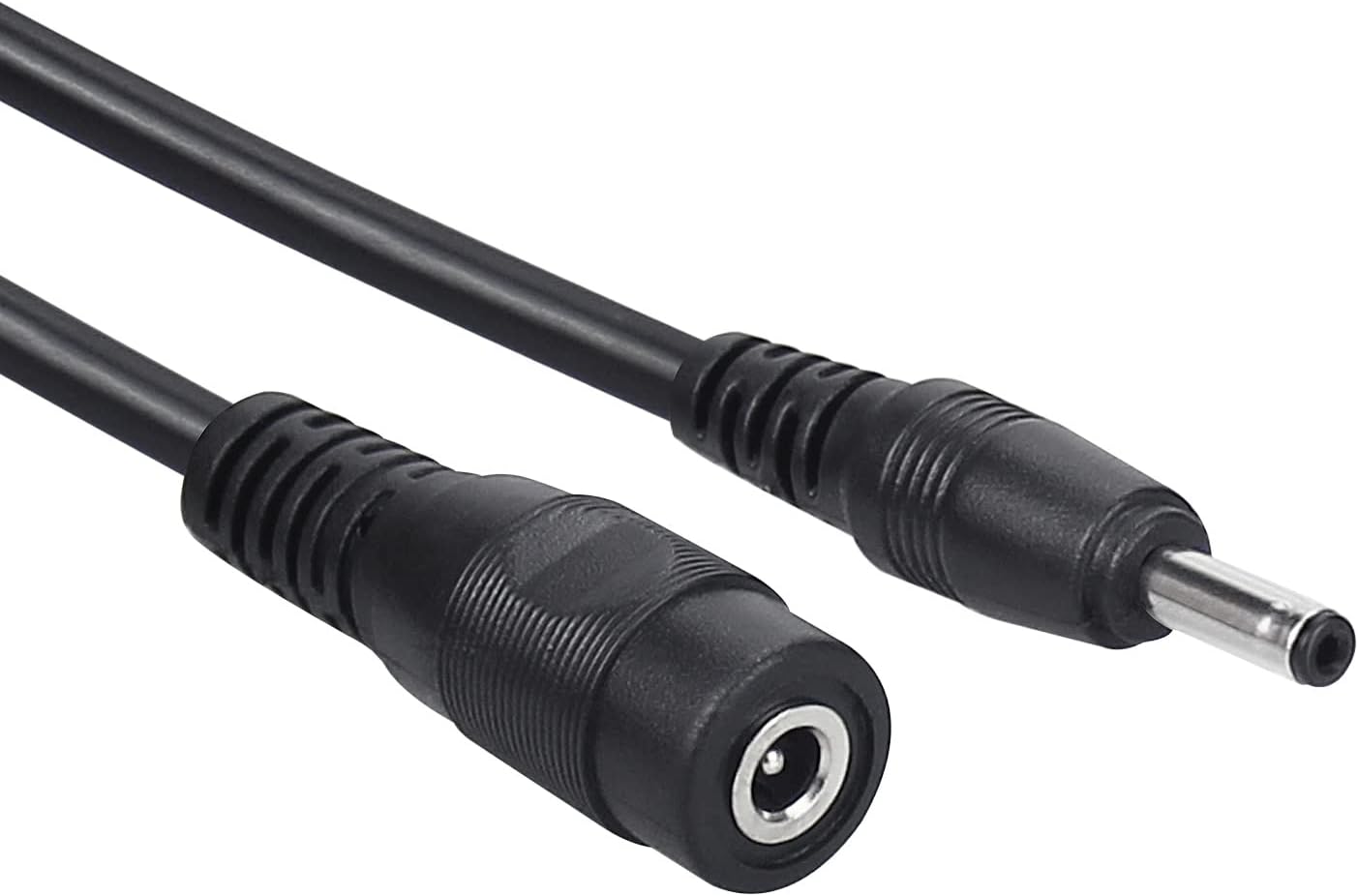

Figure 2: A close-up view of the male and female 3.5mm x 1.35mm DC barrel connectors. The male connector has a central pin, and the female connector has a central receptacle.

Setup and Installation

The Smays DC Extension Cord is designed for simple plug-and-play installation. Ensure that the power adapter and the device you intend to connect both use a 3.5mm x 1.35mm DC barrel connector and operate at compatible voltage and current levels.

Connecting the Extension Cord

1. Identify Connectors: Locate the male barrel connector on your existing power adapter's cable and the female DC input port on your device.
2. Connect Power Adapter: Insert the male end of the Smays extension cord into the female output port of your DC power adapter. Ensure a snug fit.
3. Connect Device: Insert the female end of the Smays extension cord into the male DC input port of your electronic device (e.g., Foscam IP camera). Ensure a secure connection.
4. Verify Power: Once connected, power on your device and verify that it receives power and functions correctly.

Figure 3: An illustrative diagram demonstrating how the extension cord connects between a power adapter and a device, such as an IP camera, to extend the power reach.

Figure 4: A clear view of the male and female 3.5mm x 1.35mm DC barrel connectors, shown separately to highlight their distinct designs.

Operation

The Smays DC Extension Cord operates passively by extending the physical reach of your existing DC power connection. Once properly connected, it allows your device to receive power from a greater distance without affecting the voltage or current supplied by the original power adapter. No specific operational steps are required beyond proper connection.

Care and Maintenance

• Storage: When not in use, coil the cord neatly to prevent tangling and kinking. Store in a cool, dry place away from direct sunlight.
• Cleaning: Wipe the cord and connectors with a soft, dry cloth if they become dusty. Do not use liquid cleaners or abrasive materials.
• Handling: Avoid bending the cord sharply, especially near the connectors, as this can damage the internal wiring. Do not pull on the cord to disconnect; always grasp the connector ends.
• Environmental Conditions: While durable, avoid exposing the cord to extreme temperatures, excessive moisture, or corrosive substances.

Troubleshooting

Specifications

Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts, please refer to the official Smays website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Smays Official Store: Visit the Smays Store on Amazon
