PawHut 2-in-1 Dog Trailer and Jogger Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PawHut 2-in-1 Dog Trailer and Jogger. Please read this manual thoroughly before use to ensure safe and correct operation. Keep this manual for future reference.

Image: The PawHut 2-in-1 Dog Trailer and Jogger, featuring a white and black design, configured as a bicycle trailer with a red safety flag attached.

Important Safety Instructions

Always prioritize the safety of your pet and yourself. Failure to follow these instructions may result in injury or damage.

• Maximum Weight Capacity: Do not exceed the recommended maximum weight of 20 kg for your pet.
• Pet Size: Ensure your pet's body length is less than 52 cm and its height is suitable for the trailer's interior dimensions.
• Secure Pet: Always use a safety leash to secure your pet inside the trailer to prevent jumping out.
• Bicycle Compatibility: The universal hitch is designed for most standard bicycles. Ensure your bicycle's axle and wheel nut dimensions are compatible with the hitch. Recommended bicycle wheel size is 24-29 inches.
• Pre-Ride Check: Before each use, verify that all wheels are securely attached, tires are properly inflated, and all fasteners are tightened. Check the hitch connection to the bicycle.
• Visibility: Always use the provided safety flag for increased visibility when operating as a bicycle trailer. Ensure reflectors are clean and visible.
• Braking: The handbrake is for parking and temporary stops. Do not rely on it as a primary braking system during motion.
• Terrain: Use on stable, even surfaces. Avoid rough terrain, steep inclines, or hazardous conditions that could compromise stability.
• Supervision: Never leave your pet unattended in the trailer or jogger.

Package Contents

Verify that all components are present before beginning assembly:

• 1 x Pet Trailer/Jogger Frame
• 2 x Rear Wheels (inflatable)
• 1 x Front Wheel (EVA)
• 1 x Handlebar
• 1 x Bicycle Hitch Arm
• 1 x Safety Flag
• Assembly Hardware (bolts, pins, etc.)
• Instruction Manual

Setup and Assembly

Follow these steps to assemble your PawHut 2-in-1 Dog Trailer and Jogger.

1. Unfold the Frame: Carefully unfold the main frame of the trailer until it locks into place.
2. Attach Rear Wheels: Insert the inflatable rear wheels into the axle mounts on the main frame. Ensure they click securely into place.
3. Attach Front Wheel (Jogger Mode): For jogger mode, attach the EVA front wheel to the designated front mount. Ensure it is securely fastened. This wheel is designed to rotate 360 degrees for easy maneuverability.
4. Install Handlebar: Slide the handlebar into the receivers at the rear of the frame until it locks. Adjust the height if necessary.
5. Attach Bicycle Hitch Arm (Trailer Mode): For trailer mode, attach the hitch arm to the front of the trailer. Secure it with the provided pins.
6. Install Safety Flag: Insert the safety flag pole into its designated slot on the rear of the trailer.
7. Inflate Tires: Inflate the rear tires to the recommended pressure (check tire sidewall for details).

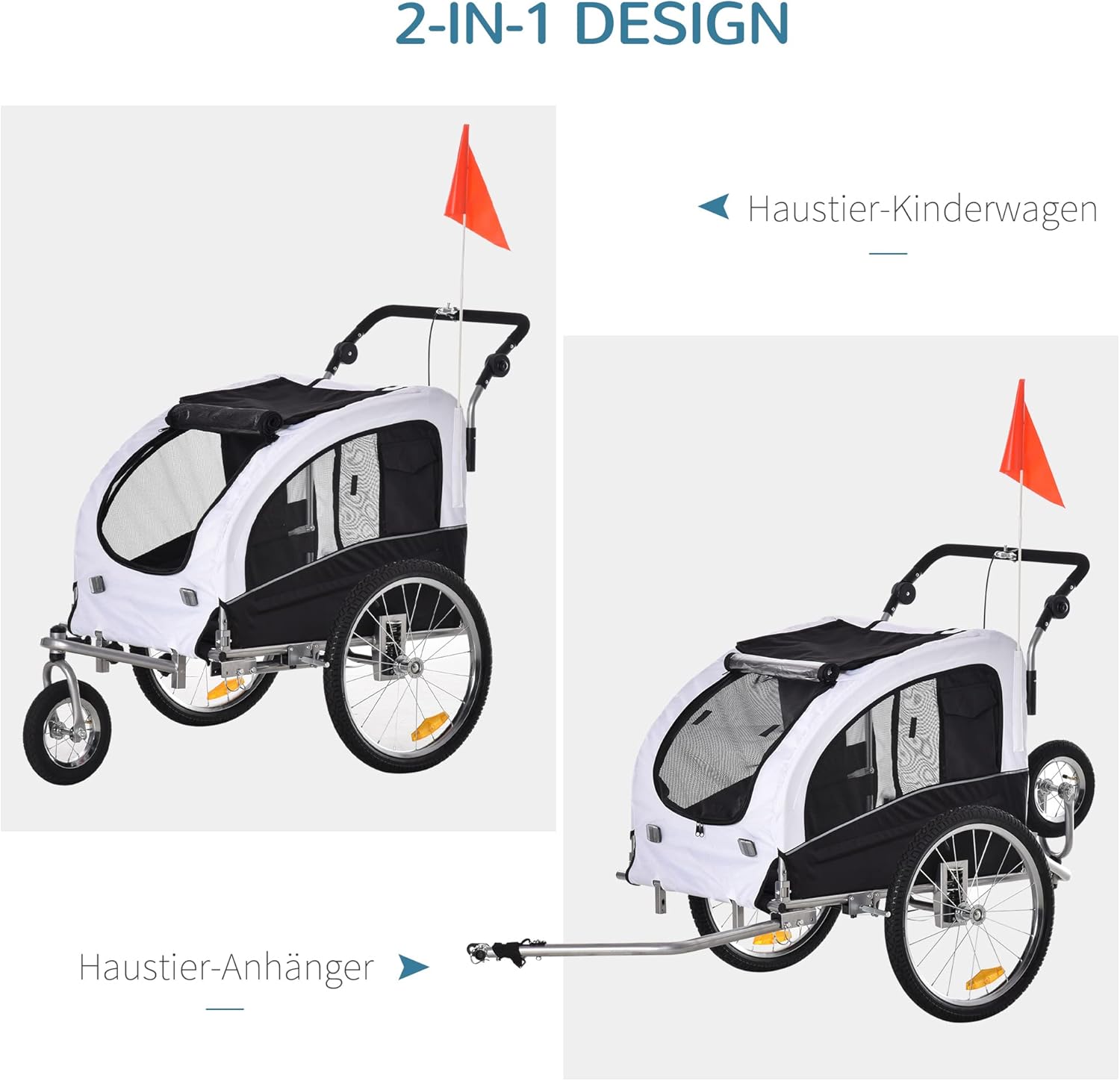

Image: Illustration of the 2-in-1 design, demonstrating how the unit transforms from a pet jogger (left) to a pet bicycle trailer (right).

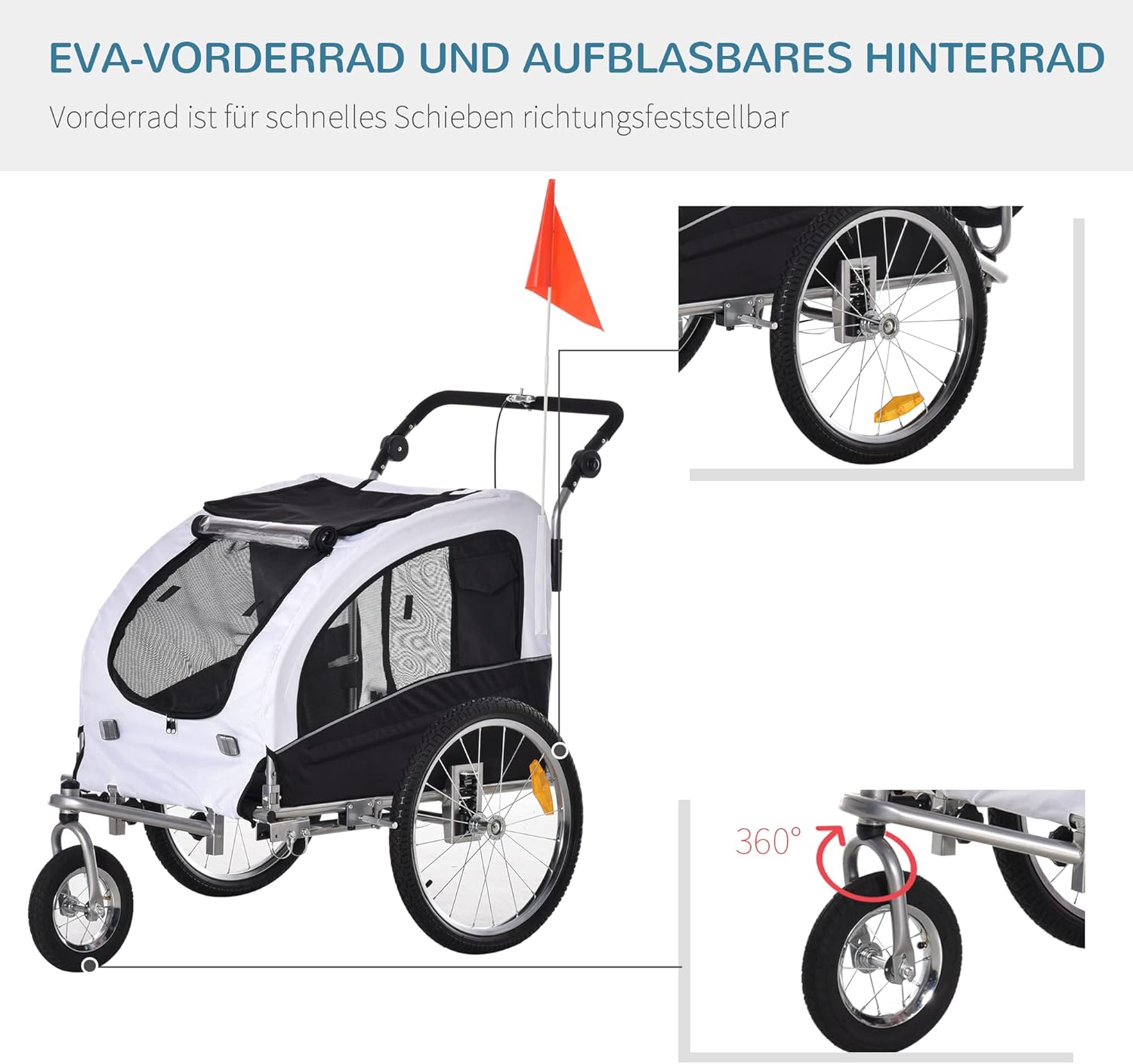

Image: Detailed view of the EVA front wheel and inflatable rear wheel, emphasizing the 360° rotation capability of the front wheel for jogger mode.

Operating Instructions

A. Using as a Bicycle Trailer

1. Attach to Bicycle: Secure the universal hitch arm to the rear axle of your bicycle. Ensure the connection is tight and there is no excessive play.
2. Secure Pet: Place your pet inside the trailer. Use the internal safety leash to secure your pet's harness. Close the front and rear zippered openings.
3. Pre-Ride Check: Before starting, double-check all connections, tire pressure, and ensure your pet is comfortable and secure.
4. Riding: Ride cautiously, especially when turning or braking, as the trailer adds weight and length to your bicycle.

Image: A person cycling with the PawHut dog trailer, which contains a dog, along a scenic outdoor path.

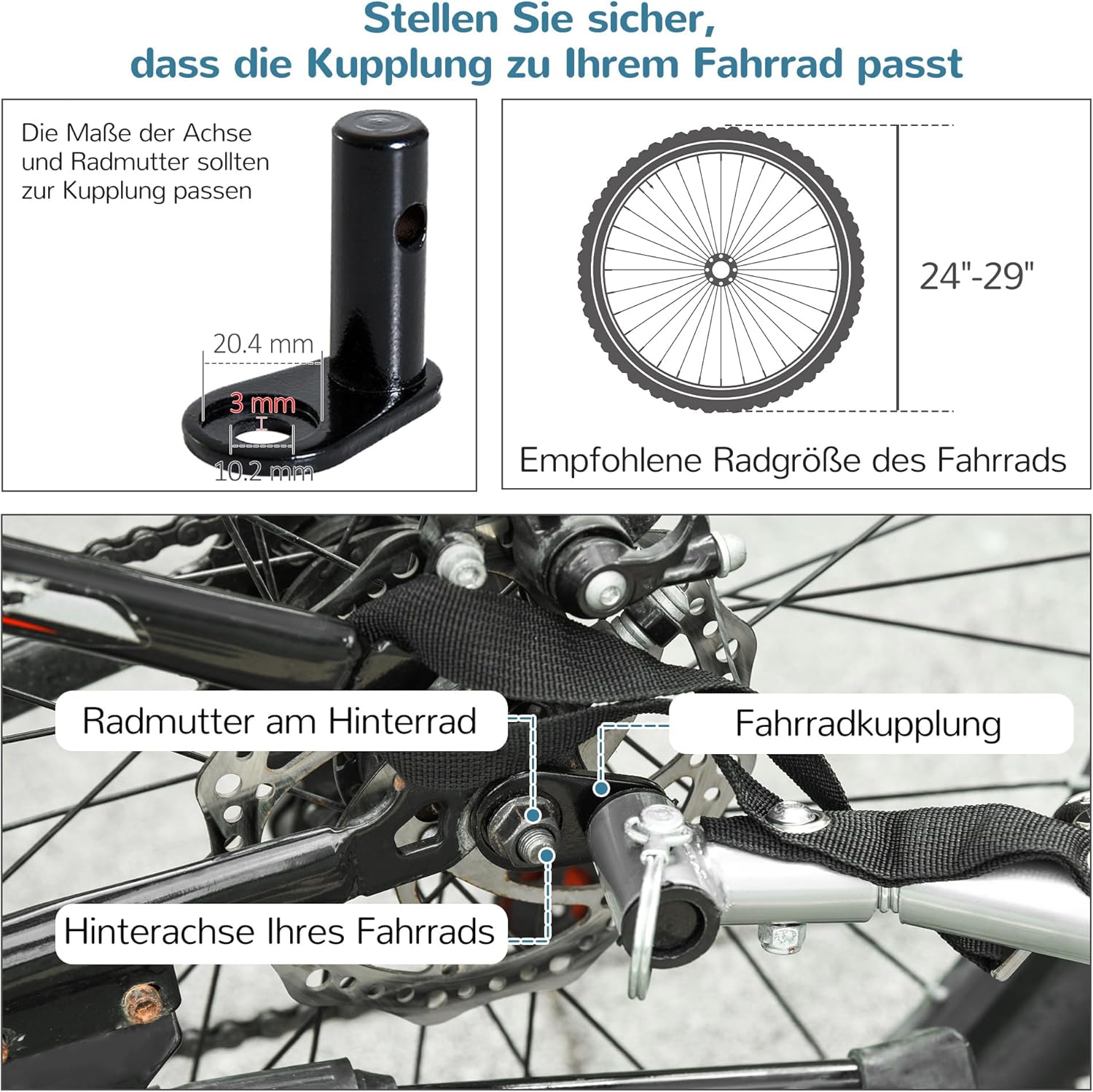

Image: Detailed instructions on hitch attachment, showing the bicycle's rear axle, wheel nut, and the trailer hitch connection point, along with recommended bicycle wheel sizes (24-29 inches).

B. Using as a Jogger

1. Convert to Jogger: Detach the bicycle hitch arm and store it. Ensure the front wheel is attached and locked in the swivel position for jogging.
2. Adjust Handlebar: Adjust the handlebar to a comfortable height for pushing.
3. Secure Pet: Place your pet inside and secure with the safety leash. Close all openings.
4. Engage Handbrake: Use the handbrake to temporarily secure the jogger when stopped.

Image: Overview of key features such as the safety leash, handbrake, safety flag, side storage pocket, visible mesh windows, safety reflectors, and the detachable trailer hitch.

Maintenance

• Cleaning: Clean the fabric with a damp cloth and mild soap. Do not use harsh chemicals. Allow to air dry completely.
• Wheel Maintenance: Regularly check tire pressure and inflate as needed. Inspect wheels for wear and tear.
• Frame Inspection: Periodically check the frame for any signs of damage, loose bolts, or corrosion. Tighten all fasteners as necessary.
• Storage: The trailer is foldable for space-saving storage. Store in a dry, cool place away from direct sunlight when not in use.

Troubleshooting

Specifications

• Model Number: 5663-1290
• Color: White/Black
• Overall Dimensions (L x W x H): 155 cm x 83 cm x 108 cm
• Product Weight: 18.77 kg
• Frame Material: Alloy Steel
• Fabric Material: 600D Oxford
• Rear Wheel Size: 20 inches
• Front Wheel Type: EVA
• Recommended Maximum Pet Weight: 20 kg
• Recommended Maximum Pet Height: 53 cm
• Seating Capacity: 1 pet
• Included Components: 1 x Pet Trailer/Jogger

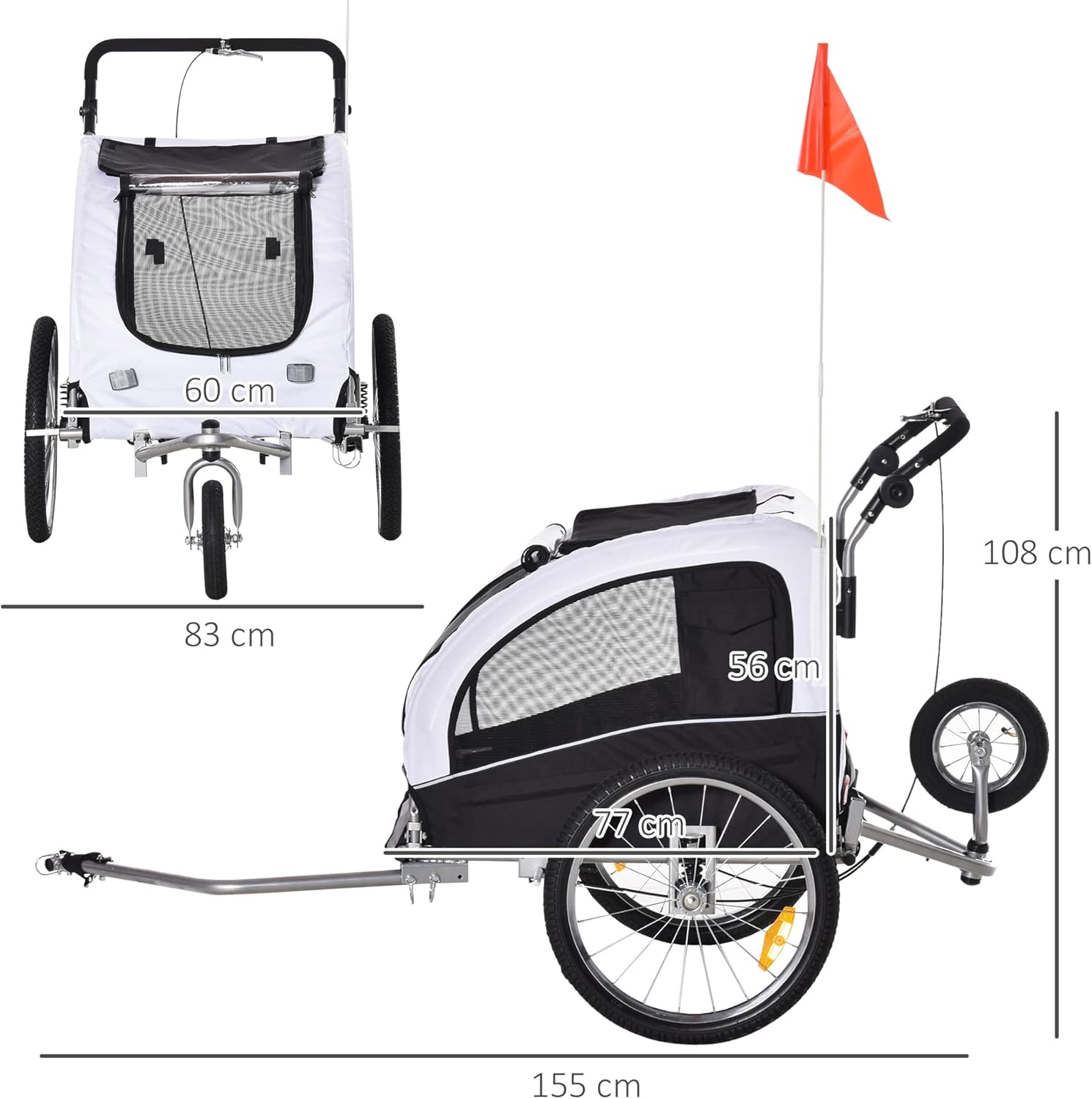

Image: Dimensional drawing of the PawHut 2-in-1 Dog Trailer and Jogger, indicating length, width, and height measurements.

Image: Guide for suitable dog sizes, showing examples of medium breeds and instructions to measure your pet's body length (under 52cm) and weight (under 20kg) before purchase.

Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer, PawHut. Keep your purchase receipt as proof of purchase.

Manufacturer: PawHut

Contact: Refer to your purchase documentation or the retailer's website for specific support contact details.
