Panasonic Home Bakery SD-BMS104-N Instruction Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Panasonic Home Bakery Model SD-BMS104-N. Please read this manual thoroughly before using the appliance and keep it for future reference.

Image: Front view of the Panasonic Home Bakery SD-BMS104-N, showing the control panel and main body.

Safety Precautions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Do not immerse the appliance, cord, or plug in water or other liquid.
• Ensure the voltage rating on the appliance matches your local power supply.
• Keep children away from the appliance during operation.
• Do not touch hot surfaces. Use handles or knobs.
• Unplug from outlet when not in use and before cleaning.

Setup

1. Unpacking and Component Identification

Carefully remove all packaging materials. Verify that all components are present:

• Main Unit
• Bread Pan
• Kneading Blade
• Raisin/Nut Dispenser
• Measuring Cup and Spoon
• Steam Case (if included)

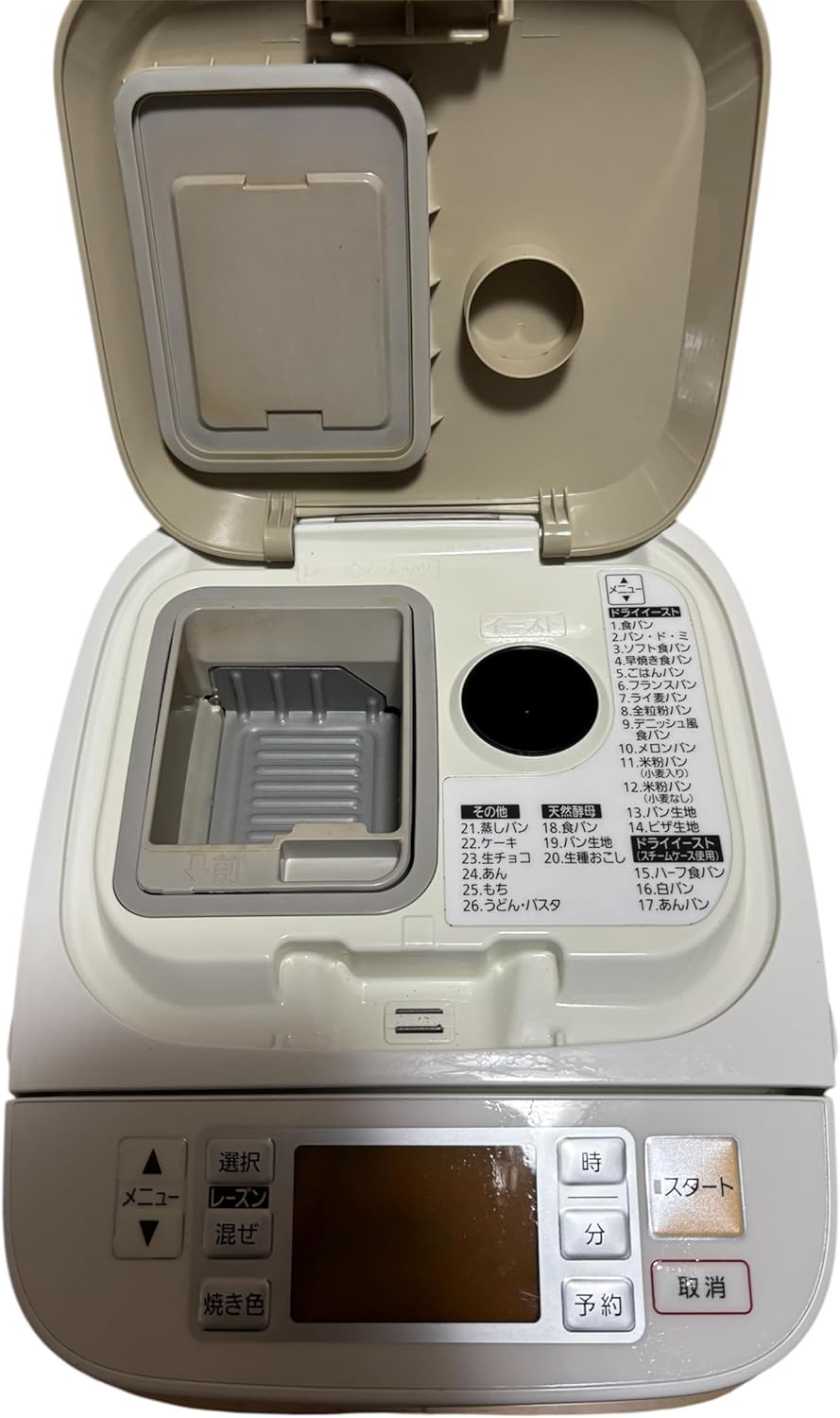

Image: Top view of the bread maker with the lid open, illustrating the internal layout including the bread pan compartment and the control panel.

Image: The removable bread pan and the kneading blade, essential components for bread making.

2. Initial Cleaning

Before first use, wash the bread pan, kneading blade, and measuring accessories with warm soapy water. Wipe the exterior of the main unit with a damp cloth. Ensure all parts are completely dry before assembly.

3. Placement

Place the home bakery on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.

Operating Instructions

1. Basic Operation

1. Insert Kneading Blade: Place the kneading blade onto the shaft inside the bread pan.
2. Add Ingredients: Add ingredients to the bread pan in the order specified by your recipe (typically liquids first, then dry ingredients, with yeast last).
3. Place Bread Pan: Insert the bread pan into the main unit, ensuring it clicks securely into place.
4. Add Yeast/Ingredients to Dispensers: If your recipe requires, add dry yeast to the automatic yeast dispenser and raisins/nuts to the automatic ingredient dispenser.
5. Close Lid: Close the lid firmly.
6. Select Course: Use the control panel to select your desired bread course (e.g., "Pan de Mi", "Soft Bread", "Rice Bread").
7. Set Timer (Optional): If using the reservation timer, set the desired completion time.
8. Start: Press the Start button to begin the baking process.

2. Special Features and Courses

• "Pan de Mi" Course: This unique course bakes bread with a thin, crispy crust and a soft, melt-in-your-mouth interior, highlighting the flavor of the wheat. It uses a new program with improved heating efficiency and less yeast.
• Large Raisin/Nut Dispenser: The dispenser is 1.8 times larger than previous models, allowing for automatic addition of up to 100g of ingredients. This ensures even distribution throughout the dough.


  Image: Example of sliced bread with raisins, showcasing the even distribution of ingredients achieved with the automatic dispenser.
• Coarse Mixing Function: This function allows for gentle mixing of delicate ingredients like bacon or cheese, ensuring they retain their shape and texture in the baked bread. Ideal for savory or sweet bread variations. Note: Easily dissolvable ingredients should be added manually.
• Fresh Chocolate Course: Easily make fresh chocolate at home with precise temperature control managed by the bread maker.
• Rice Bread Course: Utilize leftover cooked rice (up to 200g) to make delicious, chewy rice bread. This course ensures proper kneading of rice and flour for a unique texture. Various rice types like brown rice or red rice can be used for different flavors.
• Variety of 26 Menus: The SD-BMS104-N offers a wide range of courses including:
  • Dry Yeast: Standard Bread, Pan de Mi, Soft Bread, Rapid Bake Bread, Rice Bread, French Bread, Rye Bread, Whole Wheat Bread, Danish-style Bread, Melon Pan, Rice Flour Bread (with wheat), Rice Flour Bread (wheat-free), Bread Dough, Pizza Dough.
  • Dry Yeast (using Steam Case): Half Bread, White Bread, Anpan.
  • Natural Yeast: Bread, Bread Dough, Natural Yeast Starter.
  • Other: Steamed Bread, Cake, Fresh Chocolate, An (red bean paste), Mochi, Udon/Pasta Dough.
• Yeast Automatic Dispenser: Ensures yeast is added at the optimal time for consistent rising and flavor.
• Reservation Timer Function: Set the timer up to 13 hours in advance to wake up to freshly baked bread. Available for Standard Bread, Soft Bread, French Bread, Whole Wheat Bread, Natural Yeast Bread, and Rice Flour Bread.
• Steam Case: Use this accessory for specific recipes like white bread or steamed bread, ensuring proper moisture and texture.

Maintenance

Regular cleaning ensures optimal performance and longevity of your home bakery.

1. Cleaning the Main Unit

Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.

2. Cleaning the Bread Pan and Kneading Blade

After each use, remove the bread pan and kneading blade. Fill the pan with warm water and a small amount of dish soap. Let it soak for 10-15 minutes to loosen any stuck-on dough. Use a soft sponge to clean. Do not use metal scouring pads. Rinse thoroughly and dry completely.

Image: Close-up view of the interior of the bread pan, highlighting the non-stick surface and the kneading blade attachment point.

3. Cleaning Dispensers

The yeast and raisin/nut dispensers should be cleaned regularly to prevent residue buildup. Use a small brush or damp cloth to remove any flour or ingredient particles. Ensure they are dry before reassembly.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, please contact customer support.

Specifications

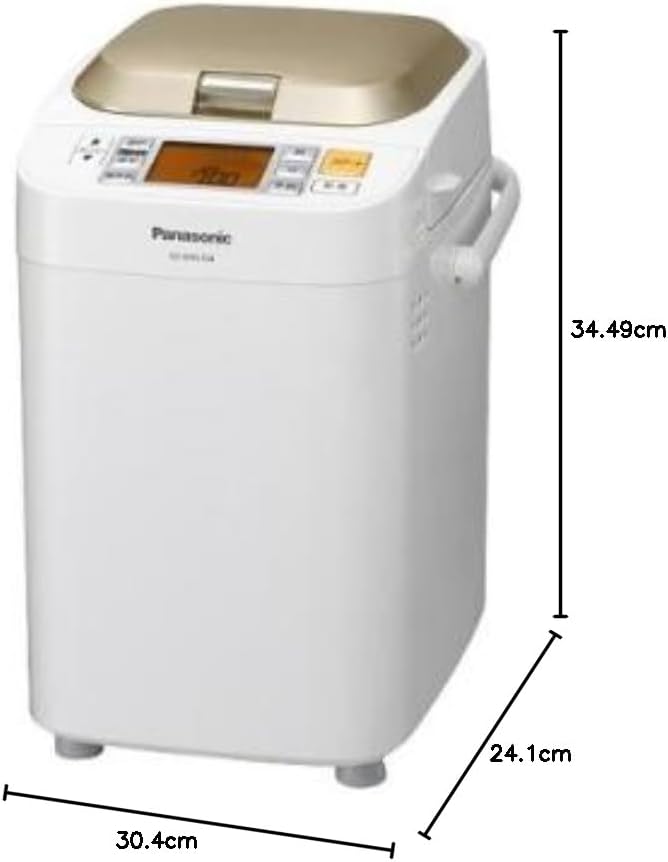

Image: Dimensional diagram of the Panasonic Home Bakery, indicating its width, depth, and height.

Warranty and Support

For repair inquiries regarding Panasonic products, please contact the Panasonic Repair Consultation Service.

Telephone: 0120-878-554

Operating Hours: 9:00 AM - 7:00 PM (Sundays, holidays, and year-end/New Year holidays: 9:00 AM - 5:30 PM)

You can also search for "Panasonic Repair" online for more information.
