WOLF Heritage Single Watch Winder (Model 270002) Instruction Manual

1. Introduction

Thank you for choosing the WOLF Heritage Single Watch Winder. This manual provides essential information for the proper setup, operation, and maintenance of your watch winder to ensure the longevity and accuracy of your automatic watches. Please read these instructions carefully before use.

2. Product Overview

The WOLF Heritage Single Watch Winder is designed to keep your automatic watch wound and ready to wear. It features a classic design with modern functionality.

Key Features:

• Black Vegan Leather Exterior: Durable and stylish finish.
• Glass Cover: Provides visibility and protection for your watch.
• Patented Lock-in Dynamic Cuff: Securely holds watches up to 52mm case size, accommodating various wrist sizes.
• Precision Instrument: Counts turns per day (TPD) to ensure optimal winding.
• Customizable Rotation Settings: Offers 900 TPD with clockwise, counter-clockwise, or bi-directional rotation.
• Intermittent Rotation: Pre-programmed pause and sleep phases.
• Start Delay Options: 10-second or 12-hour delay settings.
• Dual Power Options: Operates via universal AC adapter or D-cell batteries.

Figure 1: WOLF Heritage Single Watch Winder (Model 270002) with glass cover closed.

Figure 2: Front view of the winder with key features labeled, including the single winding module, black vegan leather, and control knobs.

3. Setup

3.1 Powering the Winder

Your WOLF Heritage Single Watch Winder can be powered in two ways:

• AC Adapter: Connect the provided universal AC adapter to the port located at the back of the winder and plug it into a wall outlet.
• Batteries: For portable use, install D-cell batteries (not included) into the battery compartment at the back of the winder. Ensure correct polarity.

3.2 Placing Your Watch

1. Open the glass cover of the winder.
2. Gently squeeze the sides of the patented lock-in dynamic cuff to release it from the winding drum.
3. Adjust the cuff to fit your watch. The cuff is designed to securely hold watches up to 52mm case size and accommodates various wrist sizes.
4. Place your automatic watch onto the cuff, ensuring it is snug but not overly tight.
5. Insert the cuff with the watch back into the winding drum until it clicks securely into place.

Figure 3: Close-up view of the patented lock-in dynamic cuff, designed for a secure fit for various watch sizes.

4. Operating Instructions

The WOLF Heritage Single Watch Winder offers precise control over the winding process.

4.1 Control Knobs

Locate the two control knobs on the front panel below the winding drum:

• Left Knob (Rotation Direction): Selects the direction of rotation. Options typically include:
  • A: Clockwise
  • B: Counter-clockwise
  • C: Bi-directional (alternating clockwise and counter-clockwise)
• Right Knob (On/Off/Delay): Controls power and delay settings. Options typically include:
  • ON: Starts the winding cycle immediately.
  • OFF: Turns the winder off.
  • 12: Activates a 12-hour start delay before the winding cycle begins.

The winder is pre-programmed for 900 Turns Per Day (TPD) with intermittent rotation, including pause and sleep phases, to prevent over-winding.

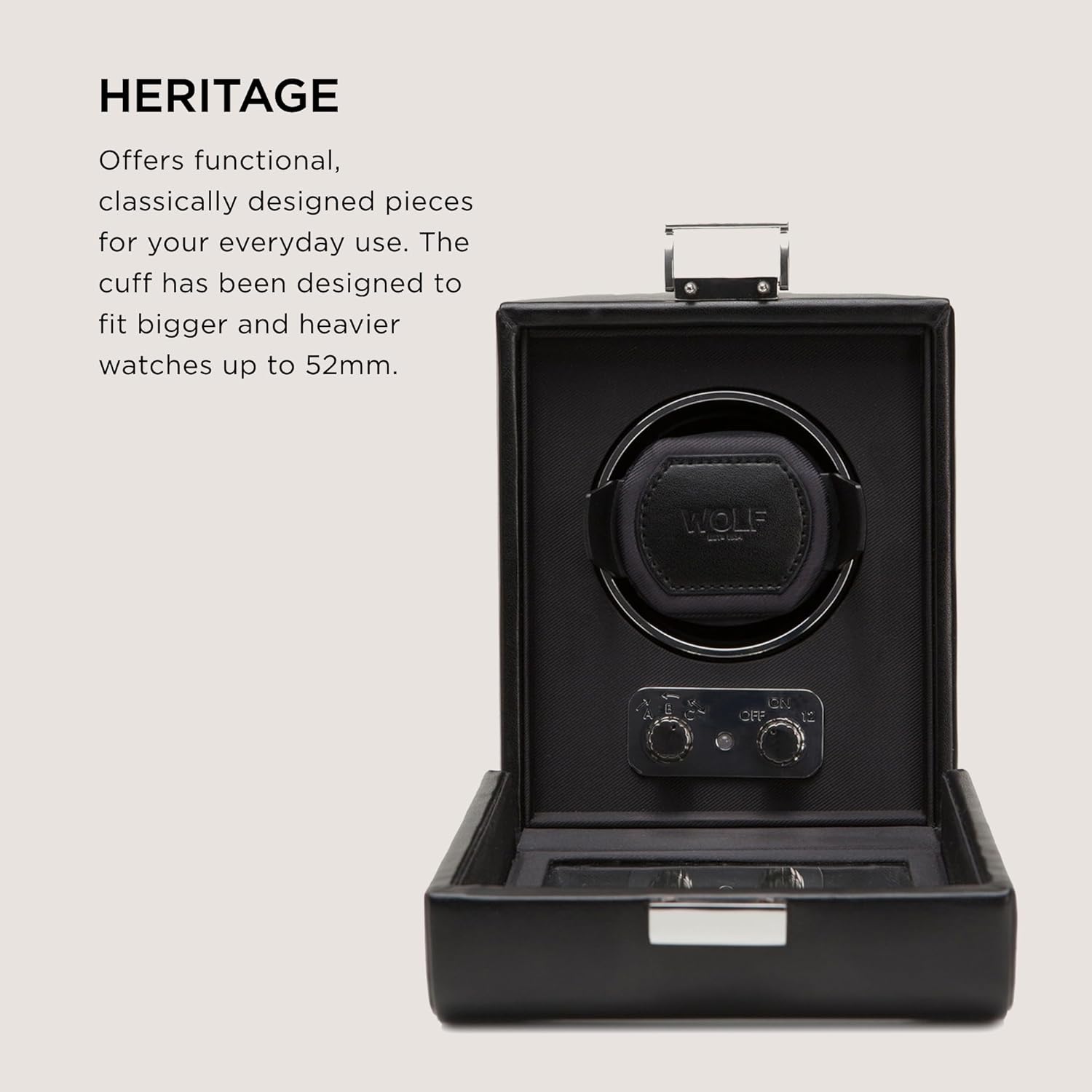

Figure 4: Interior view of the winder, highlighting the control knobs for rotation direction and power/delay settings.

5. Maintenance

To ensure your WOLF Heritage Single Watch Winder remains in excellent condition:

• Wipe the exterior vegan leather with a soft, dry cloth. Avoid abrasive cleaners.
• Clean the glass cover with a soft, lint-free cloth and a mild glass cleaner.
• Ensure the winder is placed on a stable, level surface away from direct sunlight, extreme temperatures, and humidity.
• If using batteries, replace them as needed to maintain consistent operation.

6. Troubleshooting

• Winder not operating: Check if the AC adapter is securely plugged in or if the batteries need replacement. Ensure the power knob is set to 'ON' or '12'.
• Watch not winding: Verify that the watch is properly seated on the dynamic cuff and that the cuff is securely in the winding drum. Confirm the rotation direction (A, B, or C) is appropriate for your specific watch movement. Consult your watch's manual for its winding requirements.
• Watch feels too tight on cuff: The dynamic cuff is designed to be adjustable. Gently compress the cuff to fit your watch. If your watch is particularly small, ensure it is still held securely without excessive pressure.
• Unusual noise: Ensure the winder is on a flat, stable surface. If noise persists, contact customer support.

7. Specifications

8. Warranty & Support

This WOLF Heritage Single Watch Winder is covered by a Manufacturer's Warranty. For specific details regarding your warranty coverage, please refer to the documentation included with your product or visit the official WOLF Designs website.

For technical assistance, troubleshooting, or warranty claims, please contact WOLF customer service. Contact information can typically be found on the WOLF Designs website or in your product packaging.
