FILCO Majestouch 2 TKL (Cherry MX Brown) Keyboard User Manual

1. Introduction

Thank you for choosing the FILCO Majestouch 2 TKL Keyboard. This ten-keyless mechanical keyboard is engineered for superior typing experience, featuring durable Cherry MX Brown tactile switches. Its robust construction and compact design make it an ideal choice for both professional and personal use. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new keyboard.

Figure 1.1: Top-down view of the FILCO Majestouch 2 TKL Keyboard.

2. Setup

The FILCO Majestouch 2 TKL Keyboard is designed for simple plug-and-play operation.

2.1 Package Contents

• FILCO Majestouch 2 TKL Keyboard (Cherry MX Brown)
• USB Cable (attached)
• User Manual (this document)

2.2 Connecting the Keyboard

1. Locate an available USB port on your computer.
2. Insert the USB connector of the keyboard cable into the USB port.
3. The operating system will automatically detect and install the necessary drivers. No additional software installation is typically required.
4. Once installed, the keyboard is ready for use.

Figure 2.1: The FILCO Majestouch 2 TKL Keyboard with its integrated USB cable.

3. Key Features

• Ten-Keyless Design: A compact layout without the numeric keypad, saving desk space and improving ergonomics for mouse usage.
• Cherry MX Brown Switches: Provides a tactile bump without an audible click, offering a balanced typing experience suitable for both typing and gaming.
• True N-Key Rollover (NKRO): Allows for simultaneous pressing of multiple keys without ghosting or missed inputs, ensuring every keystroke is registered accurately. This feature is crucial for fast typists and gamers.
• Solid and Stylish Construction: Built with high-quality materials for durability and a premium feel.
• USB Connectivity: Standard USB interface for broad compatibility.

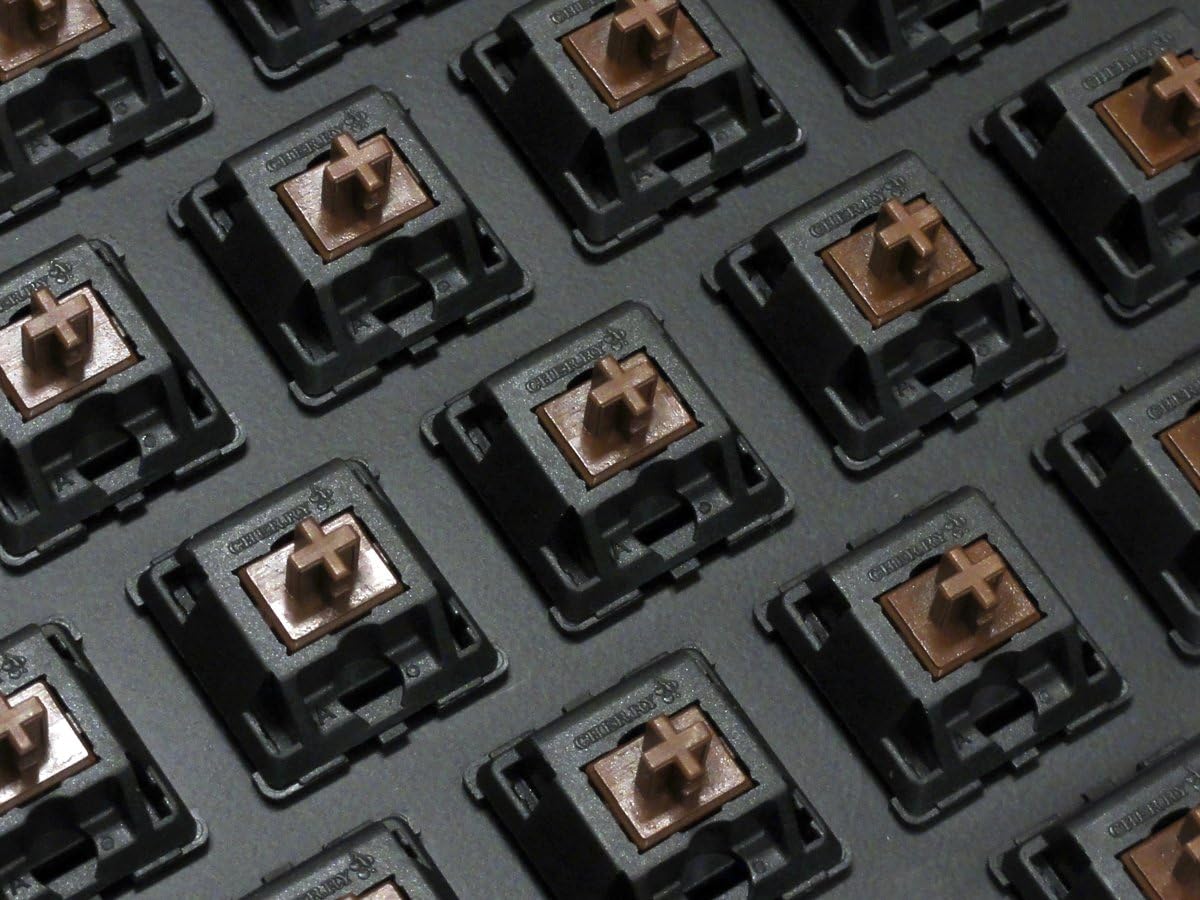

Figure 3.1: Close-up view of the Cherry MX Brown mechanical switches.

4. Operation

The FILCO Majestouch 2 TKL operates as a standard USB keyboard.

4.1 Basic Usage

Simply type as you would on any standard keyboard. The tactile feedback of the Cherry MX Brown switches provides a distinct feel for each key press, enhancing typing accuracy and comfort.

4.2 N-Key Rollover (NKRO)

The keyboard supports True N-Key Rollover via USB. This means that every key pressed simultaneously will be registered by the computer, preventing "ghosting" or "key jamming" issues common with standard keyboards. This feature is automatically active and does not require any special configuration.

4.3 Indicator Lights

The keyboard features standard indicator lights for Caps Lock, Scroll Lock, and Num Lock (though Num Lock functionality is typically managed by the operating system on TKL keyboards). These lights illuminate when the respective function is active.

Figure 4.1: Right side of the keyboard, highlighting navigation keys and indicator lights.

5. Maintenance

Proper care will extend the life and maintain the performance of your FILCO Majestouch 2 TKL Keyboard.

5.1 Cleaning

• Disconnect the keyboard from your computer before cleaning.
• Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe the keycaps and casing.
• For dust and debris between keys, use compressed air or a small brush.
• Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the keyboard.

5.2 Storage

When not in use for extended periods, store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures.

Figure 5.1: Underside view of the keyboard, illustrating its robust internal construction.

6. Troubleshooting

If you encounter issues with your keyboard, please refer to the following common solutions.

6.1 Keyboard Not Responding

• Ensure the USB cable is securely connected to both the keyboard and the computer's USB port.
• Try connecting the keyboard to a different USB port on your computer.
• Test the keyboard on another computer to determine if the issue is with the keyboard or the original computer.
• Restart your computer.

6.2 Keys Not Registering or Double-Typing

• Ensure the keyboard is clean and free of debris that might obstruct key movement. Refer to the Maintenance section for cleaning instructions.
• If the issue persists, it may indicate a hardware problem. Contact customer support for assistance.

6.3 Indicator Lights Not Working

• Verify that the corresponding function (Caps Lock, Scroll Lock) is active.
• Ensure the keyboard is properly connected and receiving power.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

FILCO products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official FILCO website. Keep your proof of purchase for warranty claims.

8.2 Customer Support

If you require further assistance or have questions not covered in this manual, please contact FILCO customer support. Contact information can typically be found on the official FILCO website or on your product packaging.

Official FILCO Website: www.filco.co.jp (Please note: Website content may vary by region.)
