1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Dornbracht 25133892-00 Wall-Mounted Bath Mixer with Hand Shower. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Image 1.1: Dornbracht 25133892-00 Wall-Mounted Bath Mixer with Hand Shower in Chrome finish.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Installation must be performed by a qualified professional in accordance with local plumbing and building codes.
- Ensure the water supply is turned off before beginning any installation or maintenance work.
- Do not use abrasive cleaners, solvents, or harsh chemicals on the product as they can damage the finish.
- Protect the product from freezing temperatures.
- Check all connections for leaks after installation.
3. Package Contents
Verify that all components are present before beginning installation:
- Wall-mounted bath mixer unit
- Hand shower
- Shower hose
- Wall bracket for hand shower
- Mounting hardware (screws, anchors, gaskets)
- Instruction manual
Image 3.1: Exploded view of the bath mixer and hand shower components. 1: Mixer body, 2: Shower hose connection, 3: Hand shower wall bracket, 4: Hand shower connection, 5: Hand shower.
4. Specifications
| Brand | Dornbracht |
| Model Number | 25133892-00 |
| Finish Type | Polished |
| Handle Material | Brass |
| Mounting Type | Wall Mount |
| Item Weight | 5.01 Kilograms |
| Included Components | Shower Arm, Shower Head (Note: This refers to the hand shower and its components) |
| Material | Brass |

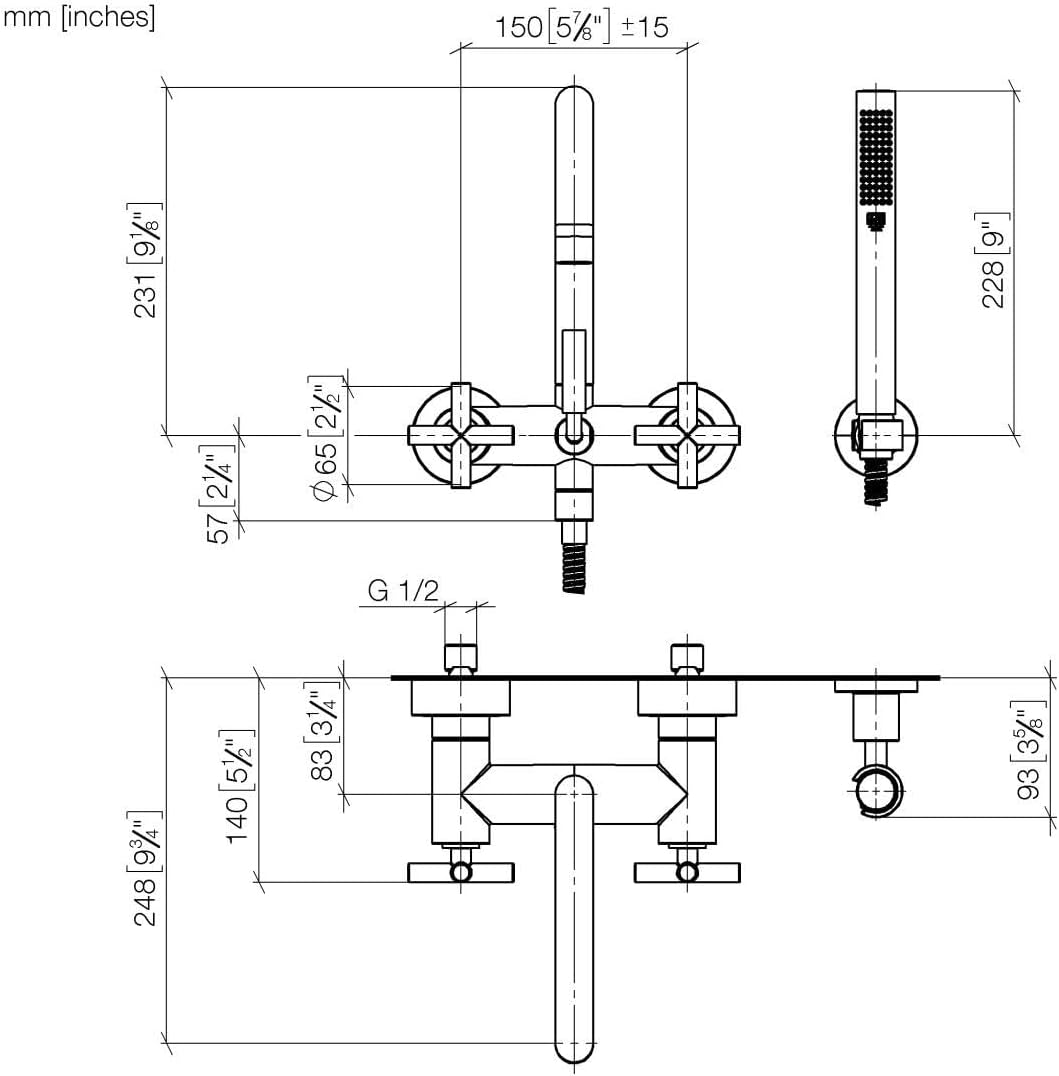

Image 4.1: Dimensional drawing showing key measurements for installation planning. All dimensions are in millimeters and inches.
5. Setup & Installation
Tools Required: Adjustable wrench, pipe sealant tape, screwdriver, drill, level, measuring tape.
5.1 Pre-Installation
- Ensure rough-in plumbing is correctly positioned according to the dimensional drawing (Image 4.1).
- Flush water lines to remove any debris before connecting the mixer.
- Inspect all components for damage. Do not install damaged parts.
5.2 Mixer Installation
- Turn off the main water supply.
- Apply pipe sealant tape to the threaded ends of the water supply pipes extending from the wall.
- Attach the eccentric connectors (if supplied and required) to the water supply pipes, adjusting them to the correct spacing for the mixer body. Ensure they are level.
- Place the gaskets onto the eccentric connectors.
- Carefully align the mixer body with the eccentric connectors and tighten the nuts using an adjustable wrench. Do not overtighten.
- Attach the decorative escutcheons (cover plates) to the wall, covering the connections.
5.3 Hand Shower Installation
- Determine the desired height and position for the hand shower wall bracket. Mark the drilling points.
- Drill holes and insert wall anchors if necessary.
- Secure the wall bracket (3) to the wall using the provided screws.
- Connect one end of the shower hose to the outlet on the bath mixer (2) and the other end to the hand shower (5). Ensure gaskets are in place and connections are hand-tightened, then gently snug with a wrench.
- Place the hand shower into its wall bracket.
5.4 Post-Installation
- Slowly turn on the main water supply.
- Check all connections for leaks. Tighten gently if necessary.
- Test the function of the mixer and hand shower.
6. Operating Instructions
The Dornbracht 25133892-00 bath mixer features two cross-handle controls for water flow and temperature, and a diverter to switch between the bath spout and hand shower.
- Water Flow: Turn the left handle (typically for hot water) and the right handle (typically for cold water) to adjust the water flow.
- Temperature Control: Mix hot and cold water by adjusting both handles until the desired temperature is achieved.
- Diverter: To switch water flow from the bath spout to the hand shower, pull the diverter knob located on the mixer body. Push it back down to return flow to the bath spout.
- Hand Shower Use: Remove the hand shower from its bracket and press the button or lever on the hand shower head to activate the spray.
7. Maintenance
Regular cleaning and maintenance will ensure the longevity and appearance of your Dornbracht bath mixer.
7.1 Cleaning the Finish
- Clean the surface with a soft, damp cloth and mild soap.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or cleaners containing alcohol, bleach, or acid, as these can damage the polished finish.
7.2 Cleaning the Hand Shower Nozzles
- Over time, mineral deposits may accumulate in the hand shower nozzles.
- Gently rub the rubber nozzles with your finger or a soft brush to dislodge any buildup.
- For stubborn deposits, a solution of white vinegar and water can be used, but ensure to rinse thoroughly afterwards.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow |
|
|
| Leaks at Connections |
|
|
| Diverter Not Working |
|
|
9. Warranty & Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Dornbracht website. For technical support, replacement parts, or service inquiries, please contact Dornbracht customer service directly.
Manufacturer: Dornbracht
Model Number: 25133892-00
