1. Introduction
This manual provides essential information for the safe and proper installation, operation, and maintenance of your Americh OM7242B-BI Madison Oval 7242-Builder Series Tub. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.
The Americh Madison Oval 7242-Builder Series Tub is a high-quality acrylic whirlpool bathtub designed for comfort and relaxation. It features an advanced hydro-massage system, pre-mounted controls, and adjustable jet functions.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or death.
- All electrical connections must be performed by a qualified electrician in accordance with all local and national electrical codes.
- All plumbing connections must be performed by a qualified plumber in accordance with all local and national plumbing codes.
- Do not permit children to use this product without adult supervision.
- Water temperature in a bathtub should not exceed 104°F (40°C). Prolonged immersion in hotter water can cause hyperthermia.
- Never operate the whirlpool system if the water level is below the jets.
- Avoid using harsh or abrasive cleaning agents that can damage the acrylic surface.
- Persons with heart conditions, diabetes, high or low blood pressure, or other health concerns should consult a physician before using this product.
3. Product Components
Your Americh Madison Oval 7242-Builder Series Tub includes the following primary components:
- Acrylic Bathtub Shell (Oval Shape, Biscuit Color)
- Integrated Whirlpool Hydro-massage System
- Pre-mounted Controls for Whirlpool Operation
- Adjustable Hydro-massage Jets
- Textured Tub Floor
- Integral Arm Rests

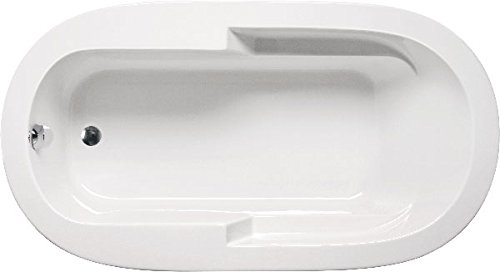

Image 1: Top-down view of the Americh OM7242B-BI Madison Oval 7242-Builder Series Tub. This image illustrates the overall oval design, the placement of the drain and overflow, and the integrated armrests within the tub's interior.
4. Setup and Installation
The Americh Madison Oval 7242-Builder Series Tub is designed for drop-in or undermount installation. Professional installation by licensed plumbers and electricians is strongly recommended to ensure compliance with all local building and safety codes.
4.1 Pre-Installation Checks
- Verify that the installation area is structurally sound and capable of supporting the weight of the tub filled with water and a bather.
- Ensure adequate access for plumbing and electrical connections.
- Confirm that the tub dimensions (72 x 42 x 22 inches) fit the intended space.
- Inspect the tub for any shipping damage before installation. Do not install a damaged tub.
4.2 Plumbing Connections
- Connect the hot and cold water supply lines to the faucet (faucet not included).
- Connect the tub drain to the household drainage system. Ensure all connections are watertight.
- Test for leaks before finalizing the installation.
4.3 Electrical Connections
- The whirlpool system requires a dedicated electrical circuit. Refer to the electrical specifications for voltage and amperage requirements.
- All wiring must be protected by a Ground Fault Circuit Interrupter (GFCI).
- Connect the pre-mounted controls and pump motor according to the wiring diagram provided with the tub.
4.4 Tub Placement and Leveling
- Position the tub in the prepared opening. The tub is self-leveled, but verify with a spirit level to ensure it is perfectly horizontal.
- Secure the tub according to the specific requirements for drop-in or undermount installation, ensuring a stable and rigid fit.
5. Operating Instructions
5.1 Filling the Tub
- Ensure the drain is closed.
- Turn on the faucet to fill the tub with water to the desired level. For whirlpool operation, ensure the water level is at least 2 inches above the highest jets.
5.2 Operating the Whirlpool System
- Once the tub is filled to the appropriate level, activate the whirlpool system using the pre-mounted controls.
- Adjust the intensity of the jets using the designated controls.
- The direction of individual jets can be adjusted by rotating the jet nozzle.
- To turn off the whirlpool system, use the same controls.
5.3 Draining the Tub
- After use, open the drain to empty the tub.
- Ensure all water is drained to prevent stagnant water and potential bacterial growth.
6. Maintenance
6.1 Cleaning the Tub Surface
- Clean the acrylic surface regularly with a soft cloth or sponge and a non-abrasive, mild bathroom cleaner.
- Avoid cleaners containing ammonia, harsh acids, or abrasive particles, as these can damage the acrylic finish.
- Rinse thoroughly with clean water after cleaning.
6.2 Cleaning the Whirlpool System
- Periodically clean the internal plumbing of the whirlpool system to prevent buildup of soap residue and bacteria.
- Fill the tub with hot water (approximately 2 inches above the jets).
- Add 2-3 tablespoons of a low-foaming dishwasher detergent or a specialized whirlpool system cleaner.
- Run the whirlpool system for 10-15 minutes.
- Drain the tub, then refill with clean water and run the system for another 5 minutes to rinse.
6.3 General Care
- Inspect the tub and plumbing connections periodically for any signs of leaks or damage.
- Do not place heavy or sharp objects on the tub surface that could cause scratches or cracks.
7. Troubleshooting
This section addresses common issues you might encounter with your Americh tub. For problems not listed here, or if solutions do not resolve the issue, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Whirlpool system does not turn on. | No power to the unit; GFCI tripped; water level too low. | Check circuit breaker and GFCI. Ensure water level is above jets. Verify electrical connections. |
| Weak jet pressure. | Air intake blocked; pump filter clogged; low water level. | Ensure air intake is clear. Clean pump filter (if accessible). Increase water level. |
| Water leaks from tub or plumbing. | Loose plumbing connections; damaged seal. | Tighten all accessible plumbing connections. If leak persists, contact a professional plumber. |
| Unpleasant odor from jets. | Bacterial or soap residue buildup in pipes. | Perform a thorough cleaning of the whirlpool system as described in Section 6.2. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | OM7242B-BI |
| Brand | Americh |
| Material | Acrylic |
| Color | Biscuit |
| Shape | Oval |
| Installation Type | Drop-In, Undermount |
| Capacity | 74 Gallons |
| Item Weight | 164.35 Pounds |
| Product Dimensions (L x W x H) | 72 x 42 x 22 inches |
| UPC | 739055291711 |
| Special Features | Whirlpool Hydro-massage System |
| Compliance | UL and cUL standards |
| Manufacturer | Americh Corp |
9. Warranty Information
Warranty details for the Americh OM7242B-BI Madison Oval 7242-Builder Series Tub are typically provided by the manufacturer at the time of purchase or can be found on the official Americh website. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the documentation included with your product or contact Americh customer service directly.
10. Customer Support
For technical assistance, replacement parts, or further inquiries regarding your Americh OM7242B-BI Madison Oval 7242-Builder Series Tub, please contact Americh customer service. Contact information can typically be found on the manufacturer's website or on your purchase documentation.
It is helpful to have your model number (OM7242B-BI) and date of purchase available when contacting support.
