UZY5 Replacement Fireplace Blower User Manual

Introduction

Thank you for choosing the UZY5 Replacement Fireplace Blower. This professional-quality blower is designed to enhance the heat distribution from your wood-burning fireplace, providing a more comfortable and energy-efficient heating solution. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new blower. Please read it thoroughly before use.

A couple enjoying the warmth of a fireplace, a common scenario where the UZY5 blower improves heat circulation.

Safety Information

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury.

• Read all instructions: Before installing or operating the blower, read and understand all instructions in this manual.
• Electrical Safety: Ensure the power supply matches the blower's specifications (120 Volts, 60 Hertz). Disconnect power before installation, maintenance, or cleaning.
• Professional Installation: If you are unsure about any part of the installation process, consult a qualified electrician or HVAC professional.
• Proper Ventilation: Ensure adequate ventilation around the fireplace and blower to prevent overheating.
• Keep Clear: Do not insert fingers or foreign objects into the blower's intake or exhaust openings. Keep clothing, jewelry, and long hair away from moving parts.
• Heat Warning: The blower operates in a high-temperature environment. Allow the fireplace and blower to cool completely before handling or performing maintenance.
• No Modifications: Do not attempt to modify the blower or its components. Unauthorized modifications can lead to malfunction, injury, or void the warranty.
• Indoor Use Only: This blower is designed for indoor use with compatible fireplaces only.

Package Contents

Your UZY5 Replacement Fireplace Blower package should include the following:

• 1 x UZY5 Replacement Ball Bearing Blower Unit
• Note: Power cord and instructions are not included with the blower unit.

The UZY5 Replacement Fireplace Blower unit as it appears out of the box.

Setup and Installation

The UZY5 blower is designed as a replacement for specific fireplace models and can also serve as a universal fit. Compatibility includes BIS (Tradition CE, Ultima, Ultra), Lennox (Brentwood, Cambria, Montecito, Solana, Villa Vista), Security (Le Laval, HE43, SB36, SB42, SE36, SR42), and Superior (WCT4820, WRT4826, WCT6820) fireplaces. If your model is not listed or you have installation questions, please contact FireplaceBlowersOnline directly.

Pre-Installation Checklist:

• Ensure the fireplace is completely cool and any embers are extinguished.
• Disconnect power to the fireplace or the circuit it is on.
• Gather necessary tools (e.g., screwdriver, pliers, wire cutters, flashlight).
• Confirm the dimensions of the UZY5 blower (Length = 9.75", Width = 3.23", Height = 3.73", Flange Opening = 7.13") match the available space in your fireplace.

Side view of the UZY5 blower, highlighting its dimensions for fitment.

General Installation Steps (May vary by fireplace model):

1. Access the Blower Compartment: Locate and open the access panel or remove the lower louvers of your fireplace to expose the blower compartment.
2. Remove Old Blower (if applicable): Carefully disconnect any wiring from the old blower. Note the wiring configuration for re-connection. Remove mounting screws or brackets and extract the old blower unit.
3. Prepare New Blower: The UZY5 blower includes mounting flanges. Ensure these align with your fireplace's mounting points.
4. Position the Blower: Place the UZY5 blower into the compartment. Ensure it is stable and positioned to draw air efficiently. The flange opening is 7.13 inches.
5. Secure the Blower: Use appropriate screws or fasteners to secure the blower to the fireplace structure. Ensure it is firmly mounted to prevent vibration and noise during operation.
6. Wire the Blower: Connect the blower's electrical wires to your fireplace's power supply. If a power cord is needed, ensure it is rated for the blower's specifications (120V, 35W). If your fireplace has a thermostat or speed control, wire accordingly. If unsure, consult a professional.
7. Test Connection: Before closing the compartment, briefly restore power to test the blower's operation. Listen for unusual noises and ensure air is flowing. Disconnect power again.
8. Close Compartment: Replace the access panel or louvers.

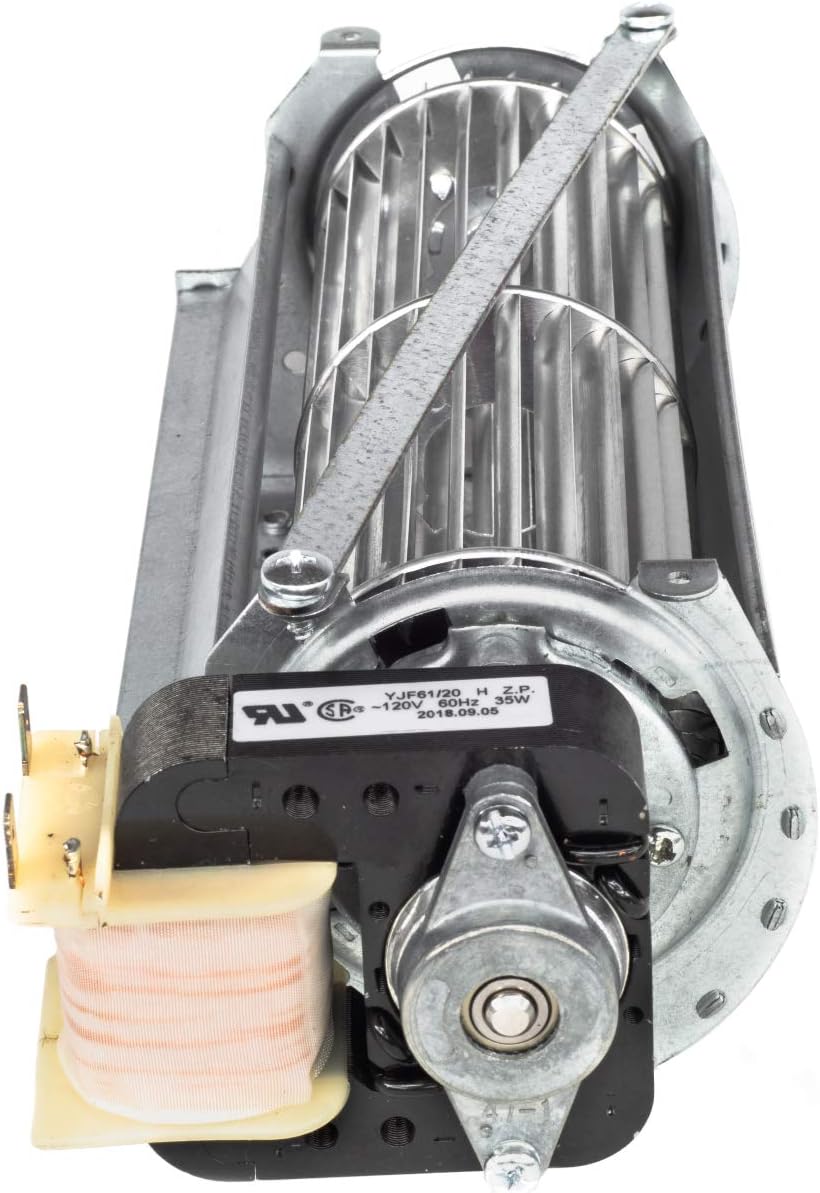

Top view of the UZY5 blower, illustrating the motor and fan components.

Operating Instructions

The UZY5 blower is designed for simple operation once installed. Its primary function is to circulate warm air from your fireplace into the room, improving heating efficiency.

Basic Operation:

• Once installed and wired, the blower will typically activate when the fireplace reaches a certain temperature (if connected to a thermostat) or when manually switched on.
• The blower operates at 110 CFM (Cubic Feet Per Minute) with a speed of 3000 RPM, providing high air flow.
• The 100% sealed dual ball bearing motor ensures quiet operation and energy efficiency.

Adjustable Speed (if applicable):

If your fireplace system or an added accessory includes an adjustable speed control, you can regulate the airflow of the blower to suit your comfort needs. Refer to the instructions for your specific speed control unit.

Angled view of the UZY5 blower, showing its robust construction.

Maintenance

The UZY5 blower is designed for long-lasting performance with minimal maintenance due to its sealed ball bearing motor. However, periodic checks can ensure optimal operation.

General Maintenance Tips:

• Power Disconnection: Always disconnect power to the blower before performing any maintenance or cleaning.
• Cool Down: Allow the fireplace and blower to cool completely before touching any components.
• Cleanliness: Periodically inspect the blower and its compartment for dust, lint, or debris buildup. Use a soft brush or vacuum cleaner to gently remove any accumulation. Excessive buildup can restrict airflow and reduce efficiency.
• No Lubrication Needed: The sealed ball bearing motor does not require lubrication. Do not attempt to oil or grease the motor.
• Inspect Wiring: Annually inspect wiring for any signs of wear, fraying, or loose connections.

Detailed view of the UZY5 blower, showing its metal housing and fan blades.

Troubleshooting

If you encounter issues with your UZY5 blower, refer to the table below for common problems and their solutions. Always ensure power is disconnected before inspecting the unit.

Front view of the UZY5 blower, illustrating the fan blades that circulate air.

Specifications

End view of the UZY5 blower, detailing the motor and connection points.

Warranty and Support

Warranty Information:

FireplaceBlowersOnline backs all of its products with a comprehensive 1-year warranty. This warranty covers defects in materials and workmanship under normal use.

This warranty does not extend to products deemed defective due to:

• Acts of God or Acts of Nature (e.g., fire, flood, lightning).
• User Tampering.
• Units Installed Incorrectly.

Customer Support:

For warranty claims, technical assistance, or any installation questions, please contact FireplaceBlowersOnline directly. An RMA (Return Merchandise Authorization) number is required for units being shipped back for repair or replacement.

Contact Number: 262-989-4882

Our helpful associates are available to assist you.
