Zojirushi NS-YAC10 Umami Micom Rice Cooker and Warmer Instruction Manual

Introduction

The Zojirushi NS-YAC10 Umami Micom Rice Cooker and Warmer is designed to prepare perfectly cooked rice with advanced Micro computerized Fuzzy logic technology. This appliance offers various menu settings, including a unique Umami setting that enhances rice flavor by soaking and steaming longer. It also features an automatic keep warm function, a delay timer, and a user-friendly LCD control panel. This manual provides essential information for the safe and efficient operation and maintenance of your rice cooker.

Image: Zojirushi NS-YAC10 Rice Cooker in a kitchen environment.

Included Components

• Zojirushi NS-YAC10 Rice Cooker and Warmer unit
• Removable non-stick inner cooking pan
• Rice measuring cup
• Non-stick rice spatula
• Spatula holder
• Detachable power cord

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Wash the inner cooking pan, inner lid, rice measuring cup, and spatula with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the rice cooker on a stable, level surface away from direct heat sources or moisture. Ensure adequate ventilation around the unit.
4. Power Connection: Insert the detachable power cord firmly into the rice cooker's power inlet and then plug it into a 120 Volt AC electrical outlet.

Operating Instructions

Basic Rice Cooking

1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice.
2. Wash Rice: Rinse the rice thoroughly in a separate bowl until the water runs clear. This helps remove excess starch.
3. Add to Inner Pan: Place the washed rice into the non-stick inner cooking pan.
4. Add Water: Add water up to the corresponding water level mark inside the inner pan for the type and amount of rice being cooked. For example, if cooking 2 cups of white rice, fill water to the '2' mark on the 'WHITE RICE' scale.
5. Place Pan: Ensure the exterior of the inner pan is dry, then place it into the main rice cooker unit.
6. Close Lid: Close the outer lid securely.
7. Select Menu: Press the MENU button to cycle through the available settings (White, Umami, Mixed, Sushi, Porridge, Sweet, Brown, GABA Brown, Rinse-Free, Quick Cooking, Slow Cook).
8. Start Cooking: Press the START/REHEAT button. The cooking indicator will light up, and the cooking process will begin.

Special Menu Settings

• Umami Setting: This setting extends the soaking and steaming time to enhance the flavor of the rice.
• Slow Cook Function: Ideal for preparing soups, stews, or other slow-cooked dishes.
• GABA Brown: Activates brown rice to increase gamma-aminobutyric acid (GABA), a beneficial nutrient.

Timer Function

The delay timer allows you to set the rice to be ready at a specific time. After adding rice and water, press the TIMER button and use the TIME SETTING arrows to adjust the desired completion time. Then press START/REHEAT.

Automatic Keep Warm

Once cooking is complete, the rice cooker automatically switches to the KEEP WARM mode to maintain the rice at an optimal serving temperature. This feature can keep rice warm for an extended period.

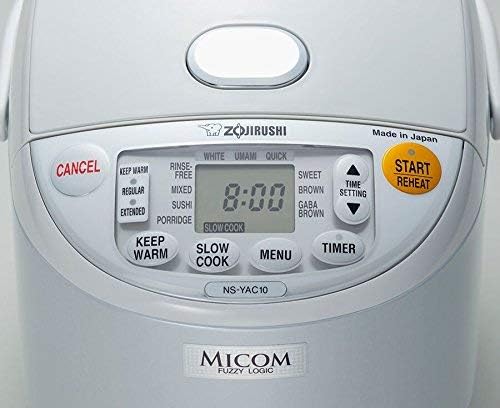

Image: Control panel of the Zojirushi NS-YAC10.

Maintenance and Cleaning

1. Unplug: Always unplug the rice cooker from the power outlet before cleaning.
2. Inner Cooking Pan: The non-stick inner cooking pan should be hand washed with a soft sponge and mild dish soap. Avoid abrasive cleaners or metal scrubbers to prevent damage to the non-stick coating.
3. Inner Lid: The inner lid is detachable for easy cleaning. Pull the inner lid to remove it, wash with warm, soapy water, rinse, and dry. Reattach it firmly after cleaning.
4. Steam Vent Cap: Remove the steam vent cap and wash it. Ensure it is clear of any rice residue.
5. Exterior: Wipe the exterior of the main unit with a soft, damp cloth. Do not immerse the main unit in water.
6. Accessories: Wash the rice measuring cup and spatula with warm, soapy water.

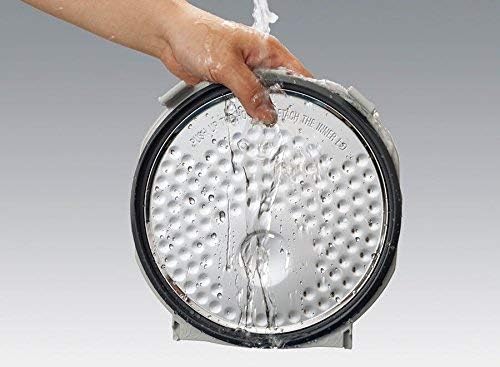

Image: Detachable inner lid for easy cleaning.

Troubleshooting

• Rice is too hard/soft: Adjust the water amount slightly for future cooking. Ensure rice is properly rinsed.
• Rice sticks to the bottom: Ensure the non-stick coating is not damaged. Use only the provided non-stick spatula.
• Unit does not turn on: Check if the power cord is firmly connected to both the unit and the electrical outlet.
• Error message on LCD: Refer to the full user manual for specific error codes and their solutions.
• Detachable cord issues: Ensure the detachable cord is placed firmly before use.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your Zojirushi NS-YAC10 Umami Micom Rice Cooker and Warmer or visit the official Zojirushi website. Keep your purchase receipt for warranty claims.
