1. Introduction
Thank you for choosing the PointZero PZ-260 Multi-Purpose Dual-Action Airbrush Set with Mini Compressor Kit. This kit is designed for both beginners and advanced users, offering precise control for various applications such as models, crafts, auto & cycle graphics, taxidermy, photo retouching, t-shirts, murals, fine art, and illustrations. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your airbrush system.
2. Safety Information
- Always operate the airbrush and compressor in a well-ventilated area.
- Wear appropriate personal protective equipment, including a respirator mask and safety glasses, to prevent inhalation of paint fumes and eye irritation.
- Keep the equipment away from children and pets.
- Ensure all connections are secure before operating the compressor.
- Do not touch the compressor motor during or immediately after operation, as it may be hot.
- Unplug the compressor from the power source when not in use or before cleaning and maintenance.
- Use only paints and thinners compatible with airbrushing and follow their manufacturer's safety guidelines.
- Avoid pointing the airbrush at yourself or others.
3. Package Contents
Verify that all items listed below are included in your package:
- PZ-260 Dual-Action Airbrush
- Mini Air Compressor (Elite-55E)
- 6-foot Air Hose
- Paint Pipette
- Nozzle Wrench
- Power Adapter for Compressor
- Access to 7 exclusive e-Book airbrushing guides
Image 3.1: Overview of the PointZero Airbrush Kit components, including the PZ-260 airbrush, mini compressor, air hose, pipette, and nozzle wrench.
4. Product Components
4.1. PZ-260 Dual-Action Airbrush
The PZ-260 is a premium-grade, dual-action, internal-mix airbrush. It features a precision-crafted body for a balanced feel and a tight-tolerance head for extremely fine atomization. It comes with a pre-installed 0.3mm nozzle (tip) for spray patterns ranging from hairline to 1 1/4 inches. A needle backstop allows for pre-setting trigger travel to achieve consistent line widths.
Image 4.1: Close-up view of the PointZero PZ-260 dual-action airbrush, showing its design and included accessories like the pipette and nozzle wrench.
4.2. Mini Air Compressor
This portable and lightweight oil-less airbrush compressor delivers 25 PSI of air pressure (0.4 CFM). It is designed for intermittent use, providing efficient and quiet operation for its size. The compressor is compact and easy to transport.
Image 4.2: The PointZero mini air compressor with its power adapter and air hose.
5. Setup Guide
Follow these steps to set up your airbrush kit:
- Unpack Components: Carefully remove all items from the packaging. Inspect for any damage.
- Position Compressor: Place the mini compressor on a stable, flat surface in a well-ventilated area. Ensure there is adequate space around it for air circulation.
- Connect Air Hose: Connect one end of the 6-foot air hose to the air outlet on the compressor. Hand-tighten until secure.
- Connect Airbrush: Connect the other end of the air hose to the air inlet on the bottom of the airbrush. Hand-tighten until secure.
- Connect Power: Plug the power adapter into the compressor's power input, then plug the adapter into a standard electrical outlet.
6. Operating Instructions
6.1. Paint Preparation
- Always dilute your paint to a milk-like consistency suitable for airbrushing. The ideal ratio of paint to thinner can vary depending on the paint type and brand.
- Use the included pipette to transfer paint into the airbrush cup.
6.2. Basic Operation
- Turn On Compressor: Press the power button on the mini compressor. The compressor will begin to generate air pressure.
- Test Airflow: Point the airbrush away from your work surface. Press down on the trigger to release air.
- Apply Paint: While pressing down for air, pull the trigger back to release paint. The further back you pull, the more paint will be released.
- Adjust Spray Pattern: Practice on a scrap surface to get a feel for the airbrush. Adjust the distance from the surface and the trigger pull to achieve desired line widths and coverage.
- Needle Backstop: Use the needle backstop screw at the rear of the airbrush to limit how far back the trigger can be pulled, helping to maintain consistent paint flow for repetitive tasks.
- Compressor Usage: The mini compressor is designed for intermittent use. For optimal performance and longevity, operate for approximately 30 minutes, then allow it to cool down for 15-30 minutes.
7. Maintenance and Cleaning
Proper cleaning and maintenance are crucial for the longevity and performance of your airbrush kit.
7.1. Airbrush Cleaning
- After Each Use: Empty any remaining paint from the cup. Add a small amount of appropriate airbrush cleaner or thinner to the cup. Spray through the airbrush until the cleaner runs clear.
- Deep Cleaning: Periodically, or if paint flow is restricted, disassemble the airbrush components (nozzle, needle, cap). Clean each part thoroughly with airbrush cleaner and a soft brush. Use the nozzle wrench for careful disassembly of the nozzle.
- Needle Care: Be extremely careful with the needle, as it is delicate and can bend easily. Clean it gently with a soft cloth and cleaner.
- Reassembly: Reassemble the airbrush carefully, ensuring all parts are correctly seated and tightened. Do not overtighten.
7.2. Compressor Maintenance
- The mini compressor is oil-less and requires minimal maintenance.
- Keep the compressor's air intake vents clear of dust and debris to ensure proper cooling.
- Store the compressor in a dry, clean environment.

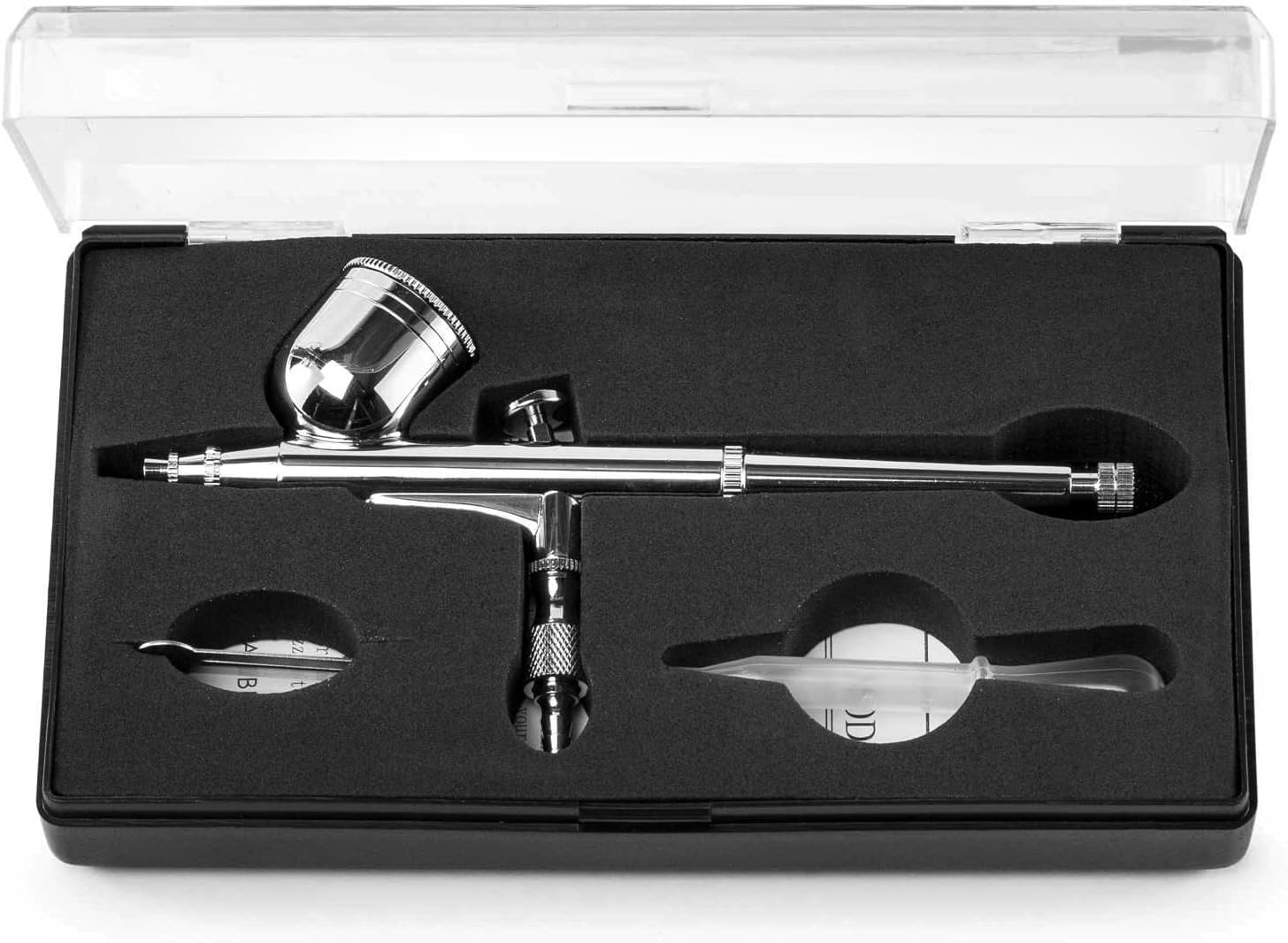

Image 7.1: The PZ-260 airbrush stored in its protective case, illustrating proper storage after cleaning.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No air from airbrush | Compressor off; hose disconnected; airbrush clogged | Check power; secure hose; clean airbrush nozzle. |
| No paint flow | Paint too thick; nozzle clogged; needle bent/damaged | Dilute paint; clean nozzle; inspect/replace needle. |
| Splattering or inconsistent spray | Paint too thin/thick; nozzle partially clogged; air pressure too low/high | Adjust paint consistency; clean nozzle; ensure stable air pressure. |
| Air bubbles in paint cup | Loose nozzle; damaged nozzle; air cap loose | Tighten nozzle/air cap; inspect nozzle for damage. |
| Compressor not turning on | Not plugged in; power switch off; power adapter issue | Check power connections; ensure switch is on; test adapter. |
9. Technical Specifications
- Product Dimensions: 12 x 8 x 5 inches
- Item Weight: 2.5 pounds
- Manufacturer: PointZero
- Model Number: 4336951612
- Airbrush Type: Dual-Action, Internal-Mix (PZ-260)
- Airbrush Nozzle Size: 0.3mm (pre-installed)
- Compressor Type: Oil-less Mini Compressor (Elite-55E)
- Compressor Air Pressure: 25 PSI (0.4 CFM)
- Assembly Required: No
- Batteries Required: No
10. Warranty and Support
10.1. Warranty Information
This PointZero airbrush kit is covered by a 90-day limited manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, alteration, or unauthorized repair.
10.2. Customer Support
For technical assistance, warranty claims, or to inquire about replacement parts, please contact PointZero customer support. Refer to the contact information provided with your purchase or visit the official PointZero website for support details.
Additionally, remember to access your 7 bonus e-Book airbrushing guides for further learning and tips. These guides cover topics such as cake airbrushing, basic artistic skills, essential airbrushing tips, strokes and techniques, cleaning, and lettering.
Image 10.1: Cover of the 'How To Airbrush' e-Book, providing educational resources for users.
