D-Link DHP-1320 Wireless-N PowerLine Router User Manual

1. Introduction

The D-Link DHP-1320 Wireless-N PowerLine Router combines wireless networking with PowerLine AV technology, allowing you to extend your network using your home's existing electrical wiring. This device provides both Wi-Fi and wired connectivity for various devices.

Figure 1: D-Link DHP-1320 Wireless-N PowerLine Router

This image shows the front view of the D-Link DHP-1320 Wireless-N PowerLine Router, highlighting its compact design and external antennas.

Key Features:

• IEEE 802.11n and 802.11g Compliant for Wi-Fi connectivity.
• Up to 300 Mbps throughput for Wi-Fi networks.
• Up to 200 Mbps throughput for PowerLine AV networks.
• Utilizes your home’s existing electrical wiring for network extension.
• Three 10/100 Mbps Fast Ethernet switch ports for wired connections.
• Supports WPA, WPA2, and WPS security protocols.

2. Setup and Installation

Follow these steps to set up your D-Link DHP-1320 Wireless-N PowerLine Router.

2.1 Package Contents

• D-Link DHP-1320 Wireless-N PowerLine Router
• Ethernet Cable
• Power Adapter
• Quick Installation Guide (refer to this manual for detailed instructions)

2.2 Connecting the Router

1. Connect to Power: Plug the power adapter into the router's AC IN port and then into a standard electrical outlet.
2. Connect to Internet Source: Connect an Ethernet cable from your modem or existing router's LAN port to the INTERNET port (WAN) on the DHP-1320.
3. Connect Wired Devices: For wired devices (e.g., computers, gaming consoles), connect an Ethernet cable from the device to any of the three LAN ports (1, 2, or 3) on the DHP-1320.
4. Power On: Press the ON/OFF button to power on the router.

Figure 2: Rear Panel Connections

This image illustrates the rear panel of the DHP-1320, showing the Internet port, LAN ports, Reset button, USB port, ON/OFF switch, and AC IN port. The AP/RT switch is also visible.

2.3 PowerLine AV Pairing

To establish a secure PowerLine network with other D-Link PowerLine AV adapters, follow these steps:

1. Ensure all PowerLine AV devices, including the DHP-1320, are plugged into electrical outlets.
2. Locate the PowerLine Sync Connection (ENY) Button on the side of the DHP-1320.
3. Press and hold the ENY button on the DHP-1320 for 1-3 seconds. The PowerLine AV LED on the front panel should begin to flash.
4. Within two minutes, press and hold the corresponding sync button on your other PowerLine AV adapter for 1-3 seconds.
5. The PowerLine AV LEDs on both devices should turn solid, indicating a successful secure connection.

Figure 3: Side View with PowerLine Sync Button

This image shows the side of the DHP-1320, highlighting the PowerLine Sync Connection (ENY) button, which is used for pairing with other PowerLine AV devices.

2.4 Wi-Fi Configuration

The DHP-1320 comes with a default Wi-Fi network name (SSID) and password, usually found on a label on the device.

• To connect to Wi-Fi, search for the default SSID on your wireless device and enter the default password.
• For advanced settings, access the router's web-based configuration utility by typing its default IP address (e.g., 192.168.0.1) into a web browser. Refer to the Quick Installation Guide for default login credentials.

3. Operation

Understanding the router's indicators and modes of operation.

3.1 LED Indicators

The front panel LEDs provide status information about the router's operation.

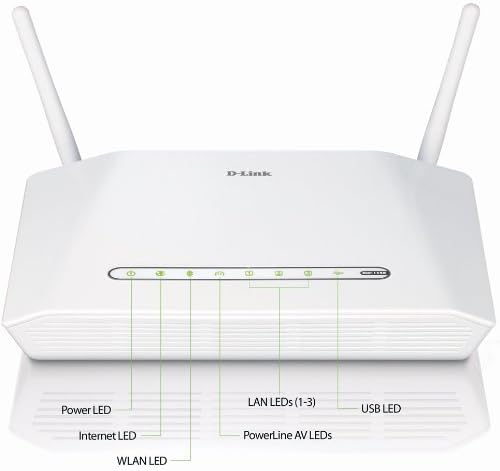

Figure 4: Front Panel LED Indicators

This image displays the front panel of the DHP-1320, with labels pointing to the Power LED, Internet LED, WLAN LED, LAN LEDs (1-3), PowerLine AV LEDs, and USB LED, indicating their respective statuses.

3.2 Router Modes (AP/RT Switch)

The DHP-1320 features an AP/RT switch on its rear panel, allowing you to select its operational mode:

• RT (Router) Mode: In this mode, the DHP-1320 acts as a primary router, providing network address translation (NAT) and DHCP services. Connect your modem to the Internet port.
• AP (Access Point) Mode: In this mode, the DHP-1320 functions as a wireless access point, extending an existing network. Connect it to a LAN port of your main router.

Note: Change the AP/RT switch position only when the device is powered off to prevent potential configuration issues.

4. Maintenance

Proper maintenance ensures optimal performance and longevity of your DHP-1320 router.

4.1 Cleaning

• Ensure the device is powered off and unplugged before cleaning.
• Use a soft, dry cloth to wipe the exterior of the router.
• Do not use liquid cleaners or aerosol sprays, as they may damage the device.
• Keep ventilation openings clear of dust and obstructions.

4.2 Firmware Updates

Periodically check the D-Link support website for firmware updates. Firmware updates can improve performance, add new features, and fix bugs. Refer to the D-Link website for instructions on how to update the firmware.

4.3 Resetting the Router

If you encounter persistent issues or forget your login credentials, you may need to reset the router to its factory default settings.

1. With the router powered on, locate the RESET button on the rear panel (refer to Figure 2).
2. Use a paperclip or a similar pointed object to press and hold the RESET button for approximately 10 seconds.
3. Release the button when the Power LED begins to flash or all LEDs briefly illuminate.
4. The router will reboot with factory default settings. You will need to reconfigure your network settings.

5. Troubleshooting

This section addresses common issues you might encounter with your DHP-1320 router.

5.1 No Internet Connection

• Check Cables: Ensure the Ethernet cable from your modem is securely connected to the DHP-1320's INTERNET port.
• Modem Status: Verify that your modem is working correctly and has an active internet connection.
• Router Mode: Confirm the AP/RT switch is set to RT (Router) mode if the DHP-1320 is your primary router.
• Reboot Devices: Power cycle your modem, then the DHP-1320, and then your connected devices.
• Internet LED: Check if the Internet LED on the front panel is solid green. If not, there might be an issue with your internet service provider or modem connection.

5.2 Wi-Fi Connectivity Issues

• WLAN LED: Ensure the WLAN LED is solid or flashing green. If off, Wi-Fi may be disabled.
• SSID and Password: Verify you are connecting to the correct Wi-Fi network (SSID) and entering the correct password.
• Signal Strength: Move closer to the router to check if signal strength is an issue.
• Interference: Other wireless devices or appliances can cause interference. Try changing the Wi-Fi channel in the router's settings.

5.3 PowerLine AV Network Not Connecting

• PowerLine AV LED: Check if the PowerLine AV LED on both devices is solid green. If not, they are not paired or connected.
• Electrical Outlets: Ensure both PowerLine devices are plugged directly into wall outlets, not power strips or surge protectors.
• Pairing Process: Re-attempt the PowerLine AV pairing process as described in Section 2.3.
• Electrical Circuit: PowerLine devices work best when on the same electrical circuit. Large appliances or circuit breakers can affect performance.

5.4 Router Requires Frequent Resets

If your router frequently requires reboots or resets to restore functionality, consider the following:

• Firmware: Ensure your router's firmware is up to date.
• Overheating: Ensure the router has adequate ventilation and is not placed in an enclosed space.
• Power Supply: Verify the power adapter is the original D-Link adapter and is functioning correctly.
• Network Load: Excessive network traffic or too many connected devices might strain the router.
• Factory Reset: As a last resort, perform a factory reset (Section 4.3) and reconfigure the settings carefully.

6. Specifications

Detailed technical specifications for the D-Link DHP-1320 Wireless-N PowerLine Router.

Figure 5: Technical Specifications Overview

This image provides a visual overview of the DHP-1320's technical specifications and a diagram illustrating a typical network setup using PowerLine AV technology.

7. Warranty Information

The D-Link DHP-1320 Wireless-N PowerLine Router comes with a 1-Year Limited Warranty.

For detailed terms and conditions of the warranty, please refer to the warranty card included with your product or visit the official D-Link website. This warranty covers defects in materials and workmanship under normal use.

8. Technical Support

If you require further assistance or encounter issues not covered in this manual, please contact D-Link Technical Support.

• Online Support: Visit the official D-Link support website for FAQs, troubleshooting guides, firmware downloads, and contact information.
• Website: www.dlink.com

Please have your product model number (DHP-1320) and serial number ready when contacting support.
