ELK-9244 Sensitive DPDT Relay 12/24V

Product Overview

The ELK-9244 is a sensitive Double Pole Double Throw (DPDT) relay designed for applications requiring a low trigger current or voltage. This relay is versatile, capable of operating with both 12V and 24V systems, and provides two independent sets of contacts for switching various loads.

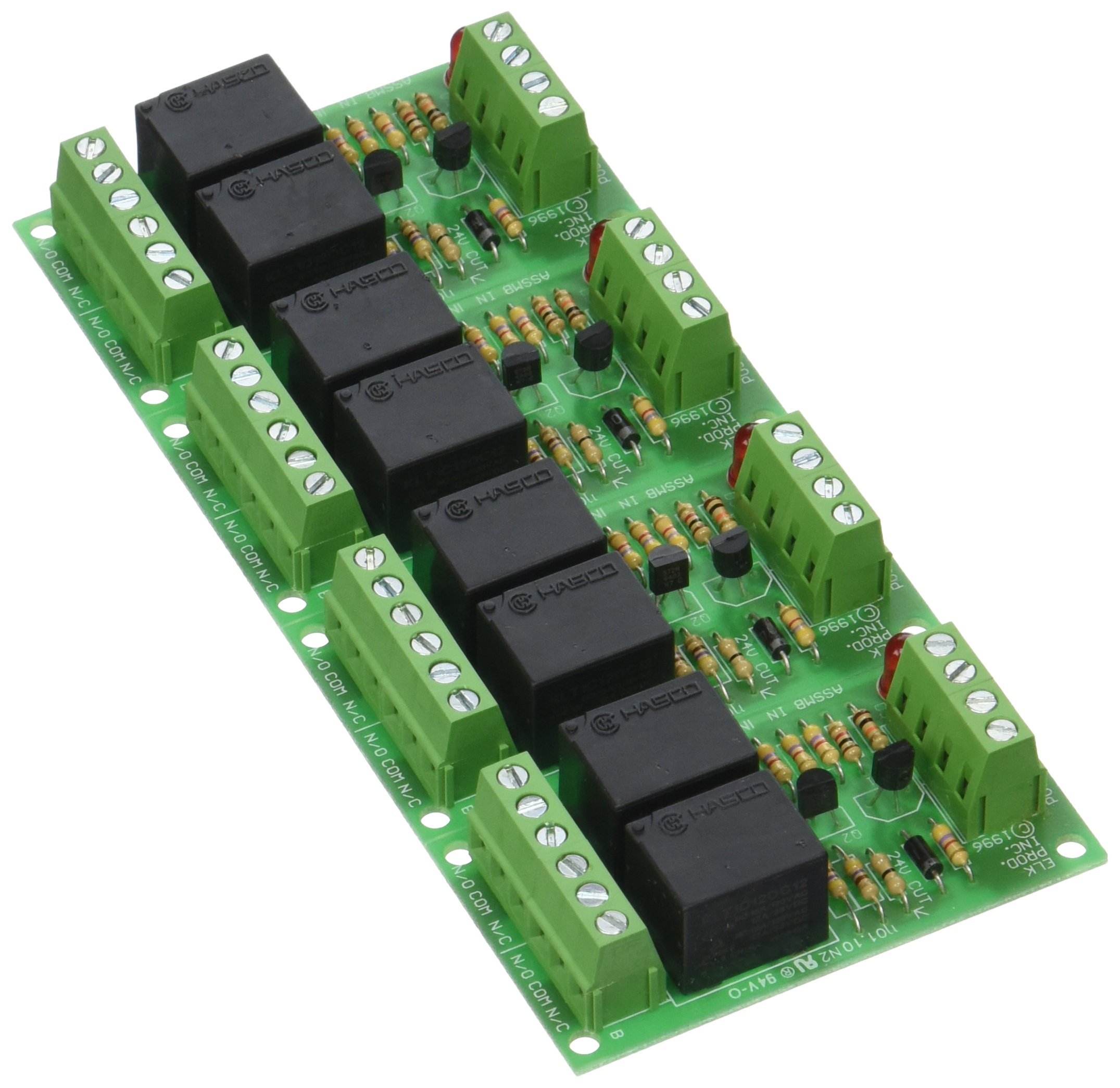

Image: The ELK-9244 Sensitive DPDT Relay, showing its compact form factor and terminal connections.

Setup and Installation

Proper installation is crucial for the reliable operation of the ELK-9244 relay. Follow these guidelines for setup:

1. Mounting: The ELK-9244 is designed for PCB (Printed Circuit Board) mount applications. Ensure it is securely soldered or mounted to a compatible circuit board.
2. Power Connection: The relay coil can be energized by either a 12 Volt or 24 Volt DC power source. Connect the appropriate voltage to the coil terminals. Observe polarity if indicated on the relay or PCB.
3. Trigger Input: This sensitive relay requires a relatively small trigger current/voltage to activate. Ensure your control circuit provides a clean signal within the 12V to 24V range.
4. Load Connections: The relay features Double Pole Double Throw (DPDT) contacts. This means it has two independent sets of contacts, each with a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Connect your load circuits to the appropriate contact terminals based on your application's requirements. The contact material is copper for reliable conductivity.
5. Wiring: Use appropriate gauge wiring for both the coil power and the switched load circuits to prevent overheating and ensure optimal performance.

Operating Instructions

The ELK-9244 relay operates automatically based on the presence or absence of a trigger voltage to its coil. It functions as follows:

• De-energized State: When no voltage is applied to the relay coil, the Common (C) contacts are connected to the Normally Closed (NC) contacts. The Normally Open (NO) contacts remain disconnected.
• Energized State: When a 12V or 24V trigger voltage is applied to the relay coil, the coil energizes, causing the contacts to switch. The Common (C) contacts then connect to the Normally Open (NO) contacts, and the Normally Closed (NC) contacts become disconnected.
• DPDT Functionality: Since it is a DPDT relay, both sets of contacts switch simultaneously when the coil is energized, allowing for independent control of two separate circuits or for switching both sides of a single circuit.

The relay is designed for automatic operation, meaning it will switch states as soon as the coil voltage is applied or removed.

Maintenance

The ELK-9244 relay is designed for long-term, reliable operation with minimal maintenance. To ensure continued performance:

• Environmental Conditions: Keep the relay in a dry environment, free from excessive dust, moisture, and corrosive substances.
• Connection Integrity: Periodically inspect all wiring connections to ensure they are secure and free from corrosion. Loose connections can lead to intermittent operation or failure.
• Contact Life: While the copper contacts are durable, frequent switching of high inductive loads can eventually degrade contact performance. If the relay is switching such loads, consider its operational cycles.
• Cleaning: If necessary, gently clean the exterior of the relay with a dry, soft cloth. Do not use liquid cleaners or solvents.

Troubleshooting

If the ELK-9244 relay is not functioning as expected, consider the following troubleshooting steps:

• Relay Not Activating:
  • Verify that the correct coil voltage (12V or 24V DC) is being applied to the coil terminals.
  • Check for proper polarity if the coil is sensitive to it.
  • Ensure the trigger signal is strong enough and consistent.
  • Inspect coil connections for breaks or shorts.
• Load Not Switching:
  • Confirm the relay coil is activating (you may hear a faint click).
  • Check the wiring to the Common (C), Normally Open (NO), and Normally Closed (NC) terminals.
  • Ensure the load itself is functional and correctly wired.
  • Verify that the load current and voltage do not exceed the relay's contact ratings.
• Intermittent Operation:
  • Inspect all connections for looseness or corrosion.
  • Check for voltage fluctuations in the coil power supply.
  • Ensure the operating environment is stable and free from excessive vibration or temperature changes.

Specifications

Warranty and Support

Specific warranty information for the ELK-9244 relay is not provided in this manual. For details regarding product warranty, please refer to the official Elk Products website or contact their customer service directly.

For technical support, additional documentation, or inquiries, please visit the Elk Products official website or consult your authorized dealer.
