1. Introduction
The GE 52056 Continuity Tester is designed to check for breaks in fuses and other electrical conductors. This device helps determine if an electrical circuit can be completed between two points. It is an essential tool for basic electrical diagnostics, ensuring safety and proper function of electrical components.
This manual provides instructions for the safe and effective use of your continuity tester.
2. Safety Information
WARNING: To prevent electric shock or injury, always observe the following safety precautions:
- DO NOT use this continuity tester on any live electrical circuits. Ensure all power is disconnected before testing.
- Always wear appropriate personal protective equipment, such as safety glasses.
- Keep the device dry and clean. Do not use in wet conditions.
- If the device appears damaged, do not use it.
- Any indication of continuity faults or complex electrical issues should be referred to a qualified electrician for correction.
- This device is intended for checking continuity only, not for measuring voltage or current.
3. Package Contents
- GE 52056 Continuity Tester
- Note: One AAA battery is required and not included.

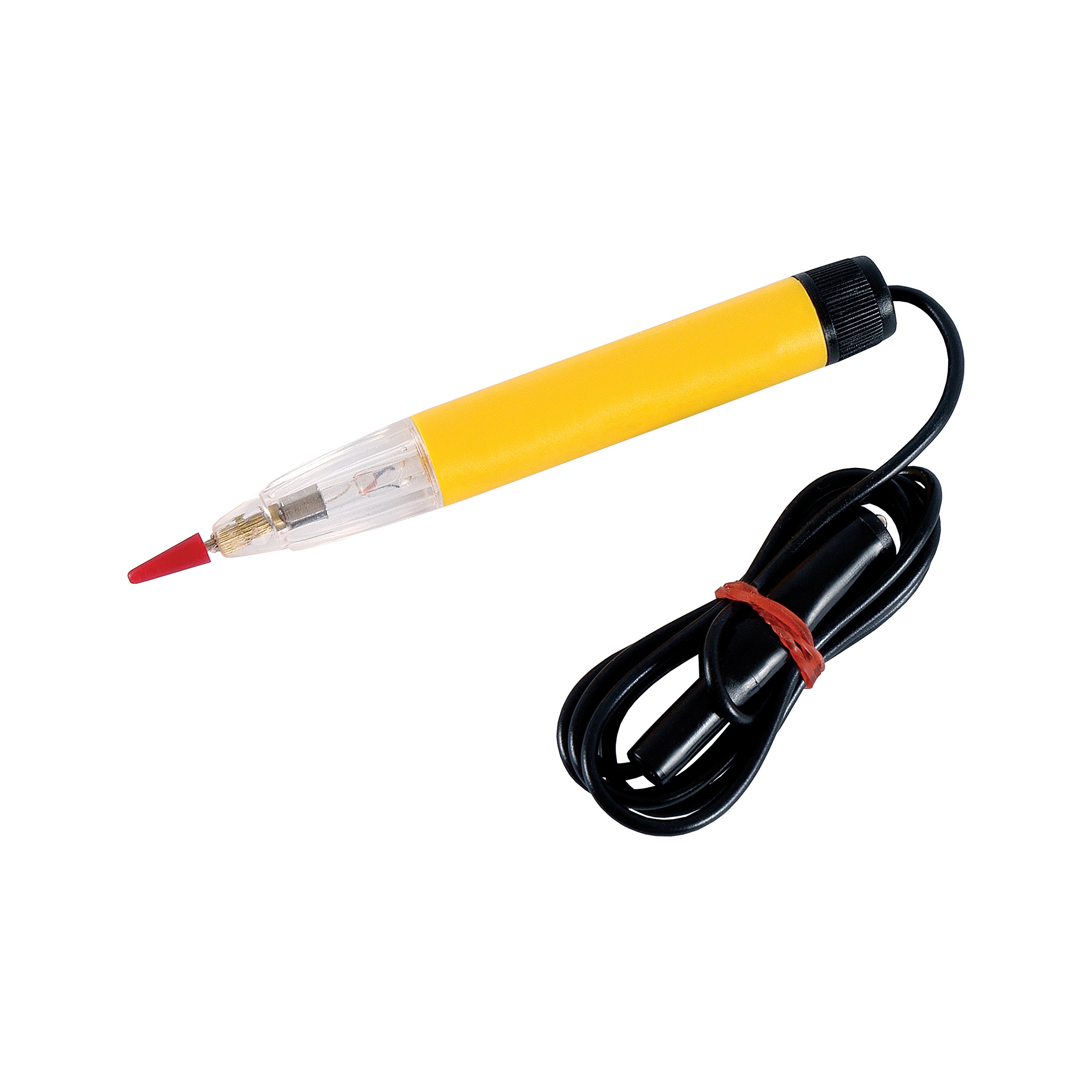

Image 1: The GE 52056 Continuity Tester, showing the yellow pen-style body, pointed probe, and attached black alligator clip.
4. Setup
4.1 Battery Installation
The GE 52056 Continuity Tester requires one AAA battery (not included) for operation.
- Unscrew the cap at the rear end of the tester.
- Insert one AAA battery, ensuring the correct polarity (+ and - terminals).
- Screw the cap back on securely.
Image 2: The GE 52056 Continuity Tester shown in its retail packaging, indicating battery requirement.
5. Operating Instructions
Follow these steps to test for continuity:
- Ensure Power is OFF: Before beginning any test, confirm that the circuit or component you are testing is completely de-energized. Disconnect power at the source (e.g., circuit breaker).
- Connect Alligator Clip: Attach the alligator clip of the continuity tester to one end of the conductor or component you wish to test. Ensure a good, secure connection.
- Touch Probe: Touch the metal probe tip of the tester to the other end of the conductor or component.
- Observe Indication:
- If the tester's light illuminates, it indicates continuity. This means there is a complete electrical path between the two points.
- If the tester's light does not illuminate, it indicates an open circuit or a break in the conductor.
- Interpret Results: Use the results to diagnose breaks in fuses, wires, light bulb filaments, or other electrical paths.
Example applications: Testing a fuse (clip to one end, probe to the other), testing a wire (clip to one end, probe to the other), testing a light bulb (clip to side contact, probe to bottom contact).
6. Maintenance
6.1 Cleaning
Wipe the tester with a dry, soft cloth. Do not use abrasive cleaners or solvents.
6.2 Battery Replacement
If the tester's light becomes dim or fails to illuminate when testing a known good circuit, replace the AAA battery by following the steps in Section 4.1.
6.3 Storage
Store the continuity tester in a dry place, away from extreme temperatures and direct sunlight. If storing for extended periods, remove the battery to prevent leakage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tester light does not illuminate on a known good circuit. | Dead or improperly installed battery. | Replace the AAA battery, ensuring correct polarity. |
| Tester light is dim. | Low battery. | Replace the AAA battery. |
| Intermittent light or no light. | Poor connection at the probe or alligator clip. | Ensure firm and clean contact points for both the probe and the alligator clip. |
| Tester does not work after being dropped or exposed to moisture. | Internal damage. | Discontinue use. The device may be damaged beyond repair. |
8. Specifications
- Brand: GE
- Model: 52056
- Power Source: 1 x AAA Battery (not included)
- Item Weight: 0.1 Pounds (approximately 45 grams)
- Item Dimensions (L x W x H): 0.86 x 0.75 x 5 inches (approximately 2.18 x 1.91 x 12.7 cm)
- Function: Continuity testing for non-live circuits
9. Warranty Information
This GE 52056 Continuity Tester is backed by a 90-day limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, or normal wear and tear.
Please retain your proof of purchase for warranty claims.
10. Support
For technical assistance, warranty claims, or further information regarding your GE 52056 Continuity Tester, please refer to the contact information provided with your product packaging or visit the official GE product support website.
Note: Product specifications and features are subject to change without notice.
