Edelmann 8964 Power Steering Rack and Pinion Seal Kit Instruction Manual

Introduction

The Edelmann 8964 Power Steering Rack and Pinion Seal Kit is designed to restore the functionality of your vehicle's power steering system by addressing leaks in the rack and pinion assembly. This kit provides a cost-effective solution to repair common power steering issues without replacing the entire steering rack. It includes all necessary components and detailed instructions to facilitate a proper repair.

Edelmann, with extensive manufacturing experience, ensures that these repair kits meet or exceed original equipment (OE) specifications for form, fit, and function.

Product Overview

The Edelmann 8964 kit includes high-quality components specifically chosen to reseal your leaking rack and pinion. Key features include:

• Comprehensive Components: Includes all necessary O-rings, seals, rack bushings, and hardware parts for the specific application.
• OE Specification Compliance: Components meet or exceed original equipment specifications for reliable performance.
• Cost-Effective Repair: Offers an affordable alternative to replacing the entire steering rack.
• Detailed Instructions: Each kit comes with comprehensive instruction sheets, including exploded view illustrations and step-by-step service procedures.

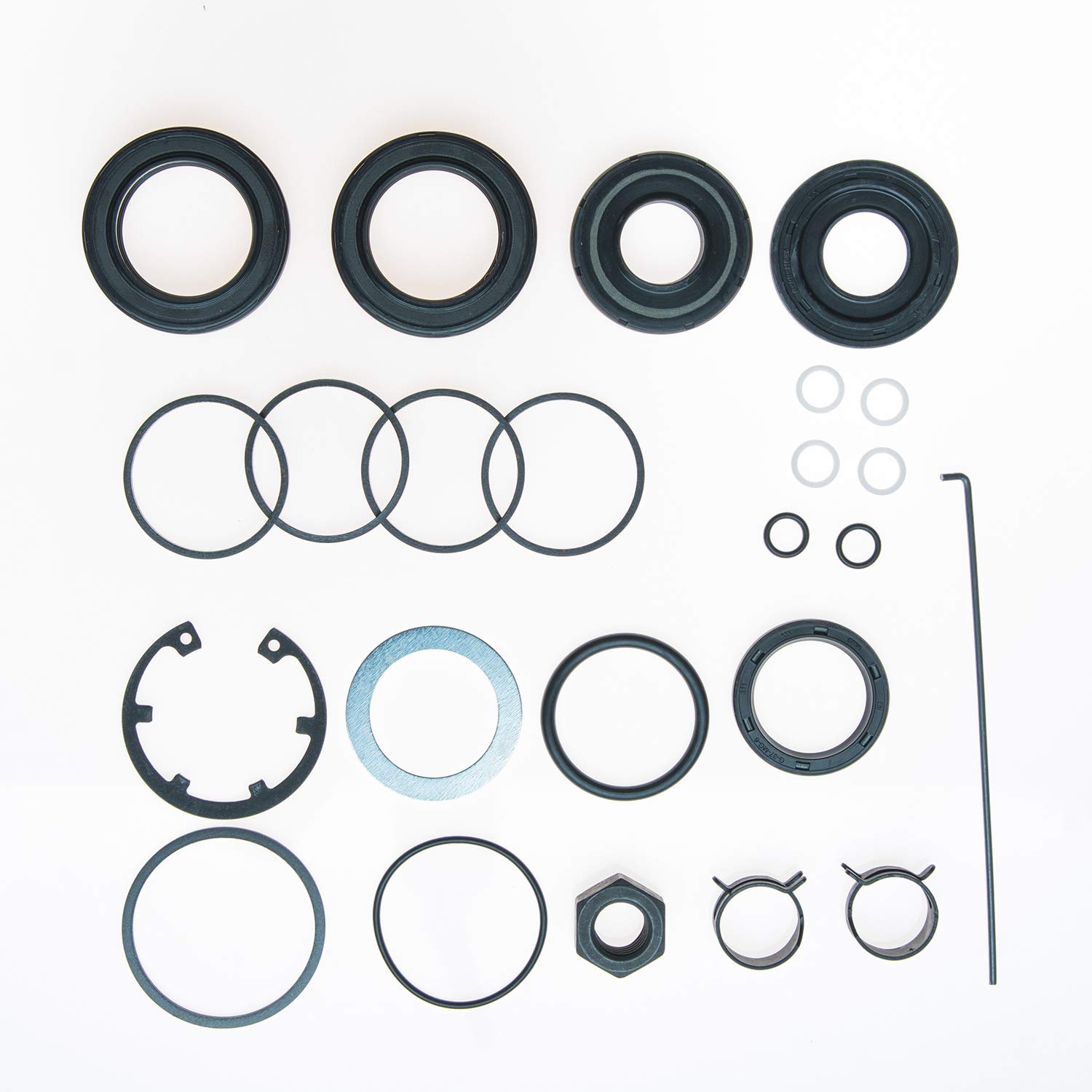

Figure 1: Edelmann 8964 Power Steering Rack and Pinion Seal Kit components. This image displays the various components included in the Edelmann 8964 Power Steering Rack and Pinion Seal Kit, designed for repairing power steering rack and pinion leaks.

Installation and Setup

Installation of the Edelmann 8964 Power Steering Rack and Pinion Seal Kit requires mechanical knowledge and specialized tools. It is recommended that installation be performed by a qualified automotive technician.

Before You Begin:

• Review the detailed instruction sheets provided within the kit thoroughly. These instructions include exploded view illustrations and step-by-step service procedures specific to your application.
• Ensure you have all necessary tools and safety equipment.
• Safely lift and secure the vehicle.
• Drain the power steering fluid from the system.

General Installation Steps (Refer to Kit Instructions for Specifics):

1. Remove the existing rack and pinion assembly from the vehicle.
2. Disassemble the rack and pinion unit according to the kit's instructions.
3. Carefully remove all old seals, O-rings, and bushings. Inspect all components for wear or damage.
4. Clean all internal and external surfaces of the rack and pinion housing.
5. Install the new seals, O-rings, and bushings from the Edelmann 8964 kit, ensuring proper orientation and lubrication as specified.
6. Reassemble the rack and pinion unit, paying close attention to torque specifications for fasteners.
7. Reinstall the rack and pinion assembly into the vehicle.
8. Refill the power steering system with the appropriate power steering fluid and bleed the system to remove air.

Operating (Post-Installation)

After successful installation and bleeding of the power steering system, the vehicle's steering should feel smooth and responsive, without excessive play or stiffness. The primary indication of proper operation is the absence of power steering fluid leaks and consistent power assist during steering maneuvers.

Monitor the power steering fluid level regularly after installation, especially during the first few days of operation, to ensure no air remains in the system and no new leaks develop.

Maintenance

Regular maintenance of your power steering system helps ensure its longevity and prevents future leaks. While the Edelmann 8964 kit provides a durable repair, ongoing care is important.

• Fluid Level Check: Periodically check the power steering fluid level and top it off as needed with the manufacturer-recommended fluid.
• Fluid Condition: Inspect the power steering fluid for discoloration or a burnt smell. If the fluid appears dark or smells burnt, consider a fluid flush and replacement.
• Leak Inspection: Regularly inspect the rack and pinion assembly, hoses, and pump for any signs of fluid leaks. Address any new leaks promptly.
• Component Inspection: During other vehicle maintenance, visually inspect power steering components for wear or damage.

Troubleshooting

If you experience issues after installing the Edelmann 8964 Power Steering Rack and Pinion Seal Kit, consider the following common troubleshooting steps:

• Continued Leaks:
  • Ensure all seals were installed correctly and are not pinched or damaged.
  • Verify that all fasteners are tightened to the correct torque specifications.
  • Inspect the rack and pinion housing for any cracks or damage that might have been overlooked during the repair.
  • Confirm the correct fluid type was used.
• No Power Assist or Stiff Steering:
  • Check the power steering fluid level. Low fluid is a common cause.
  • Bleed the power steering system again to ensure all air is removed. Air in the system can cause inconsistent assist.
  • Inspect the power steering pump and belt for proper operation and tension.
  • Ensure all connections and hoses are securely attached and not kinked.
• Noises (Whining, Groaning):
  • Often indicates air in the system or low fluid. Re-bleed the system and check fluid level.
  • Could also indicate a failing power steering pump, which may not be related to the seal kit installation.

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional automotive technician.

Specifications

Warranty and Support

Specific warranty information for the Edelmann 8964 Power Steering Rack and Pinion Seal Kit is typically provided with the product packaging or can be obtained from the point of purchase. Please retain your proof of purchase for warranty claims.

For technical support, detailed installation guidance beyond the included instructions, or inquiries regarding product compatibility, please contact Edelmann customer service or visit their official website. Always refer to the manufacturer's official resources for the most accurate and up-to-date information.
