Dorman 615-009 Spindle Nut Instruction Manual

Product Overview

The Dorman 615-009 Spindle Nut is a direct replacement component designed to match the fit and function of the original part on specified vehicles. This component is engineered from quality materials to ensure reliable performance and a long service life, providing an ideal solution for replacing a missing or fatigued original part.

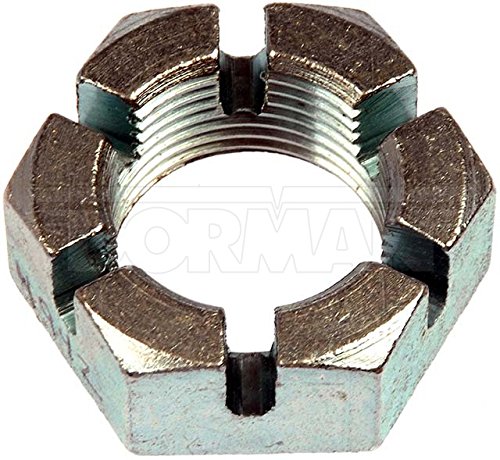

Image: Dorman 615-009 Spindle Nut. This image displays the hexagonal spindle nut, which features internal threading and six slots around its perimeter designed to secure a cotter pin, preventing loosening.

Key Features:

• Direct Replacement: Matches the fit and function of the factory part on specified years, makes, and models.
• Ideal Solution: A reliable replacement for an original part that is missing or has failed due to fatigue.
• Durable Construction: Made from quality materials to ensure reliable performance and long service life.
• Trustworthy Quality: Backed by a team of product experts in the United States and over a century of automotive experience.

Safety Information

Always prioritize safety when working on automotive components. Improper installation or handling can lead to serious injury or vehicle damage.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on jack stands before working underneath it. Never rely solely on a jack.
• Refer to your vehicle's specific service manual for detailed torque specifications and procedures.
• If you are unsure about any step, consult a qualified automotive technician.
• Keep children and pets away from the work area.

Package Contents

• 1 x Dorman 615-009 Spindle Nut

Note: Additional components such as cotter pins or washers may be required for complete installation and are typically sold separately or are part of the existing assembly.

Installation Guide

This section provides a general overview of spindle nut installation. Always consult your vehicle's specific repair manual for precise instructions and torque specifications.

1. Preparation: Park the vehicle on a level surface, engage the parking brake, and block the wheels. Loosen the lug nuts on the wheel associated with the spindle nut to be replaced.
2. Lift and Secure: Lift the vehicle using a floor jack and secure it safely on jack stands. Remove the wheel.
3. Access Spindle Nut: Depending on the vehicle, you may need to remove the brake caliper, rotor, and dust cap to access the spindle nut. Remove the cotter pin securing the old spindle nut.
4. Remove Old Nut: Use an appropriate socket or wrench to carefully remove the old spindle nut. Inspect the spindle threads for any damage.
5. Install New Nut: Thread the new Dorman 615-009 Spindle Nut onto the spindle by hand to ensure it starts correctly.
6. Torque to Specification: Using a torque wrench, tighten the spindle nut to the vehicle manufacturer's specified torque. This is critical for proper wheel bearing preload and safety.
7. Secure with Cotter Pin: Align the slots in the spindle nut with the hole in the spindle and insert a new cotter pin. Bend the ends of the cotter pin to secure it.
8. Reassemble: Reinstall any removed components (dust cap, rotor, brake caliper). Reattach the wheel and hand-tighten the lug nuts.
9. Lower Vehicle: Lower the vehicle to the ground and torque the lug nuts to the manufacturer's specifications.
10. Final Check: Test drive the vehicle at low speed to ensure proper function and listen for any unusual noises.

Warning: Incorrect torque or improper installation of the spindle nut can lead to wheel bearing failure, wheel detachment, and severe accidents. If you are not confident in performing this procedure, seek professional assistance.

Function and Purpose

The Dorman 615-009 Spindle Nut plays a critical role in the vehicle's suspension and steering system. Its primary function is to secure the wheel hub and bearing assembly onto the spindle, maintaining proper wheel bearing preload. This ensures the wheel rotates smoothly and safely, preventing excessive play or wobble. The design, often featuring slots for a cotter pin, provides an additional layer of security against loosening due to vibrations and forces encountered during driving.

Maintenance

Spindle nuts themselves typically do not require routine maintenance. However, it is recommended to periodically inspect the wheel bearing assembly and associated components during routine vehicle service or tire rotations. Look for:

• Any signs of looseness in the wheel.
• Unusual noises (e.g., grinding, humming) coming from the wheel area, which could indicate a failing wheel bearing.
• Damage to the cotter pin or the spindle nut itself.

If any issues are detected, consult a qualified technician for diagnosis and repair.

Troubleshooting

While the spindle nut itself is a passive component, issues related to its installation or the components it secures can manifest as symptoms. Here are common issues and potential causes:

If troubleshooting does not resolve the issue, or if you suspect a more complex problem, it is always best to seek professional automotive service.

Specifications

Warranty and Support

Dorman products are manufactured to high-quality standards. For specific warranty information regarding the Dorman 615-009 Spindle Nut, please refer to the official Dorman website or contact Dorman customer support directly.

Dorman Customer Support:

• Visit the Dorman Products Website for contact information and FAQs.
• Refer to the product packaging for any specific warranty statements or contact details.

When contacting support, please have your product model number (615-009) and purchase details ready.
