1. Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of your Velvac 022025 15-Foot Coiled Nylon Air Hose Assembly. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or property damage.
- Always wear appropriate personal protective equipment (PPE), including eye protection, when working with compressed air systems.
- Ensure all connections are secure and free from leaks before applying air pressure.
- Do not exceed the maximum rated pressure for the air hose or connected equipment.
- Inspect the hose regularly for cuts, abrasions, kinks, or other damage. Replace damaged hoses immediately.
- Keep the air hose away from sharp objects, hot surfaces, and moving parts.
- Do not use the air hose for purposes other than its intended application (e.g., air brake systems, pneumatic tools within specified pressure limits).
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Product Overview
The Velvac 022025 is a 15-foot coiled nylon air hose assembly designed for reliable air transfer in various applications, commonly used in heavy-duty truck and trailer air brake systems. Its coiled design allows for easy extension and retraction, minimizing tangles and saving space.

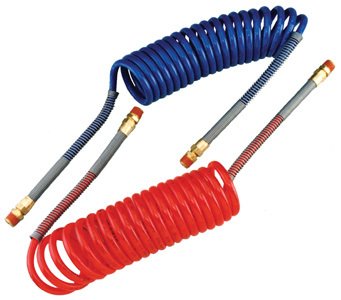

Figure 1: Velvac 022025 15-Foot Coiled Nylon Air Hose Assembly. This image displays the red and blue coiled nylon hoses, each with brass fittings at the ends, designed for air brake connections.
4. Setup and Installation
- Inspect Components: Before installation, carefully inspect the air hose assembly for any signs of damage, such as cuts, kinks, or damaged fittings. Do not use if damaged.
- Prepare Connections: Ensure the air ports on your equipment (e.g., truck, trailer, air compressor) are clean and free of debris.
- Connect Fittings: Attach the brass fittings of the coiled air hose to the corresponding air ports. Hand-tighten first, then use an appropriate wrench to secure the connections. Do not overtighten, as this can damage the fittings or threads.
- Check for Leaks: Once connected, slowly apply air pressure to the system. Use a soapy water solution to check all connections for air leaks. Bubbles indicate a leak that must be sealed before operation.
- Route Hose: Ensure the hose is routed in a way that prevents kinking, rubbing against sharp edges, or interference with moving parts. Allow sufficient slack for movement if connecting to moving components.
5. Operating Instructions
The Velvac 022025 air hose is designed for straightforward operation once properly installed.
- Extension: Gently pull the coiled hose to extend it to the desired length. The coiled design will naturally retract the hose when tension is released.
- Connection: Ensure the quick-connect fittings (if applicable) are fully engaged and locked into place to prevent accidental disconnection during operation.
- Disconnection: To disconnect, release the air pressure from the system first, then disengage the quick-connect fittings or unscrew the threaded connections.
- Storage: When not in use, allow the hose to retract fully. Store it in a clean, dry place, away from direct sunlight, extreme temperatures, and corrosive chemicals.
6. Maintenance
Regular maintenance will extend the life of your air hose assembly and ensure safe operation.
- Daily Inspection: Before each use, visually inspect the entire length of the hose for any signs of wear, cuts, abrasions, bulges, or kinks. Check fittings for damage or corrosion.
- Leak Checks: Periodically check all connections for air leaks using soapy water, especially after any adjustments or re-connections.
- Cleaning: Clean the hose with mild soap and water as needed. Avoid using harsh chemicals or solvents that could degrade the nylon material. Rinse thoroughly and allow to air dry completely before storage.
- Storage: Store the hose in a coiled state, protected from UV light, extreme temperatures, and physical damage.
- Replacement: Replace the hose assembly immediately if any damage is found, or if it shows signs of excessive wear or degradation.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air Leak at Connection | Loose fitting, damaged O-ring/seal, damaged threads. | Tighten fitting, inspect and replace O-ring/seal, inspect threads for damage. |
| Air Leak Along Hose | Hose cut, abraded, or punctured. | Replace the entire hose assembly. Do not attempt to repair. |
| Hose Not Retracting Fully | Hose stretched beyond elastic limit, internal damage, or debris. | Ensure no obstructions. If permanent stretching or damage, replace the hose. |
8. Specifications
- Model: 022025
- Brand: Velvac
- Material: Nylon
- Color: Red and Blue
- Nominal Wall Thickness: 0.5 inches
- Item Length: 15 Feet
- Manufacturer: VELVAC
9. Warranty and Support
Velvac products are manufactured to high standards. For specific warranty information regarding your 022025 Coiled Nylon Air Hose Assembly, please refer to the warranty documentation included with your purchase or visit the official Velvac website. If you require technical assistance or have questions about your product, please contact Velvac customer support directly.
Velvac Contact Information: Please visit www.velvac.com for the latest contact details and support resources.
