Cometic C7096 Hi-Performance ATV Gasket/Seal User Manual

Product Overview

The Cometic C7096 Hi-Performance ATV Gasket/Seal is an essential component designed for high-performance ATV engines. This product is part of a comprehensive gasket and seal set, engineered to meet the rigorous demands of professional applications and serve as original equipment (OE) replacements. Each set is meticulously crafted to provide the correct number of gaskets required for a single application, ensuring a complete and effective seal. Manufactured in the U.S.A., these gaskets are built for durability and precise fitment.

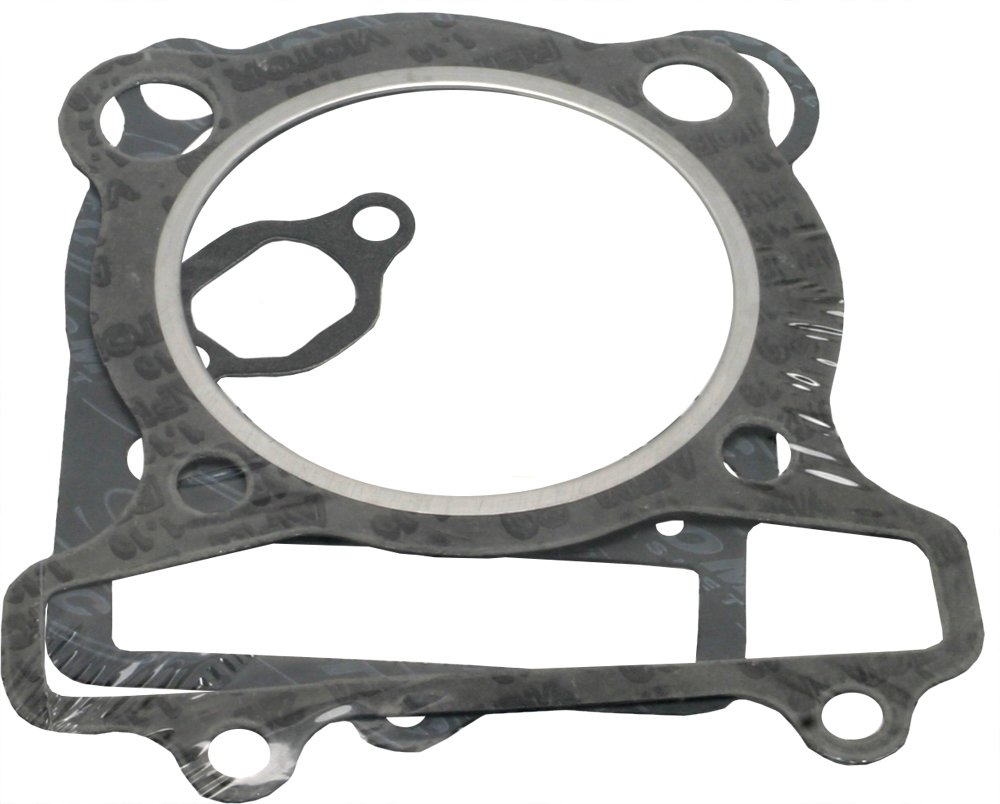

This image displays the Cometic C7096 Hi-Performance ATV Gasket/Seal kit, which includes various gaskets and seals designed for engine applications. The kit typically contains components for both top and bottom end engine sealing.

Key Features

• High-Performance Application: Gaskets and gasket sets are utilized by professionals in high-performance machines.
• OE Replacement Quality: Suitable for use as original equipment replacements worldwide.
• Complete Application Set: Each part contains the proper amount of gaskets for one application, ensuring all necessary components are included.
• Made in the U.S.A.: Manufactured domestically, ensuring quality control and adherence to standards.
• Comprehensive Kits: Available as top and bottom end gasket kits.
• Top End Kit Inclusions: Top end gasket kits specifically include correct base, head gasket, cylinder O-rings, and other top end specific O-rings or seals required for the top end assembly.

What's in the Box

• One (1) top end gasket set

Installation and Setup

Proper installation of engine gaskets is crucial for optimal performance and longevity. Always refer to your specific ATV's service manual for detailed, model-specific instructions and torque specifications.

1. Preparation: Ensure all mating surfaces on the engine components are thoroughly cleaned and free of old gasket material, dirt, oil, or any debris. Use a suitable gasket scraper and cleaner, taking care not to damage the surfaces.
2. Inspection: Carefully inspect the new gaskets for any damage or imperfections before installation. Verify that the new gaskets match the old ones in shape and size.
3. Placement: Position the gaskets correctly on the engine components. Some gaskets may require a thin, even coat of gasket sealant, while others are designed for dry installation. Consult your ATV's service manual for guidance on sealant application.
4. Assembly: Carefully reassemble the engine components, ensuring the gaskets remain properly seated.
5. Torque Specifications: Tighten all fasteners to the manufacturer's specified torque settings using a calibrated torque wrench. Follow the recommended tightening sequence (e.g., crisscross pattern) to ensure even pressure distribution across the gasket surface.
6. Post-Installation Check: After assembly, allow any sealants to cure as per their instructions. Check fluid levels and inspect for any immediate leaks before operating the ATV.

Note: Incorrect installation can lead to leaks, engine damage, and reduced performance. If you are unsure about any step, it is recommended to seek assistance from a qualified mechanic.

Operation and Usage

Once properly installed, the Cometic C7096 gasket set ensures a reliable seal between critical engine components, such as the cylinder head and cylinder, or various crankcase sections. This seal is vital for maintaining proper compression, preventing oil and coolant leaks, and ensuring the efficient operation of your ATV engine.

The gaskets are designed to withstand the high temperatures and pressures within the engine, providing a durable barrier against fluid and gas escape. Regular operation of your ATV after gasket replacement should be monitored for any signs of leakage or unusual engine behavior, especially during the initial break-in period.

Maintenance

While gaskets themselves do not typically require routine maintenance, their integrity is critical to engine health. Regular checks of your ATV's engine can help identify potential issues early.

• Visual Inspection: Periodically inspect the areas around the installed gaskets for any signs of oil, coolant, or exhaust gas leaks. Look for stains, drips, or residue.
• Fluid Levels: Regularly check engine oil and coolant levels. A consistent drop in levels without an obvious external leak could indicate an internal gasket issue.
• Engine Performance: Pay attention to any changes in engine performance, such as loss of power, overheating, or unusual noises, which could sometimes be related to gasket failure.
• Cleanliness: Keep the engine exterior clean to make it easier to spot any leaks.

Caution: Address any suspected leaks promptly to prevent further engine damage.

Troubleshooting

If you experience issues after installing the gasket set, consider the following common troubleshooting steps:

• Leaks (Oil/Coolant):
  • Cause: Improper torque, damaged gasket during installation, unclean mating surfaces, or incorrect gasket type.
  • Solution: Recheck torque specifications and sequence. If leaks persist, disassembly and re-installation with a new gasket may be necessary, ensuring surfaces are perfectly clean and flat.
• Loss of Compression:
  • Cause: Head gasket failure, often due to overheating or improper installation.
  • Solution: Perform a compression test. If low, the head gasket may need replacement. Ensure engine cooling system is functioning correctly to prevent future issues.
• Overheating:
  • Cause: Coolant leak from a gasket, or exhaust gases entering the cooling system (blown head gasket).
  • Solution: Inspect for external coolant leaks. Check for bubbles in the radiator or coolant reservoir, which can indicate a blown head gasket. Address the gasket issue and ensure the cooling system is bled of air.

Important: Always prioritize safety. If you are not comfortable performing these checks, consult a professional mechanic.

Specifications

Warranty and Support

Specific warranty information for the Cometic C7096 Hi-Performance ATV Gasket/Seal is not provided within this manual. For detailed warranty terms, conditions, and customer support, please refer to the official Cometic website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
