Kingston Brass CC2112 Bathtub Drain Stopper - Instruction Manual

1. Product Overview

The Kingston Brass CC2112 is a replacement bathtub drain stopper designed for use with the CC2092 drain assembly. This stopper features a durable rubber plug, a chain, and an attachment for secure placement and easy removal. It is finished in Polished Brass, offering both functionality and a classic aesthetic.

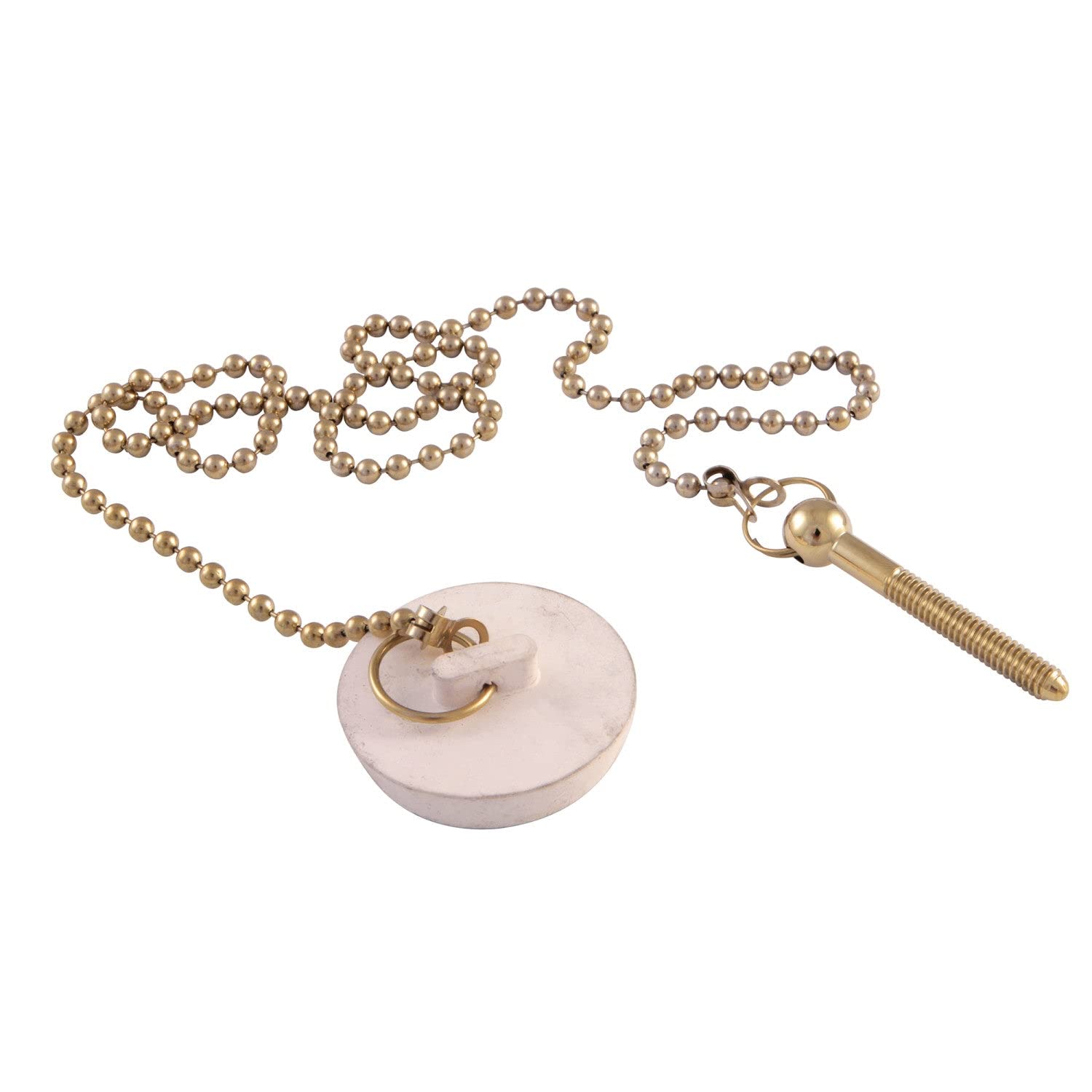

Image 1.1: Kingston Brass CC2112 Bathtub Drain Stopper with chain and attachment.

Key Features:

• Material: Fabricated from high-quality brass for the chain and attachment, with a durable rubber stopper.
• Chain Length: Approximately 29-1/8 inches (74 cm).
• Finish: Corrosion-resistant Polished Brass.
• Durability: Designed for long-lasting performance.
• Installation: Engineered for easy installation.

2. Included Components

Verify that all components are present before beginning installation:

• 1 x Rubber Drain Stopper
• 1 x Brass Chain (29-1/8" length)
• 1 x Chain Attachment Ring

Image 2.1: Close-up of the rubber drain stopper component.

Image 2.2: Close-up of the brass chain and attachment ring.

3. Setup and Installation

This stopper is designed for easy installation into compatible bathtub drain assemblies, specifically the Kingston Brass CC2092. No special tools are typically required.

1. Prepare the Drain: Ensure the bathtub drain opening is clean and free of debris. If replacing an old stopper, remove it completely.
2. Attach the Chain: Connect the chain attachment ring to the designated point on your bathtub overflow plate or drain assembly. This point is typically a small hole or loop designed for stopper chains.
3. Position the Stopper: Place the rubber stopper into the drain opening. The chain should hang freely, allowing the stopper to be easily lifted and lowered.
4. Test Functionality: Fill the tub with water to ensure the stopper creates a watertight seal. If leaks occur, adjust the stopper's position or inspect the drain opening for obstructions.

4. Operating Instructions

To use the Kingston Brass CC2112 stopper:

• To Seal the Drain: Gently press the rubber stopper into the drain opening until it forms a snug seal. The chain should remain accessible.
• To Open the Drain: Use the chain to lift the stopper out of the drain opening. Allow water to flow freely.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your stopper:

• Cleaning: Clean the polished brass chain and attachment regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Rubber Stopper Care: Periodically inspect the rubber stopper for signs of wear, cracking, or deterioration. Clean it with mild soap and water. If the rubber becomes stiff or damaged, it may affect the seal and require replacement.
• Chain Inspection: Check the chain and its attachment point for any signs of corrosion or damage. Ensure the chain is securely fastened.

6. Troubleshooting

If you encounter issues with your drain stopper, consider the following:

• Leaking Drain:
  • Ensure the rubber stopper is fully seated and centered in the drain opening.
  • Check the rubber stopper for any debris, hair, or damage that might prevent a proper seal. Clean or replace if necessary.
  • Verify that the drain opening itself is clean and free of irregularities.
• Chain Detachment:
  • Re-attach the chain to the stopper and the overflow plate/drain assembly. Ensure the attachment points are secure.
  • If the chain or attachment ring is broken, it may need to be replaced.

7. Specifications

8. Warranty and Support

Warranty: This Kingston Brass product is covered by a Ten Year Limited Warranty. This warranty covers defects in material and manufacturing under normal use and service. Please retain your proof of purchase for warranty claims.

Customer Support: For further assistance, technical support, or warranty inquiries, please contact Kingston Brass customer service. Refer to the official Kingston Brass website for current contact information.

Note: Specifications are subject to change without notice.
