Product Overview
The Sunbeam Mixmaster Dual Function Hand and Stand Mixer (Model FPSBHS0301) is a versatile kitchen appliance designed for various mixing tasks. It features a powerful 250-watt motor and 5 speed settings, allowing for precise control over your mixing. This unit can be used as a traditional stand mixer or detached for handheld operation, offering flexibility for different recipes and bowl sizes. It comes equipped with durable chrome beaters and dough hooks to handle a range of ingredients.

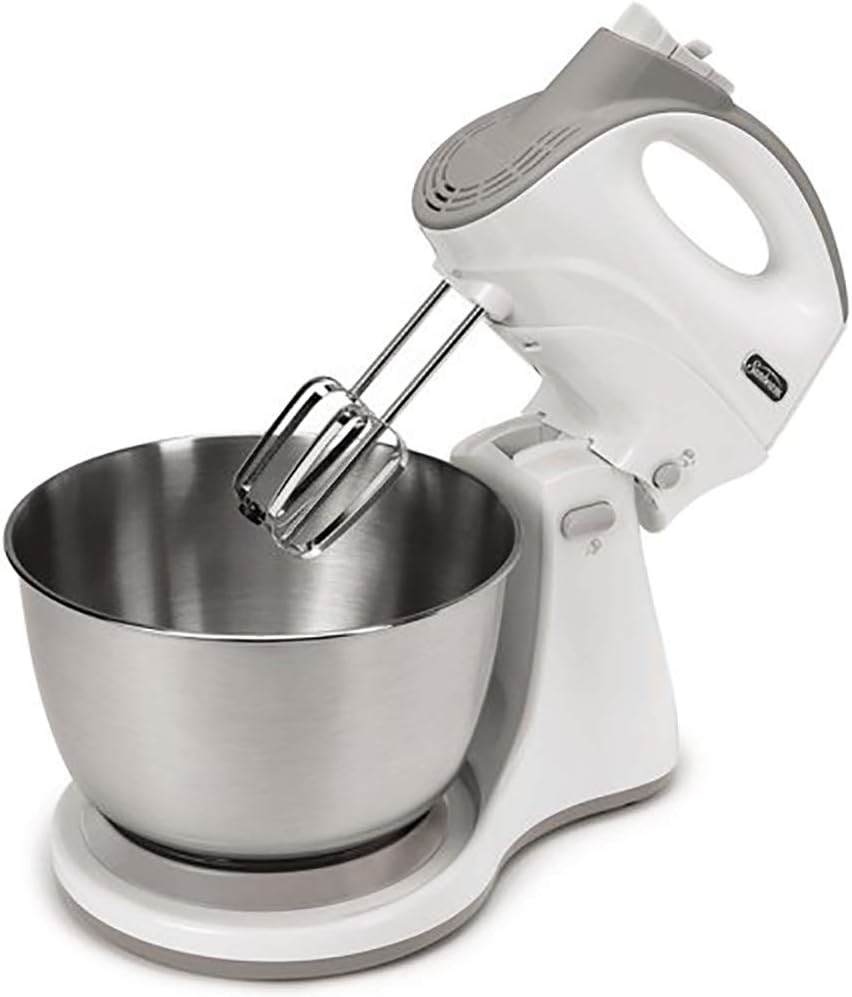

Image: Sunbeam Mixmaster Dual Function Hand and Stand Mixer in its stand configuration, featuring a white body with silver accents, a stainless steel mixing bowl, and chrome beaters.
Important Safety Information
- Read all instructions before using the appliance.
- To protect against electrical shock, do not immerse the mixer unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to prevent injury and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Do not use appliance for other than intended household use.
Parts and Features
Familiarize yourself with the components of your Sunbeam Mixmaster Dual Function Hand and Stand Mixer:
- Handheld Mixer Unit: The main motor unit with handle, speed control, and eject button.
- Mixer Stand: The base unit that holds the handheld mixer and the mixing bowl for hands-free operation.
- Stainless Steel Mixing Bowl: A 3-liter capacity bowl designed to fit securely on the mixer stand.
- Chrome Beaters: Standard attachments for general mixing tasks like batters and creams.
- Dough Hooks: Specialized attachments for kneading dough.
- Speed Control: A knob or slider on the handheld unit to select one of the 5 available speeds.
- Eject Button: Releases the attachments from the handheld unit.
- Mixer Release Button: Allows the handheld unit to be detached from the stand.
Image: All components of the Sunbeam Mixmaster Dual Function Hand and Stand Mixer, including the main unit, mixing bowl, beaters, and dough hooks.
Setup Instructions
Assembling the Stand Mixer
- Ensure the mixer is unplugged from the power outlet.
- Place the mixer stand on a clean, stable, and dry surface.
- If the handheld mixer unit is detached, align it with the stand's attachment point and press down firmly until it clicks into place.
- Place the stainless steel mixing bowl onto the rotating base of the stand, ensuring it is seated correctly.
- Insert the desired attachments (chrome beaters or dough hooks) into the openings on the underside of the handheld mixer unit. Push them in until they click securely. Ensure the attachments are fully engaged.
Image: Illustrates the process of detaching the handheld mixer from the stand by pressing the release button.
Operating Instructions
Using as a Stand Mixer
- Ensure the mixer is properly assembled as a stand mixer.
- Add your ingredients to the stainless steel mixing bowl.
- Plug the mixer into a standard electrical outlet.
- Select the desired speed using the speed control slider (1-5). Start with a lower speed to prevent splashing and gradually increase as needed.
- Allow the mixer to operate until ingredients are thoroughly combined. The bowl rotates automatically for even mixing.
- Once mixing is complete, set the speed control to '0' (off) and unplug the mixer.
- Press the mixer release button to tilt the handheld unit back, or detach it completely to remove the bowl and attachments.
Using as a Hand Mixer
- Ensure the mixer is unplugged.
- Press the mixer release button to detach the handheld unit from the stand.
- Insert the desired attachments (chrome beaters or dough hooks) into the openings on the underside of the handheld mixer unit. Push them in until they click securely.
- Plug the handheld mixer into a standard electrical outlet.
- Hold the mixer firmly and immerse the attachments into your ingredients.
- Select the desired speed using the speed control slider (1-5). Start with a lower speed and gradually increase.
- Move the mixer around the bowl to ensure all ingredients are thoroughly mixed.
- Once mixing is complete, set the speed control to '0' (off) and unplug the mixer.

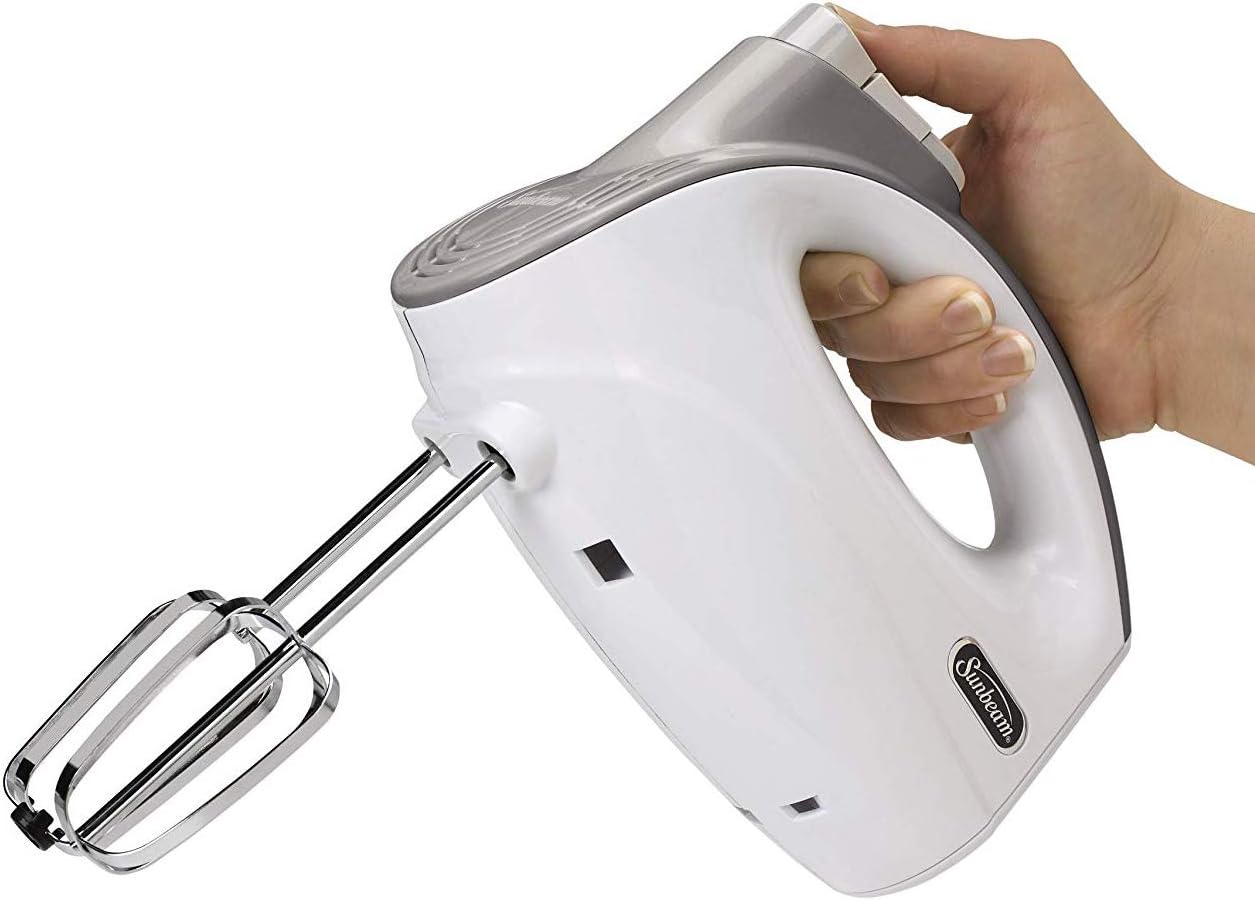

Image: The handheld mixer unit being used independently, showcasing its ergonomic design and attached beaters.
Attachment Ejection
To remove the attachments, ensure the mixer is unplugged and the speed control is set to '0'. Press the eject button located on the handheld unit. The attachments will release and can be safely removed.
Video: A demonstration of the Sunbeam Mixmaster in use, highlighting its features and ease of operation for various mixing tasks.
Maintenance and Cleaning
Cleaning the Mixer Unit
- Always unplug the mixer before cleaning.
- Wipe the exterior of the handheld mixer unit and the stand with a damp cloth. Do not immerse the motor unit in water or any other liquid.
- Do not use abrasive cleaners or scouring pads, as these may scratch the surface.
Cleaning Attachments and Bowl
- The stainless steel mixing bowl, chrome beaters, and dough hooks are not dishwasher safe.
- Wash attachments and the mixing bowl in warm, soapy water. Rinse thoroughly and dry immediately to prevent rust or water spots.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet not working; speed control not set. | Ensure the mixer is securely plugged into a working outlet. Check the speed control is set to a number other than '0'. |
| Attachments do not stay in place. | Attachments not fully inserted. | Push attachments firmly into the openings until they click securely. |
| Mixer is struggling with ingredients. | Too much mixture; mixture is too thick; speed setting is too low. | Reduce the amount of ingredients. Add liquid if the mixture is too thick. Increase the speed setting. |
Specifications
- Brand: Sunbeam
- Model Name: FPSBHS0301
- Color: White
- Wattage: 250 watts
- Speeds: 5
- Capacity: 3 Liters (bowl)
- Controls Type: Knob
- Material: Stainless Steel (bowl), Plastic (body)
- Product Dimensions: 20.8 x 15 x 10 inches
- Item Weight: 3 pounds
- Manufactured in: Canada
Warranty and Support
This Sunbeam product comes with a 2-year limited warranty. For detailed warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Sunbeam website. Do not attempt to repair the appliance yourself; contact authorized service personnel for assistance.
