Introduction
The Made by Zen Soto Aroma Diffuser is designed to create a peaceful and calming atmosphere in any space. This elegant and aesthetically pleasing device utilizes ultrasonic technology to produce a cool, scented mist, effectively spreading fragrance without heat or burning. It also functions as a mini humidifier and features a color-changing mood light that can cycle through a spectrum of colors, be set to a single color, or turned off for undisturbed sleep. The Soto diffuser is energy-efficient and includes an automatic shut-off feature for safety when the water level is low.
Important Safety Information
Please read all instructions carefully before use and retain for future reference.
- Always place the diffuser on a flat, stable, and water-resistant surface.
- Do not exceed the maximum water fill line indicated inside the water tank.
- Use only clean tap water or distilled water. Do not use hot water.
- Only use 100% pure essential oils. Do not use synthetic fragrances or corrosive liquids.
- Keep the diffuser out of reach of children and pets.
- Unplug the diffuser from the power outlet before cleaning, refilling, or moving it.
- Do not immerse the unit in water or any other liquid.
- Ensure the mist outlet is not blocked during operation.
- If the unit emits an unusual smell or sound, unplug it immediately.
Product Overview
The Soto Aroma Diffuser combines elegant design with advanced functionality to enhance your environment. It features ultrasonic technology for silent operation and efficient mist dispersion.

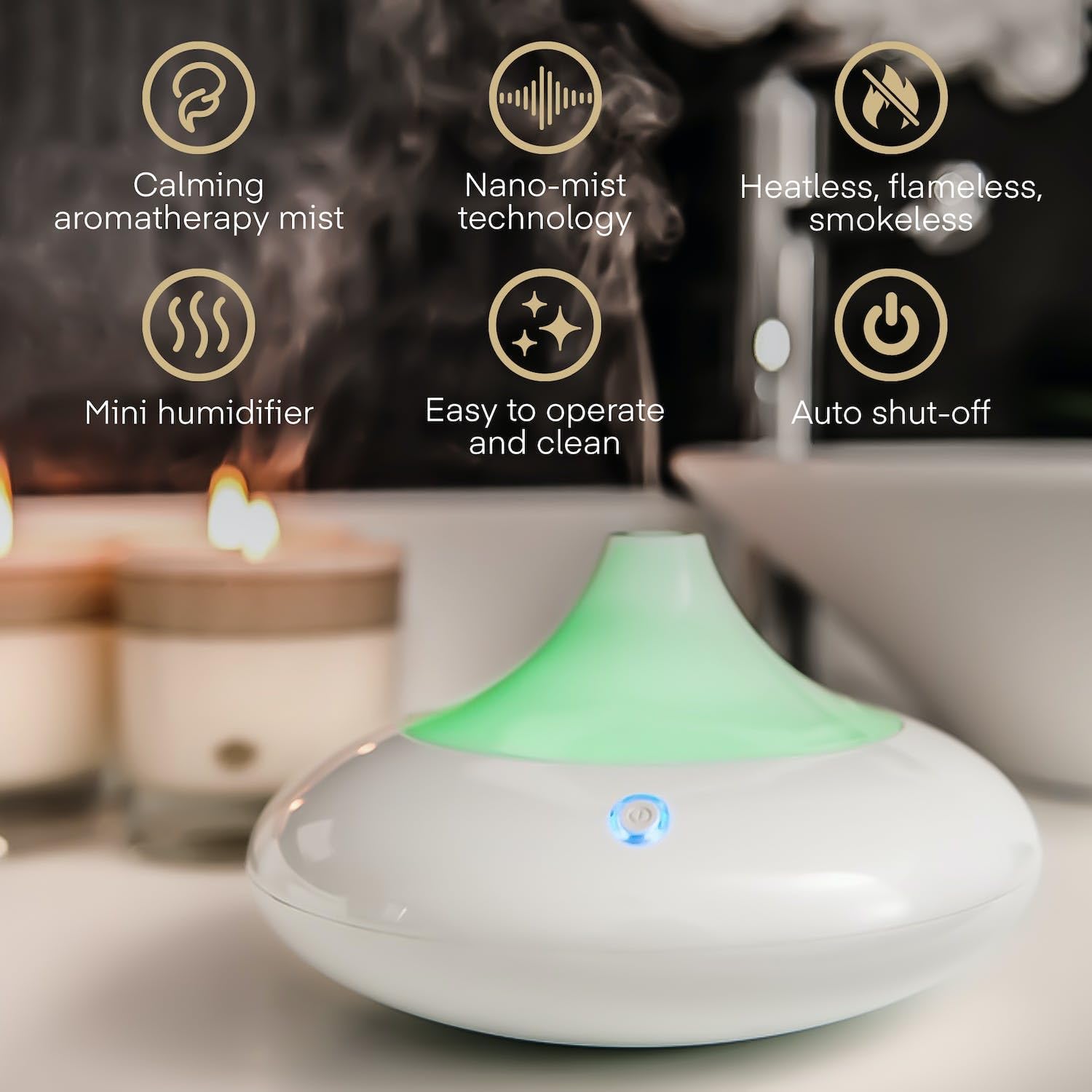

Image: Key features of the Soto Aroma Diffuser, including calming aromatherapy mist, nano-mist technology, heatless operation, mini humidifier function, ease of use and cleaning, and auto shut-off.
Image: Dimensions of the Soto Aroma Diffuser, showing a width of 180mm and a height of 107mm.
Setup
Follow these steps to set up your Soto Aroma Diffuser for first use:
- Placement: Place the diffuser on a firm, level, and water-resistant surface away from direct sunlight or heat sources.
- Remove Cover: Gently remove the outer ceramic cover and the inner plastic lid.
- Fill Water Tank: Using a measuring cup, fill the water tank with clean tap water or distilled water up to the maximum fill line. Do not overfill. The capacity is 80 milliliters.
- Add Essential Oils: Add 5-10 drops of your preferred 100% pure essential oil directly into the water tank. Adjust the number of drops to your desired fragrance intensity.
- Replace Covers: Securely replace the inner plastic lid, ensuring it is properly seated, then place the outer ceramic cover back on the base.
- Connect Power: Plug the power adapter into the DC socket at the base of the diffuser, then plug the adapter into a standard electrical outlet.
Image: The Soto Aroma Diffuser, ready for operation, showcasing its sleek white design and illuminated top.
Operating Instructions
Once set up, operating your Soto Aroma Diffuser is simple:
Power and Mist Control
- Press the power button (usually located on the front or bottom) once to turn on the mist and activate the color-changing light mode.
- Press the power button a second time to turn off the mist while keeping the light on.
- Press the power button a third time to turn off both the mist and the light.
Light Control
- When the diffuser is on and the light is cycling through colors, press and hold the power button to pause the light on the current color.
- Press and hold the power button again to resume the color-changing cycle.
- To turn off the light completely while the mist is still operating, refer to the specific model's button sequence, often a long press or a dedicated light button if available.
Image: The Soto Aroma Diffuser in operation, clearly showing the mist being diffused into the air and the ambient light feature.
Maintenance and Care
Regular cleaning ensures optimal performance and extends the lifespan of your diffuser.
Cleaning
- Daily Cleaning: After each use, unplug the diffuser and empty any remaining water from the tank. Wipe the inside of the tank with a clean, soft cloth.
- Weekly Cleaning: For a more thorough clean, especially if using strong essential oils, add a small amount of white vinegar (about 1 teaspoon) to the water tank and let it sit for 5-10 minutes.
- Gently wipe the ultrasonic disc (the small metal plate at the bottom of the tank) with a cotton swab dipped in vinegar. Do not scrub or use abrasive materials.
- Rinse the tank with clean water, being careful not to get water into the air outlet or control buttons.
- Wipe the exterior of the diffuser with a soft, damp cloth.
Storage
When not in use for an extended period, ensure the diffuser is clean and dry. Store it in a cool, dry place away from direct sunlight.
Image: A selection of Made by Zen essential oils, recommended for use with the diffuser to ensure optimal performance and longevity.
Troubleshooting
If you encounter any issues with your Soto Aroma Diffuser, please refer to the table below for common problems and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist or weak mist. | Insufficient water; water level too high; ultrasonic disc dirty; fan blocked. | Add water to the correct level; clean the ultrasonic disc; ensure fan is clear. |
| No light. | Light function off; power issue. | Press the light button (if applicable) or cycle power; check power connection. |
| Water leaking from base. | Overfilled; cover not properly seated; unit tilted. | Do not overfill; ensure covers are securely in place; place on a flat surface. |
| Unusual noise. | Insufficient water; foreign object in tank. | Add water; check and remove any foreign objects from the tank. |
Specifications
| Feature | Detail |
|---|---|
| Brand | madebyzen |
| Model Number | EW010WM |
| Color | White |
| Special Feature | Automatic Shut-Off |
| Power Source | Corded Electric |
| Capacity | 80 Milliliters |
| Floor Area Coverage | 15 Square Meters |
| Light Source Type | LED |
| Wattage | 12 watts |
| Item Weight | 680 Grams (1.5 pounds) |
| Product Dimensions | 7.09 x 7.09 x 4.21 inches |
Warranty and Support
Your Made by Zen Soto Aroma Diffuser is manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Made by Zen website.
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Made by Zen customer service through their official channels. Always provide your model number (EW010WM) and purchase date when seeking support.
