1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your SHIMANO HG-50/51 8-Speed Cassette Sprocket. Please read this manual thoroughly before use to ensure safe and optimal performance of your bicycle drivetrain. Retain this manual for future reference.
2. Safety Information
- Always wear appropriate safety gear, including eye protection, when working on your bicycle.
- Ensure your bicycle is stable and securely supported before beginning any installation or maintenance procedures.
- Use only genuine SHIMANO parts or SHIMANO-approved compatible components for repairs and replacements.
- If you are unsure about any installation or maintenance steps, consult a professional bicycle mechanic.
- Keep hands and clothing clear of moving parts during operation and maintenance.
3. Product Overview
The SHIMANO HG-50/51 is an 8-speed cassette sprocket designed for reliable and smooth shifting performance. It features a gear range of 11 to 32 teeth, suitable for various riding conditions. The cogs are nickel-plated for durability and corrosion resistance, and drilled to reduce weight.

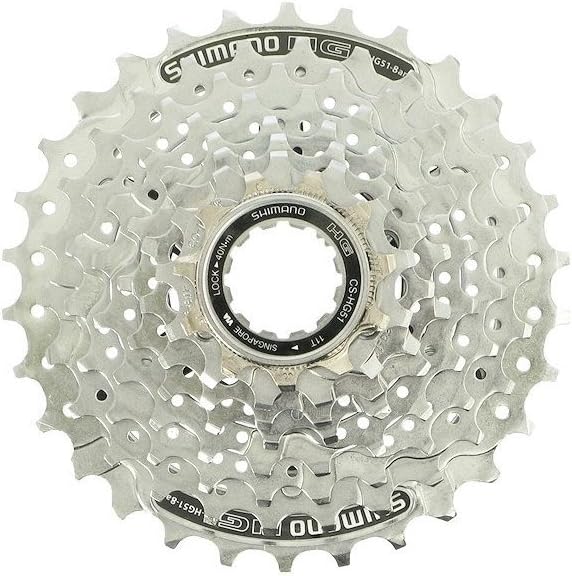

Figure 3.1: SHIMANO HG-50/51 8-Speed Cassette Sprocket. This image displays the SHIMANO HG-50/51 8-Speed Cassette Sprocket. It features multiple nickel-plated cogs of varying sizes, ranging from 11 to 32 teeth, designed for an 8-speed drivetrain. The central lockring, marked 'SHIMANO HG CS-HG51 LOCK 40N-m', secures the cassette to the freehub body.
Key features include:
- 8-Speed Compatibility: Designed for 8-speed drivetrains.
- Gear Range: 11-32 teeth for versatile gearing.
- Hyperglide (HG) Technology: Optimized tooth profiles for quick and responsive shifting.
- Durable Construction: Nickel-plated steel cogs for longevity.
- Steel Lockring: Securely fastens the cassette to the freehub.
4. Setup and Installation
4.1 Tools Required
- Cassette Lockring Tool (e.g., SHIMANO TL-LR15 or equivalent)
- Chain Whip
- Torque Wrench (recommended for precise installation)
- Shop Towels or Rags
- Grease (for freehub body)
4.2 Installation Steps
- Remove Rear Wheel: Carefully remove the rear wheel from your bicycle.
- Remove Old Cassette (if applicable):
- Engage the chain whip around one of the larger cogs to hold the cassette stationary.
- Insert the cassette lockring tool into the splines of the lockring.
- Turn the lockring tool counter-clockwise while holding the cassette with the chain whip to loosen and remove the lockring.
- Slide the old cassette cogs and spacers off the freehub body. Note their order for future reference or proper disposal.
- Prepare Freehub Body: Clean the freehub body thoroughly. Apply a thin layer of grease to the splines of the freehub body to prevent seizing and facilitate future removal.
- Install New Cassette:
- Align the wide spline on the cassette cogs with the wide spline on the freehub body.
- Slide the cogs and spacers onto the freehub body in the correct order (from largest to smallest, with spacers between cogs as supplied). Ensure all cogs are seated properly.
- Thread the new steel lockring onto the freehub body by hand, turning clockwise.
- Tighten the lockring using the cassette lockring tool. The recommended torque specification is 40 N·m (350 in. lbs.). Use a torque wrench for accurate tightening.
- Reinstall Rear Wheel: Carefully reinstall the rear wheel onto your bicycle, ensuring it is properly seated and secured.
- Adjust Derailleur: After installation, it is crucial to check and adjust your rear derailleur to ensure smooth and accurate shifting across all 8 speeds. Refer to your derailleur's instruction manual for adjustment procedures.
5. Operating Instructions
The SHIMANO HG-50/51 cassette works in conjunction with your rear derailleur and shifter to provide multiple gear ratios. Proper operation involves smooth and timely shifting.
- Shift Smoothly: Avoid shifting under heavy pedaling load. Ease off the pedals slightly during a shift to allow the chain to move smoothly between cogs.
- Anticipate Shifts: Shift into an appropriate gear before encountering a hill or change in terrain, rather than waiting until you are struggling.
- Avoid Cross-Chaining: Do not use the largest front chainring with the largest rear cog, or the smallest front chainring with the smallest rear cog. This extreme chain angle can cause premature wear and inefficient power transfer.
6. Maintenance
Regular maintenance will extend the life of your cassette and ensure consistent shifting performance.
- Cleaning: Regularly clean your cassette to remove dirt, grime, and old lubricant. Use a degreaser and a stiff brush, then rinse thoroughly.
- Lubrication: After cleaning, ensure your chain is properly lubricated. The cassette itself does not require lubrication, but a well-lubricated chain will reduce wear on the cogs.
- Inspection for Wear: Periodically inspect the teeth of the cogs for signs of wear, such as "shark fin" profiles (where teeth become pointed and hooked). Worn cogs can lead to poor shifting and chain skipping.
- Chain Replacement: A worn chain will accelerate cassette wear. Replace your chain regularly, typically every 1,000-3,000 miles depending on riding conditions and maintenance, or when a chain wear indicator tool shows significant stretch.
- Cassette Replacement: Replace the cassette when cogs show significant wear or when a new chain skips on the old cassette. It is often recommended to replace the chain and cassette together for optimal performance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chain skips on cogs | Worn cassette cogs, worn chain, improperly adjusted derailleur. | Inspect cassette and chain for wear; replace if necessary. Adjust rear derailleur. |
| Poor or slow shifting | Dirty or worn chain/cassette, misaligned derailleur hanger, stretched shifter cable, improperly adjusted derailleur. | Clean and lubricate drivetrain. Check derailleur hanger alignment. Replace shifter cable. Adjust rear derailleur. |
| Noise from cassette area | Dirty drivetrain, loose cassette lockring, worn components. | Clean and lubricate drivetrain. Check and tighten cassette lockring to 40 N·m. Inspect for worn parts. |
8. Specifications
- Model: SHIMANO HG-50/51
- Part Number: ECSHG518132
- Speeds: 8-Speed
- Gear Combination: 11-32 Teeth
- Material: Nickel-plated steel cogs
- Lockring: Steel
- Compatibility: SHIMANO compatible 8-speed freehubs
- Recommended Torque (Lockring): 40 N·m (350 in. lbs.)
- Approximate Package Weight: 14.81 ounces (420 grams)
- Approximate Package Dimensions: 6.3 x 6.14 x 2.44 inches (16 x 15.6 x 6.2 cm)
9. Warranty and Support
SHIMANO products are manufactured to high standards and are typically covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the official SHIMANO website or contact your local SHIMANO dealer.
For technical support, product inquiries, or to locate an authorized service center, please visit the official SHIMANO website or contact their customer service department. Always provide your product model number (HG-50/51) and part number (ECSHG518132) when seeking support.
SHIMANO Official Website: www.shimano.com
