Wahl Groomsman Pro All-in-one Rechargeable Grooming Kit User Manual

1. Introduction

The Wahl Groomsman Pro All-in-one Rechargeable Grooming Kit is a versatile system designed for head and total body grooming. This manual provides essential information for the proper use, maintenance, and care of your grooming kit.

Key Features:

• Head and total body grooming capabilities.
• High carbon steel blades, precision ground to stay sharp longer.
• Designed for defining various styles.
• Functions include trimming, shaving, detailing, outlining, grooming, and touch-ups.
• Made for use in USA electrical outlets only. Not for international use.

2. Package Contents

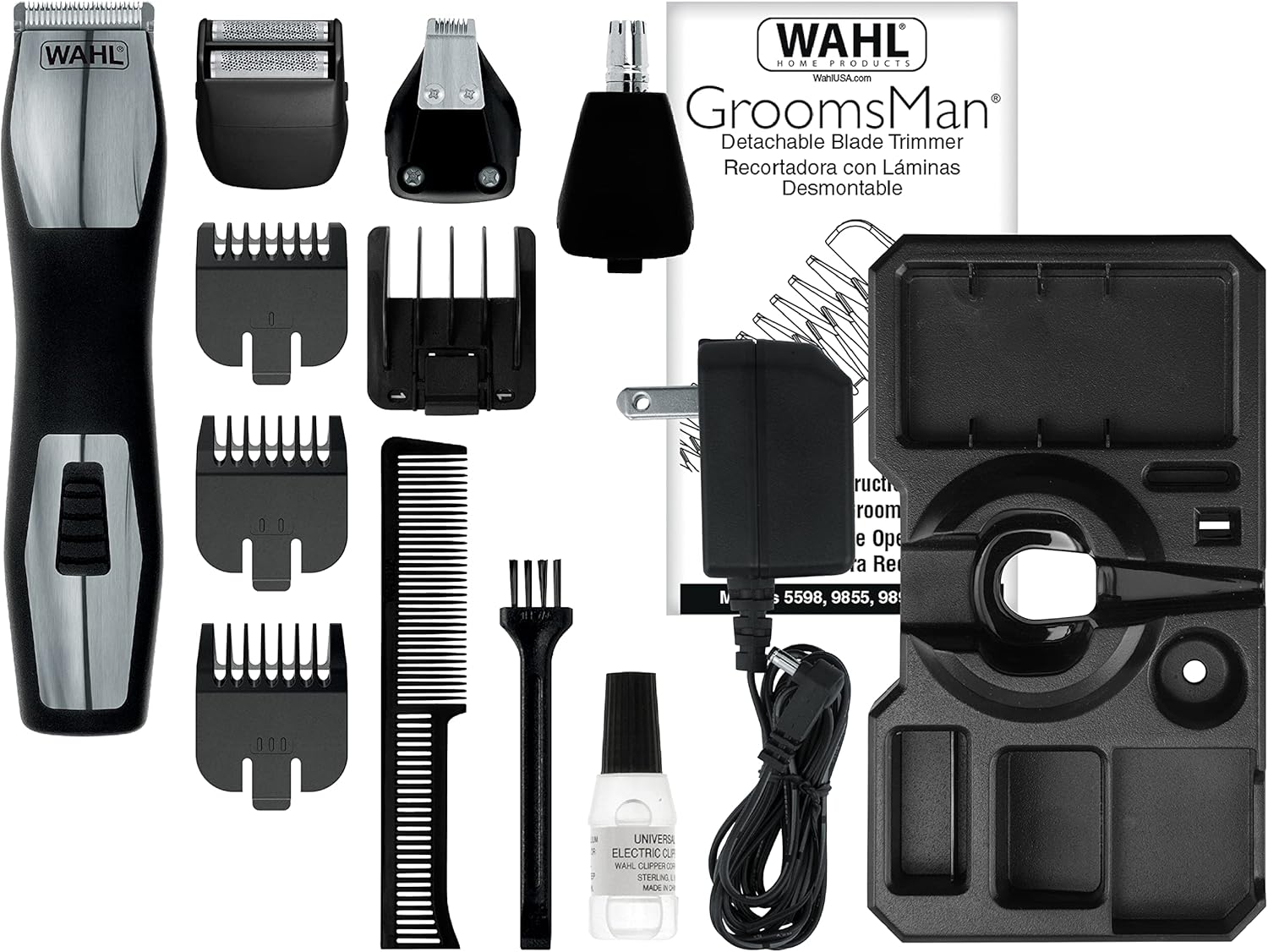

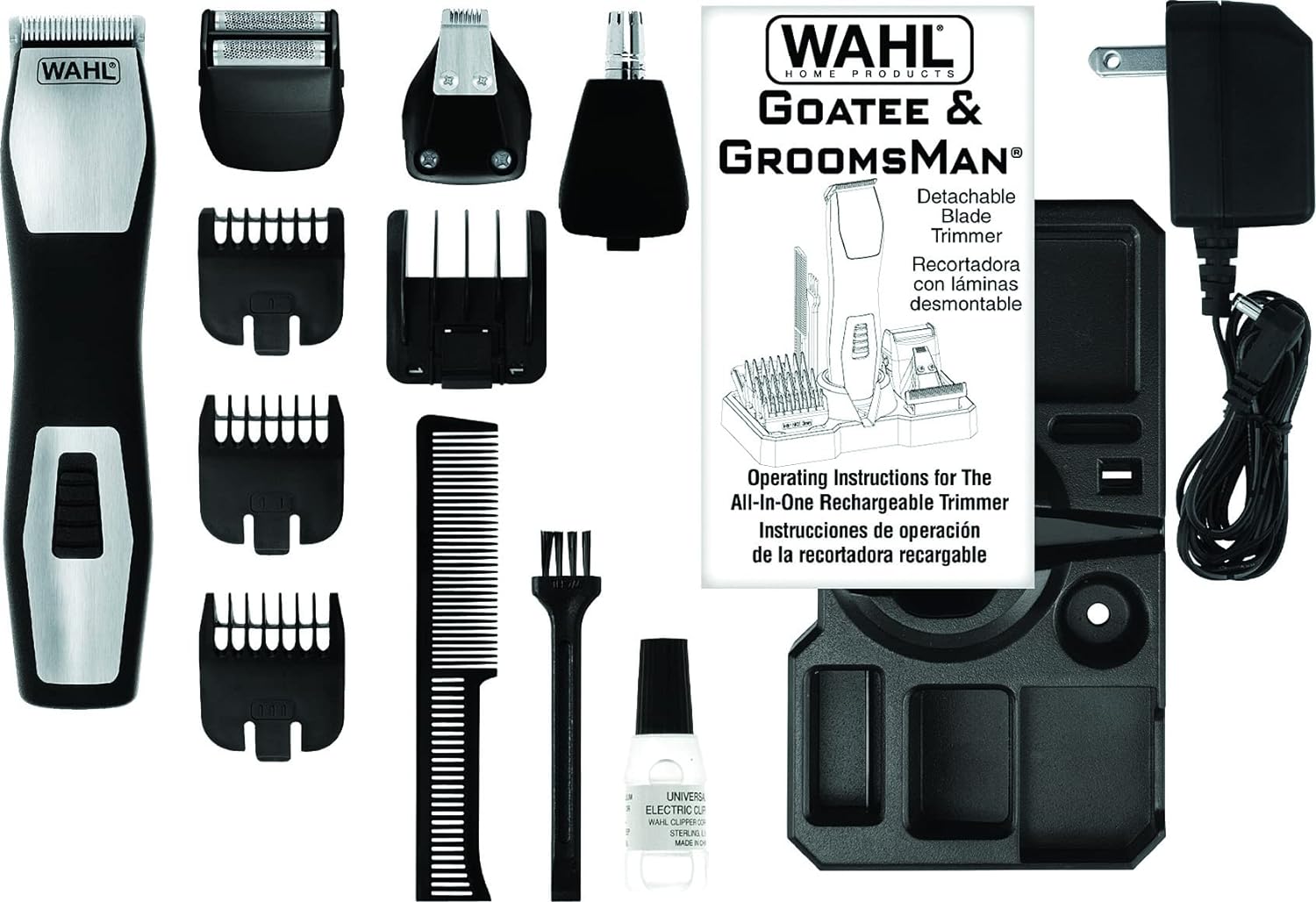

Your Wahl Groomsman Pro All-in-one Rechargeable Grooming Kit includes the following components:

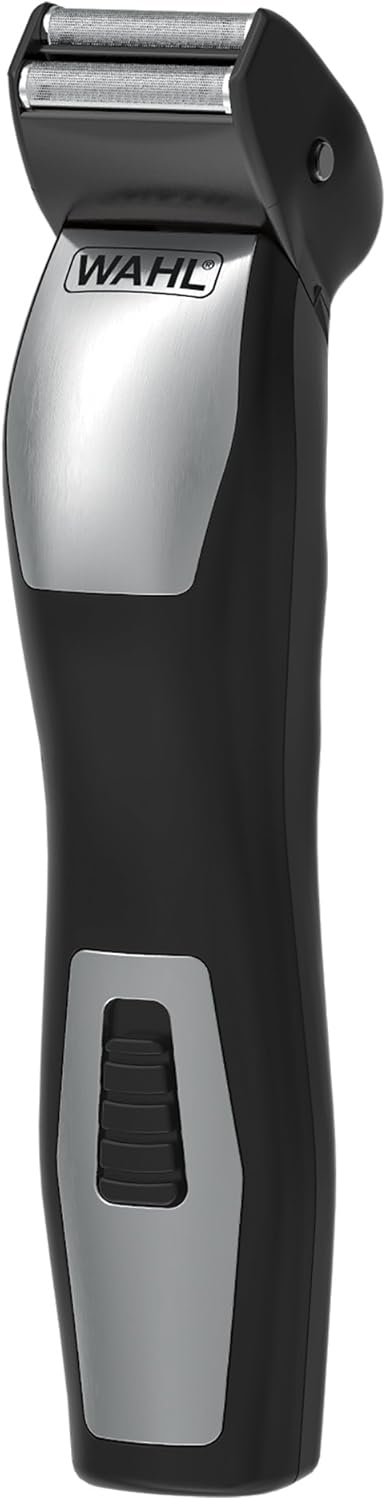

• Rechargeable Trimmer Unit
• Trimmer Head
• Detail Head
• Dual Shaver Head
• T-Blade
• 6-Position Guide
• 3 Standard Trimmer Guides
• 3 T-Blade Guides
• Comb
• Cleaning Brush
• Blade Oil
• Storage Base
• Charger
• English/Spanish Instructions/Styling Guide

3. Setup

3.1. Charging Your Trimmer

Before first use, fully charge your Wahl Groomsman Pro trimmer for 12-16 hours. Subsequent charges should take approximately 3-5 hours. Ensure the trimmer is turned off before connecting it to the charger. The charging indicator light will illuminate during charging.

3.2. Attaching and Detaching Heads

To change the trimmer head, ensure the unit is turned off. Gently pull the currently attached head upwards to remove it. Align the desired head with the trimmer body and press down firmly until it clicks into place. Always handle heads by their base to avoid damaging the blades.

4. Operating Instructions

4.1. General Operation

Turn the trimmer on by pressing the power button. For optimal performance, ensure the blades are clean and oiled before each use. Always trim against the direction of hair growth for a cleaner cut.

4.2. Using Guide Combs

Select the appropriate guide comb for your desired hair length. Snap the comb securely onto the trimmer head. Start with a longer comb if you are unsure of the desired length, and gradually switch to shorter combs if needed.

4.3. Trimmer Head

Ideal for general trimming of facial hair, sideburns, and necklines. Use smooth, even strokes for consistent results.

4.4. Detail Head

Designed for precise lines, intricate designs, and cleaning up edges around the beard, mustache, and hairline.

4.5. Dual Shaver Head

Provides a close, smooth shave for small areas or touch-ups. Use gentle pressure and short strokes.

4.6. T-Blade

The wider T-blade is suitable for larger areas, body grooming, and creating sharp, clean lines.

5. Maintenance

5.1. Cleaning

After each use, turn off the trimmer and remove any attached guide combs. Use the provided cleaning brush to brush away loose hairs from the blades and trimmer body. For a more thorough cleaning, the blades can be rinsed under running water, but ensure the trimmer unit itself does not get wet. Allow blades to air dry completely before reattaching or storing.

5.2. Oiling Blades

To maintain optimal cutting performance and blade longevity, it is crucial to oil the blades regularly. After cleaning, apply 2-3 drops of Wahl blade oil across the top of the blades. Turn the trimmer on for a few seconds to allow the oil to distribute evenly. Wipe off any excess oil with a soft cloth. For best results, oil blades once a month or after every few uses.

6. Troubleshooting

• Trimmer not turning on: Ensure the unit is fully charged. Check that the power button is pressed firmly.
• Poor cutting performance: Blades may be dull or clogged with hair. Clean and oil the blades as per maintenance instructions. Ensure the correct head is securely attached.
• Trimmer runs slowly: This may indicate a low battery. Recharge the unit.
• Excessive noise or vibration: Blades may not be properly aligned or may require oiling. Refer to maintenance section.

7. Specifications

8. Safety Information

• Made for use in USA electrical outlets only. Not for international use.
• Do not immerse the trimmer unit in water.
• Keep out of reach of children.
• Always turn off and unplug the trimmer before cleaning or maintenance.

9. Warranty and Support

This Wahl Groomsman Pro All-in-one Rechargeable Grooming Kit comes with a 5-year limited warranty. For warranty claims, technical support, or replacement parts, please contact Wahl Customer Service directly. Refer to the contact information provided in the original product packaging or visit the official Wahl website.
