1. Product Overview
The ENGEL MD14F-D is a portable refrigerator/freezer designed for efficient cooling of beverages, food, and frozen items. Its robust design ensures reliable performance, making it suitable for various applications, including vehicle use. This unit is capable of maintaining low temperatures to preserve freshness.
Key Features:
- 14 Liter Capacity
- DC12V Power Source
- Swing Compressor Cooling System
- Dial-type Temperature Control with Automatic Adjustment
- Automatic Defrost System
- Includes 3m Power Cord and Shoulder Strap
Image: The ENGEL MD14F-D Portable Refrigerator/Freezer, showcasing its compact design.
2. Safety Information
Please read all safety warnings and instructions carefully before operating the unit to prevent injury or damage.
- This unit is designed exclusively for 12V vehicle power sources. Do not connect it to 24V power systems.
- The MD14F-D functions solely as a refrigerator/freezer. It cannot be used as a warming unit.
- For home use, an optional AC adapter (model 0690-080-0m00) is required and must be purchased separately.
- When using a DCDC converter for 24V vehicles (e.g., trucks), only use the manufacturer-recommended converter (model ED-100). Use of non-recommended converters may lead to malfunctions and void the warranty.
- Ensure the power cord is correctly connected and free from debris in the cigarette lighter socket to prevent overheating.
- Do not block the ventilation windows to ensure proper cooling and prevent overheating.
- Avoid placing hot items directly into the unit, as this will reduce cooling efficiency.
- Ensure the door is completely closed to maintain internal temperature.
Image: Close-up view of internal warning labels and specifications inside the unit's lid.
3. Setup and Installation
3.1 Unpacking
Carefully remove the refrigerator/freezer from its packaging. Inspect the unit for any signs of damage. Retain the packaging for future transport or storage.
Image: The product packaging for the ENGEL MD14F-D, showing model number and features.
3.2 Placement
Place the unit on a stable, level surface. Ensure adequate ventilation around the unit, especially near the ventilation windows, to allow for proper heat dissipation. Avoid direct sunlight exposure.
3.3 Power Connection
- Connect the provided DC power cord (cigarette lighter plug) to the power input on the unit.
- For vehicle use, insert the cigarette lighter plug into your vehicle's 12V cigarette lighter socket. Ensure the socket is clean and free of debris.
- For home use, connect the optional AC adapter (0690-080-0m00) to the unit and then to a standard AC100V household outlet.
Image: Rear view of the unit, highlighting the DC12V power input and temperature control dial.
4. Operating Instructions
4.1 Powering On/Off
Once connected to a power source, the unit will power on. The power indicator lamp will illuminate. To turn off the unit, disconnect the power cord or set the temperature control dial to "OFF".
4.2 Temperature Control
The MD14F-D features a dial-type temperature controller located on the unit. Rotate the dial to select your desired cooling level.
- Dial Position 1: Approximately 5°C (for general refrigeration)
- Dial Position 3: Approximately -10°C (for light freezing)
- Dial Position 5: Approximately -18°C (for deep freezing of frozen foods)
- OFF: Stops operation and initiates defrosting.
Note: The actual internal temperature may vary depending on the ambient temperature and frequency of door openings. Lower ambient temperatures will result in colder internal temperatures.
Image: A page from the Japanese instruction manual detailing parts, specifications, and basic usage, including power connection.

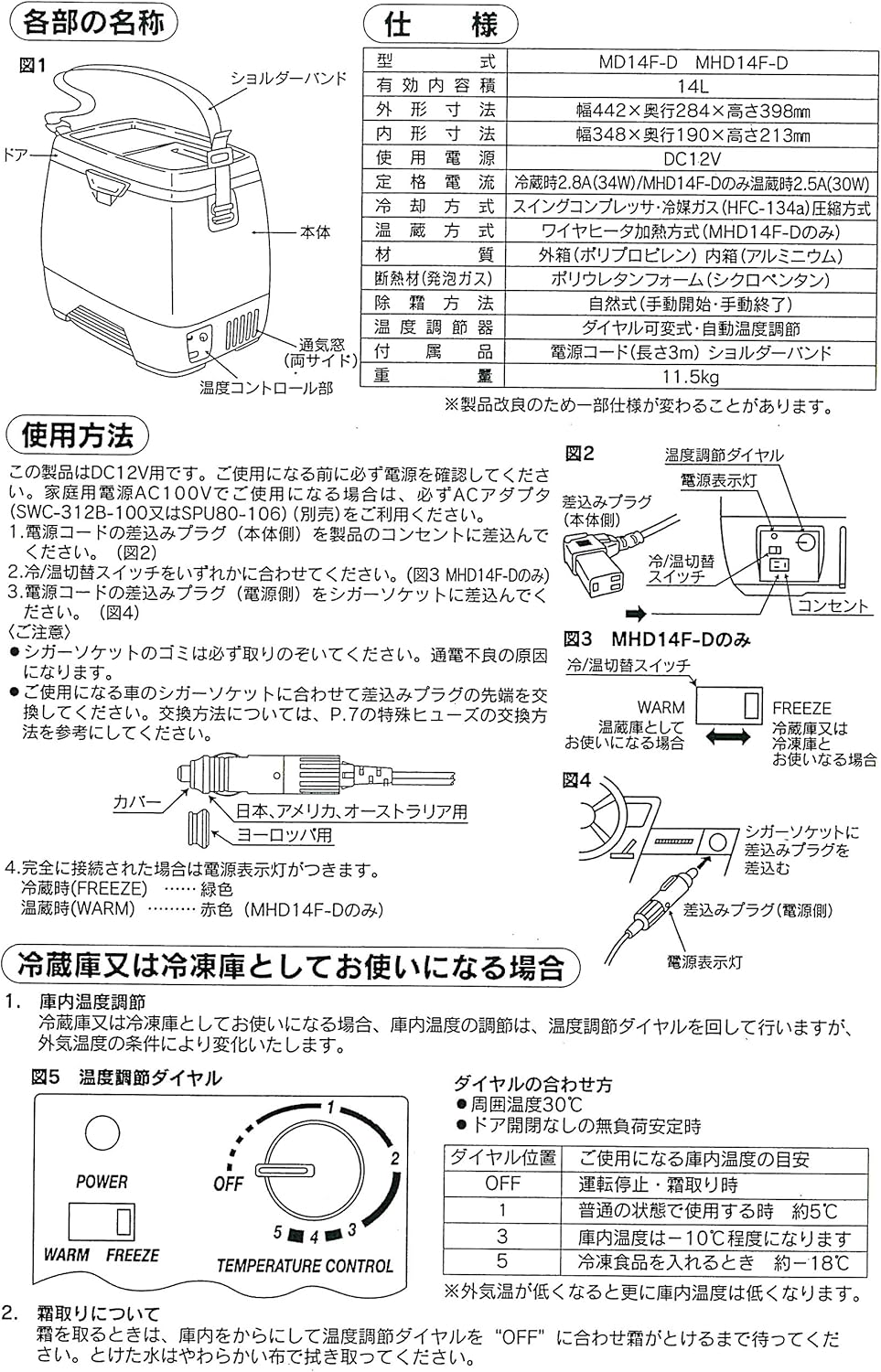

Image: A page from the Japanese instruction manual illustrating the temperature control dial settings and troubleshooting steps.
4.3 Loading the Unit
Place items inside the unit, ensuring they do not block the internal air circulation or prevent the door from closing completely. For optimal cooling, pre-chill items before placing them in the unit.
Image: The ENGEL MD14F-D with its lid open, showing beverages stored inside.
5. Maintenance
5.1 Cleaning
Clean the interior and exterior of the unit regularly with a soft cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
5.2 Defrosting
When ice accumulates inside the unit, set the temperature control dial to "OFF". Remove all contents and allow the ice to melt naturally. Wipe away any melted water with a soft cloth. Do not use sharp objects to remove ice, as this can damage the unit.
5.3 Storage
If storing the unit for an extended period, ensure it is clean, dry, and the door is slightly ajar to prevent odors and mildew.
6. Troubleshooting
If you encounter issues with your MD14F-D, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on |
|
|
| Unit is not cooling |
|
|
| Loud noise during operation |
|
|
| Water leakage |
|
|
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | MD14F-D |
| Brand | ENGEL |
| Capacity | 14 Liters |
| External Dimensions (D x W x H) | 28.4 cm x 39.8 cm x 44.2 cm |
| Internal Dimensions (D x W x H) | 19.0 cm x 34.8 cm x 21.3 cm |
| Power Source | DC12V |
| Rated Power Consumption | 2.8A (34W) |
| Cooling Method | Swing Compressor / Refrigerant Gas Compression (HFC-134a) |
| Refrigerant Gas | HFC-134a |
| Insulation Material | Polyurethane Foam |
| Defrost System Type | Automatic |
| Temperature Control | Dial Variable Type, Automatic Temperature Adjustment |
| Weight | 11.5 kg (25.35 lbs) |
| Color | White, Gray |
| Number of Doors | 1 |
| Door Opening | Right-hand opening |
| Included Components | Power cord (3m), Shoulder strap |
Note: Specifications are subject to change due to product improvements.
Image: The ENGEL MD14F-D unit displayed with its included power cord and shoulder strap.
8. Warranty and Support
8.1 Warranty Information
This product comes with a one-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
Important: The use of AC adapters other than the dedicated or manufacturer-recommended ones (0690-080-0m00 for home use, ED-100 for 24V vehicle DCDC conversion) may cause malfunctions and will void your warranty.
8.2 Customer Support
For technical assistance, service, or warranty inquiries, please contact your retailer or the manufacturer, Sawafuji Electric Co., Ltd. Refer to the contact information provided with your purchase documentation.
