1. Product Overview
The Julien Kitchen Sink Drain, Model 100082, is a durable and functional component designed for kitchen sinks. It features a 3-1/2 inch diameter complete strainer and is constructed from heavy-duty forged brass with a satin nickel finish. This drain assembly is engineered to effectively prevent debris from entering the plumbing system while complementing the aesthetic of Julien kitchen sinks.

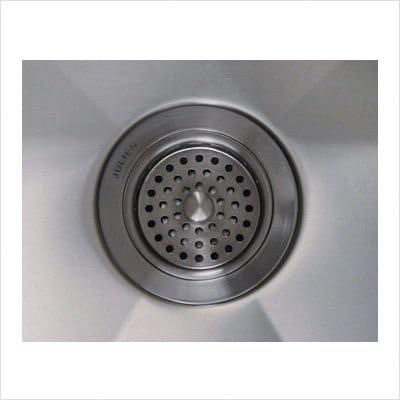

Image 1: Close-up view of the Julien Kitchen Sink Drain, Model 100082, showcasing its satin nickel finish and perforated strainer basket. The drain is installed in a stainless steel sink.
2. Setup and Installation
Proper installation ensures optimal performance and prevents leaks. If you are unsure about any step, consult a qualified plumber.
2.1 Tools and Materials Required:
- Plumber's Putty or Silicone Sealant
- Adjustable Wrench or Basin Wrench
- Screwdriver (if applicable for specific drain types)
- Clean Cloths
2.2 Installation Steps:
- Prepare the Sink Opening: Ensure the sink drain opening is clean and free of old putty or debris.
- Apply Sealant: Roll a thin rope of plumber's putty or apply a bead of silicone sealant around the underside lip of the drain flange.
- Insert Drain Body: From the top of the sink, insert the drain body into the sink opening, pressing firmly to create a seal with the putty/sealant.
- Assemble Underside Components: From underneath the sink, slide the rubber gasket, friction washer, and then the locknut onto the threaded portion of the drain body.
- Tighten Locknut: Hand-tighten the locknut, then use an adjustable wrench or basin wrench to tighten it securely. Do not overtighten, as this can damage the sink or drain.
- Connect to P-Trap: Connect the drain tailpiece to your existing P-trap assembly. Ensure all connections are hand-tightened and then secured with a wrench.
- Test for Leaks: Fill the sink with water and then drain it, carefully checking all connections for any signs of leaks.
3. Operating Instructions
The Julien Kitchen Sink Drain is designed for simple operation to manage water flow and prevent large debris from entering your plumbing.
- Strainer Basket: The removable perforated basket is designed to catch food particles and other debris. Ensure it is properly seated in the drain opening during normal use.
- Removing Debris: Periodically lift the strainer basket out of the drain to empty any accumulated debris into a waste bin.
- Water Flow: The drain allows water to pass through freely while the strainer basket is in place, preventing clogs in your plumbing system.
4. Maintenance and Care
Regular cleaning and proper care will maintain the appearance and functionality of your Julien Kitchen Sink Drain.
- Daily Cleaning: After each use, rinse the drain and strainer basket with warm water to remove food residue.
- Deep Cleaning: For a more thorough cleaning, remove the strainer basket and wash it with mild dish soap and a soft brush or sponge. Rinse thoroughly.
- Finish Care: To preserve the satin nickel finish, wipe the visible parts of the drain with a soft, damp cloth. Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., bleach, ammonia-based cleaners) as these can damage the finish and material.
- Material Compatibility: The drain is made of brass and stainless steel. Ensure any cleaning products used are safe for these materials.
5. Troubleshooting
Refer to the following common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Draining | Strainer basket clogged with debris. | Remove and clean the strainer basket. Check the P-trap for blockages if the issue persists. |
| Water Leaks Around Drain | Loose connections or improper sealant application during installation. | Ensure the locknut underneath the sink is securely tightened. If leaks persist, disassemble, reapply plumber's putty/sealant, and reassemble. |
| Finish Discoloration | Exposure to harsh chemicals or abrasive cleaning materials. | Use only mild soap and water for cleaning. Avoid abrasive cleaners. Discoloration from chemical exposure may be permanent. |
6. Specifications
| Model Number | 100082 |
| Finish | Satin Nickel |
| Material | Brass, Stainless Steel |
| Overall Dimensions | 3-1/2 inches (Diameter) |
| Item Weight | 2 pounds |
| Construction | Heavy Duty forged brass body |
| Special Features | Center Post, Deep brass strainer basket |
7. Warranty Information
The manufacturer provides a 1-year limited warranty following the purchase date for the drain assembly. This warranty covers defects in material and workmanship. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Julien warranty documentation or contact customer support.
8. Support
If you encounter issues not covered in this manual or require further assistance, please contact Julien customer support. Have your product model number (100082) and purchase information ready when contacting support.
Note: Contact information for Julien is not provided in this document. Please refer to the product packaging or the official Julien website for current contact details.
