1. Product Overview
This manual provides instructions for the installation and care of The Original Big Wheel 16" Front Wheel Replacement Part. This product is designed to replace the front wheel of your existing Original Big Wheel ride-on toy, ensuring continued functionality and enjoyment.

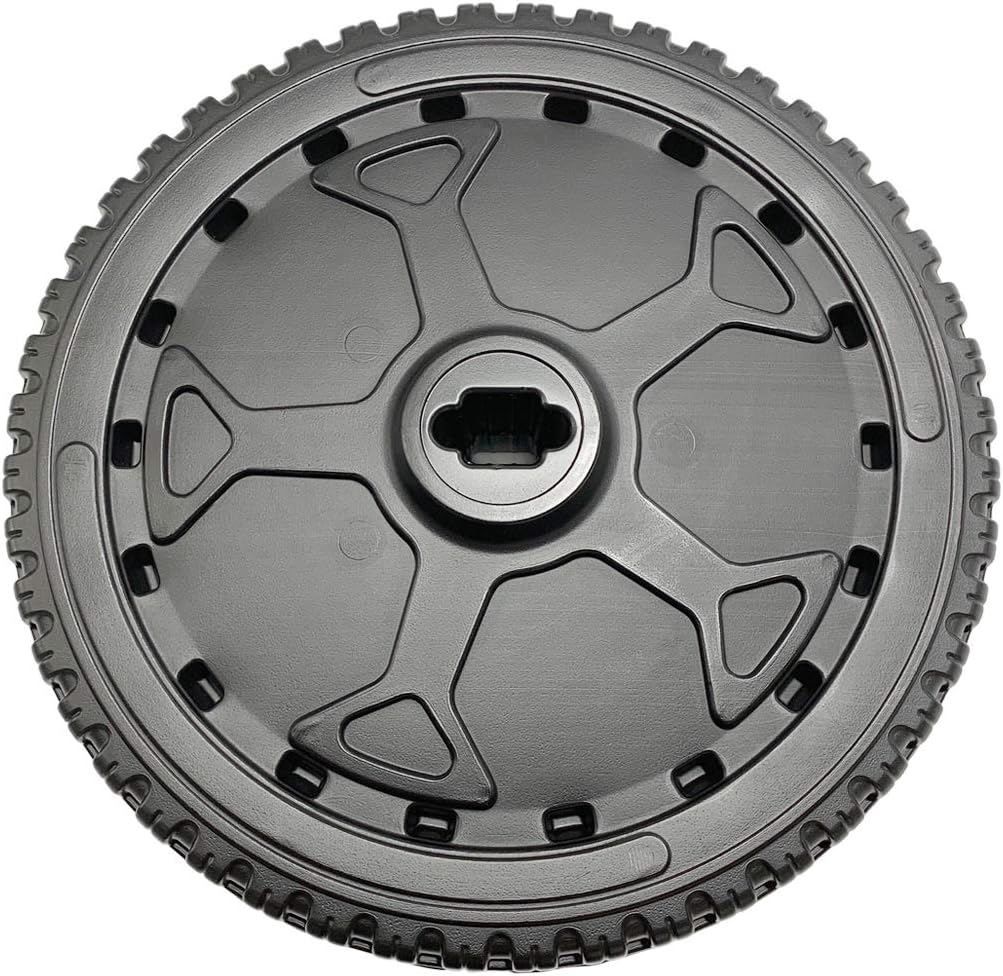

Image: The 16-inch black front wheel replacement part for The Original Big Wheel. It features a central hub for axle connection and a textured outer rim for traction.
2. Setup and Installation
Before beginning installation, ensure you have all necessary components. This replacement wheel is designed for direct fitment on The Original Big Wheel ride-on toy.
Required Tools (Not Included):
- Appropriate wrench or pliers for removing existing fasteners.
- New pedal washer (essential for secure installation, sold separately).
Installation Steps:
- Carefully remove the old front wheel from the Big Wheel frame. This typically involves removing a retaining clip or nut from the axle.
- Remove the old pedal washer if present. A new pedal washer is required for proper installation and secure fitment of the new wheel.
- Align the new 16" front wheel with the axle on the Big Wheel frame.
- Slide the wheel onto the axle, ensuring it is fully seated.
- Install the new pedal washer onto the axle, securing the wheel in place.
- Re-attach any retaining clips or nuts to firmly secure the wheel. Ensure all fasteners are tightened appropriately to prevent wobbling during use.
- Test the wheel's rotation and stability before allowing use.
Note: The pedal washer is a critical component for securing the wheel and is not included with this replacement part. Please acquire a new pedal washer separately for a complete and safe installation.
3. Operating Instructions
Once installed, the 16" front wheel functions identically to the original. It is designed to provide smooth rotation and reliable performance for the Big Wheel ride-on toy. Ensure the wheel spins freely and is securely attached before each use.
4. Maintenance
Regular maintenance helps prolong the life of your replacement wheel and ensures safe operation.
- Cleaning: Wipe the wheel clean with a damp cloth as needed. Avoid harsh chemicals that may damage the plastic.
- Inspection: Periodically inspect the wheel for signs of wear, cracks, or damage. Check that the wheel remains securely attached to the axle and that all fasteners are tight.
- Storage: Store the Big Wheel in a cool, dry place away from direct sunlight when not in use to prevent material degradation.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheel wobbles or is loose. | Improper installation; missing or worn pedal washer; loose fasteners. | Ensure the new pedal washer is installed. Tighten all retaining clips/nuts. Re-install the wheel if necessary, following Section 2. |
| Wheel does not spin freely. | Obstruction; axle misalignment; excessive tightening of fasteners. | Check for debris around the axle. Ensure the wheel is properly aligned on the axle. Loosen fasteners slightly if overtightened, then re-tighten to a secure but not restrictive level. |
| Wheel shows premature wear. | Heavy use; abrasive surfaces; manufacturing defect. | This is a replacement part for wear and tear. If wear is unusually rapid, consider the surfaces the Big Wheel is used on. Contact support if a manufacturing defect is suspected. |
6. Specifications
- Brand: The Original Big Wheel
- Model Number: RP-WL-F-BW-OG
- Wheel Size: 16 Inches
- Item Diameter: 16 Inches
- Vehicle Service Type: Ride-on Toy
- Manufacturer: www.OriginalBigWheel.us
- Item Dimensions (LxWxH): 16 x 4 x 16 inches
- Package Weight: 0.82 Kilograms
- Date First Available: June 16, 2010
7. Warranty and Support
For questions regarding this product, installation assistance, or warranty information, please contact The Original Big Wheel customer support.
Manufacturer Website: www.OriginalBigWheel.us
Please refer to the manufacturer's official website or product packaging for the most current warranty terms and contact information.
